Summary of Contents for Riptide DoggySwim Canine S490

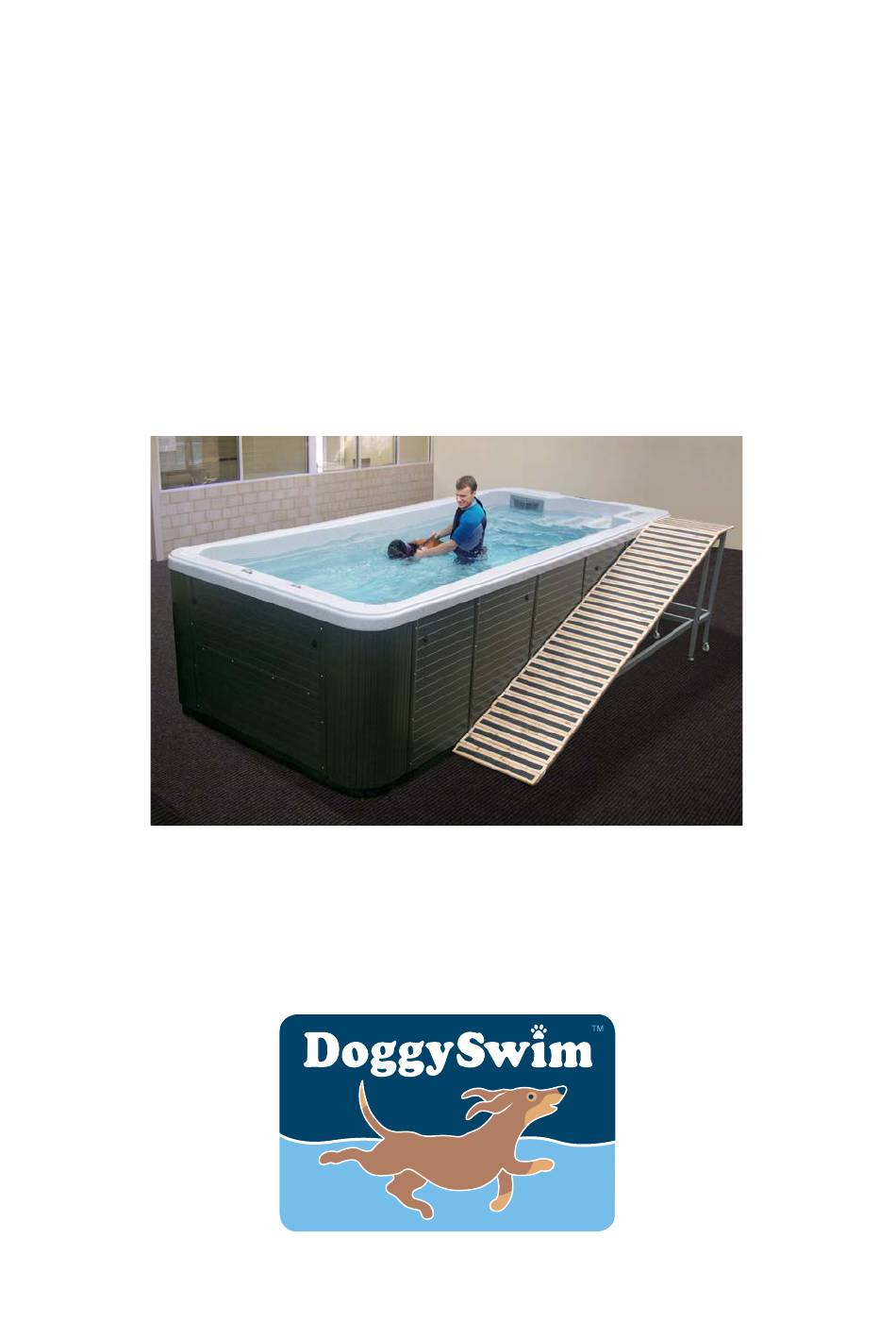

- Page 1 Canine Hydrotherapy Pool Owner’s Manual S490 2014...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Electrical configuration DOGGYSWIM S490 DIAGRAM IMPORTANT SAFETY INFORMATION Factory reset/audio configuration INSTALLATION AND SETUP About section Selecting a site for your hydrotherapy pool INSTRUCTIONS FOR USE Electrical requirements and connections Pool ramp Checklist before filling your hydrotherapy pool Sand filter maintence CONTROL PANEL OPERATIONS Control valve settings... -
Page 3: Doggyswim S490 Diagram

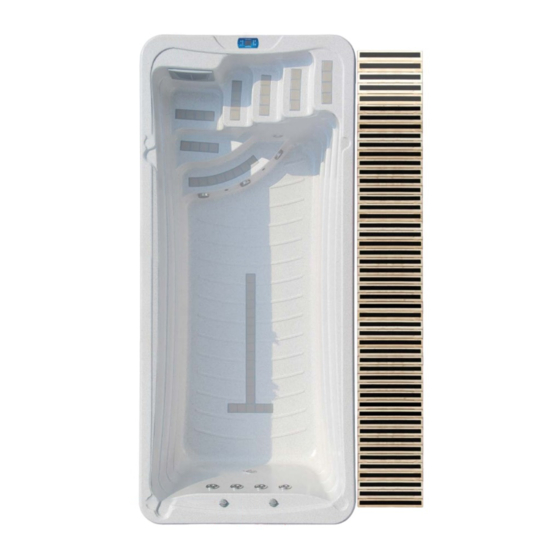

DOGGYSWIM S490 DIAGRAM Control Panel Ramp Filters LED Light Water Suction LED Light Speed (air) Control for Jets Counter-current Jets... -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION When installing and using this electrical equipment, basic ADDITIONAL SAFETY INSTRUCTIONS: safety precautions should always be followed, including the following: 1. WARNING - risk of children and dogs drowning. Although your DoggySwim S490 hydrotherapy pool cover 1. READ AND FOLLOW ALL INSTRUCTIONS. is not rated as a safety cover, it is wise to always keep the hydrotherapy pool cover securely fastened when not in use. -
Page 5: Installation And Setup
INSTALLATION & SET-UP SELECTING A SITE FOR YOUR Outdoor Considerations: When selecting an outdoor site, several things should be considered. HYDROTHERAPY POOL Firstly, avoid selecting a site where excessive water Your DoggySwim S490 hydrotherapy pool was may contact the hydrotherapy pool such as from designed for either indoor or outdoor use. -
Page 6: Checklist Before Filling Your Hydrotherapy Pool
INSTALLATION & SET-UP CHECKLIST BEFORE FILLING YOUR 4. Check Valve: HYDROTHERAPY POOL Verify that all valves aside from the drainage valves described previously are in the fully open position. A Important: The equipment should never be operated valve that is half closed will result in a noisy pump due without water in the hydrotherapy pool. -
Page 7: Instructions For Use
CONTROL PANEL OPERATIONS INSTRUCTIONS FOR USE INITIAL START-UP the heater. When the correct pool water temperature is reached the pump / filtration will stop automatically. PRIMING MODE In addition, the pool water will be circulated for 2 hours When your DoggySwim S490 pool is first connected twice daily to filter and clean the water regardless of it will go into Priming mode which will last for up to 4 duration of pool use. -
Page 8: Keypad Functions
CONTROL PANEL OPERATIONS KEYPAD FUNCTIONS Power Press any button to turn the keypad on. After 30 minutes without activity it will Settings Jets 1 shut off. Main screen Jets 2 The main screen gives you access to accessories and water temperature. Light Mode At the bottom of the screen you will see... -
Page 9: Settings
CONTROL PANEL OPERATIONS Settings From the home page you can access the Settings, where you will find: Settings Jets 1 • Water Care • Audio (where fitted) Jets 2 • Date and Time • Keypad Settings • Electrical Configuration Light Mode •... -
Page 10: Modifying Schedules
CONTROL PANEL OPERATIONS Modifying schedules To modify a Water Care category, use the lit button to the right (Button C) to open Settings Jets 1 the selected Water Care menu. You can add schedules by scrolling down Jets 2 to Add, and selecting with ‘Jets 2’ button. To delete a schedule, press the lit button Light Mode... -
Page 11: Electrical Configuration
CONTROL PANEL OPERATIONS Electrical Configuration Please do not make changes in this section unless you are a qualified electrician. Settings Jets 1 In this section you can change the low- level configuration, number of phases, and Jets 2 input current. Once you are at the setting that you would like to change, use ‘Jets 2’... -
Page 12: Instructions For Use
INSTRUCTIONS FOR USE POOL RAMP Assembled on delivery, the non- slip ramp can be adjusted to the correct height by adjusting the feet. The ramp can be placed either at 90° to the pool side or alongside the pool. The ramp surface is made of wood with a non-slip covering to each section. -
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE DIAGNOSTICS - OPERATION Once commissioned, your DoggySwim S490 hydrotherapy pool should operate normally when properly set up. If, however, you encounter operating problems please use this general guide. If this guide does not help you solve the problem please contact your dealer. OPERATING PROBLEM ANALYSIS ACTION REQUIRED... -
Page 14: Maintenance
MAINTENANCE WATER CHEMISTRY 3. pH Control Proper pH balance is extremely important in controlling Tap water that is safe to drink is not always right for bacteria, providing water that’s comfortable for the your hydrotherapy pool. Normal tap water is usually user, and in preventing damage to the hydrotherapy filled with minerals and micro-contaminants that are not pool and its equipment. -
Page 15: Starting Your Hydrotherapy Pool With New Water
MAINTENANCE 8. Clearing cloudy water MAINTAINING POOL WATER There are two basic reasons that hydrotherapy pool Sanitizer and pH Levels water becomes cloudy. First, non-filterable liquid It is important to test and adjust the sanitizer and pH wastes (perspiration, etc.) have contaminated the levels of your hydrotherapy pool on a daily basis. -
Page 17: Changing Your Hydrotherapy Pool Water
MAINTENANCE CHANGING THE POOL WATER CAUTION: Using a brush to clean a cartridge could damage it. Commercially available cartridge cleaners Depending on usage, your pool water will need to be may be used and can be obtained from your authorised changed approximately every 1-4 months or whenever DoggySwim dealer. -
Page 18: Cleaning Care
MAINTENANCE CLEANING CARE POOL WINTERIZATION / LONG PERIODS ON NON-USE Vacuuming the hydrotherapy pool: 1. Drain the water from the hydrotherapy pool (see Debris from wind, trees and muddy paws will ‘Steps to drain your hydrotherapy pool’ under occasionally accumulate on the bottom of your pool. ‘Changing your hydrotherapy pool water”... -
Page 19: Service
Note: Damage caused by repairs made by someone other than an authorised Riptide technician will not be covered by your warranty. NON-GUARANTEE SERVICE We recommend having an authorised DoggySwim... -
Page 20: Doggyswim S490 Limited Warranty
DoggySwim warrants cosmetic trim against fault in manufacture or faulty workmanship. hydrotherapy pool cover to be free from defects in materials and workmanship for a period of one year from the Hydrotherapy pool’s delivery date. Riptide Pools Limited United Kingdom... - Page 21 Notice must be given Riptide Pools Limited, 41 are not limited to the removal of a permanent deck Robjohns Road, Chelmsford, Essex, CM1 3AG, UK or other custom fixture or the necessity for crane Tel 01245 265036.
-
Page 22: Warranty Registration Form
Warranty Registration Form If possible please enclose a photocopy of the original purchase contract/receipt to negate the need for inspection on service calls. Name: Address: Post Code: Model: Serial Number: Purchase Date: Place of Purchase:...
