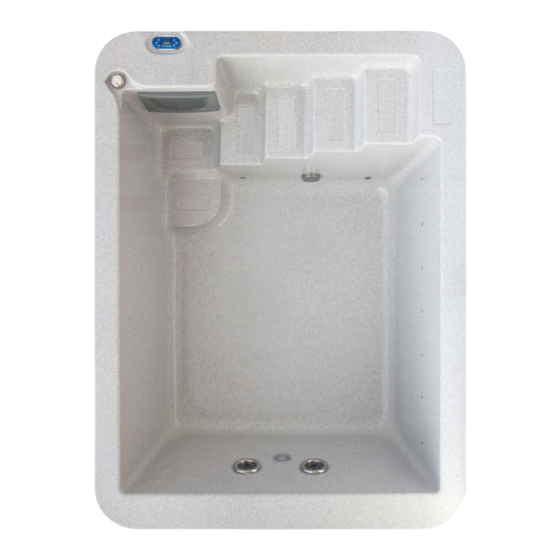

- Page 1 KiddySwim l & II Owner’s Manual 2014 Pools & Exercise Pools...
-
Page 2: Table Of Contents
TABLE OF CONTENTS KiddySwim diagram maintenanCe important Safety information Water chemistry Overview of water chemistry inStallation and Setup Selecting a site for your pool Starting your pool with new water Electrical requirements and connections Maintaining pool water Checklist before filling your pool Water chemistry troubleshooting Total Alkalinity (TA) Adjustment Chart Control panel operationS... -
Page 3: Kiddyswim Diagram
KIddySwIM dIAgRAM Control Panel Filters Speed (Air) Control for Jets Suction Water Edge LED Lights LED Light Counter-current Jets... -
Page 4: Important Safety Information
Always use extreme caution if you intend on entering or . In standard form, the KiddySwim I pool requires only exiting the pool. Surfaces can be very slippery when wet. one supply of 240 volts 13 amp, the KiddySwim II model Keep all breakable objects out of the pool area. -
Page 5: Installation And Setup
It must be capable of Your 240 Volt KiddySwim I pool requires one fused handling water splashed out from the pool as well as and dedicated electrical circuit of 13 amp and a the possibility of a leak from the vessel ( a catch basin minimum supply wire size of 2.5mm. -
Page 6: Checklist Before Filling Your Pool
INSTALLATION & SET-UP 4. Check valve: CHeCKliSt Before filling your pool Verify that all valves aside from the drainage valves described previously are in the fully open position. A important: valve that is half closed will result in a noisy pump due The equipment should never be operated without to lack of water flow. -
Page 7: Control Panel Operations
Press once for gentle jet speed b) Press again for full jet speed c) Press again to turn off jets Note: KiddySwim I has one pump so that only Jets 1 button will operate - the Jets 2 button has no function. KiddySwim ii... -
Page 8: Instructions For Use
INSTRUCTIONS FOR USE initial Start-up freeze proteCtion If the temperature sensors within the heater detect a priming mode very low temperature then the pumps automatically activate to provide freeze protection. The pumps will When your KiddySwim pool is first connected it will go run continuously or periodically depending on the into Priming mode which will last for up to 4 minutes conditions. -
Page 9: Troubleshooting Guide
TROUBLESHOOTINg gUIdE diagnoStiC meSSageS Control Panel Message Definition Action required No message on display Power has been disconnected The control panel will be disabled from the pool until power returns. The clock time may have to be reset after reconnection. All other pool settings will be preserved. - Page 10 TROUBLESHOOTINg gUIdE diagnoStiC meSSageS Control Panel Message Definition Action required Insufficient water detected flowing Check water level in pool. Add through the heater. water if necessary. If the water is at the correct level make sure the pumps have been primed. Press any button to reset.
-
Page 11: Diagnostics - Operation
TROUBLESHOOTINg gUIdE diagnoStiCS - operation Once commissioned, your KiddySwim pool should operate normally when properly set up. If, however, you encounter operating problems please use this general guide. If this guide does not help you solve the problem please contact your dealer. OPERATING PROBLEM ANALYSIS ACTION REqUIRED... -
Page 12: Water Chemistry
MAINTENANCE water CHemiStry user, and in preventing damage to the pool and its equipment. Using the scale of 0-14, pH is the measure Tap water that is safe to drink is not always right for of acidity and alkaline in the water. pH levels under 7.0 your pool. -
Page 13: Starting Your Pool With New Water
MAINTENANCE waste substances, shock the water (as described maintaining pool water previously). Second, non-filterable micro-particulate Sanitizer and pH levels wastes (dust, etc.) have contaminated the water. It is important to test and adjust the sanitizer and pH To remove these waste substances, use a WATER levels of your pool on a daily basis. -
Page 15: Changing Your Pool Water
MAINTENANCE CHanging your pool water allowed to soak overnight in CARTRIDGE CLEANER. In either case after degreasing use a high pressure Depending on usage, your spa section water will hose or pressure cleaner to remove cleaner residue need to be changed approximately every 4 months and calcium. -
Page 16: Cover Care
MAINTENANCE Cover Care no-use for 1-2 weeks: Your cover has a one year warranty. If you plan to not use your pool for 1-2 weeks, then we Basic instructions are provided below. It is important suggest that you not make any changes in operating that you refer to the information that came with your your pool. -
Page 17: Service
01245 265036. For chemicals and accessories we recommend www.hottubbarn.co.uk purCHaSe information YOUR POOL SERIAL NUMBER PURCHASE DATE DELIVERY DATE Riptide Pools Limited 41B Robjohns Road, Chelmsford Essex CM1 3AG Tel: 01245 207345 Company No. 06356472 VAT Registration No. 921904829... -
Page 18: Limited Warranty
Structural / year Surface warranty Cabinet warranty Riptide warrants the galvanised steel sub frame not to Riptide warrants the UV Resistant Synthetic Wood crack or fracture for a period of five years from delivery date. Additionally, the Aristech surface material of the... - Page 19 Riptide shall not be liable for loss of use of the pool, which shows the date of purchase. KiddySwim pool or other incidental, consequential,...
