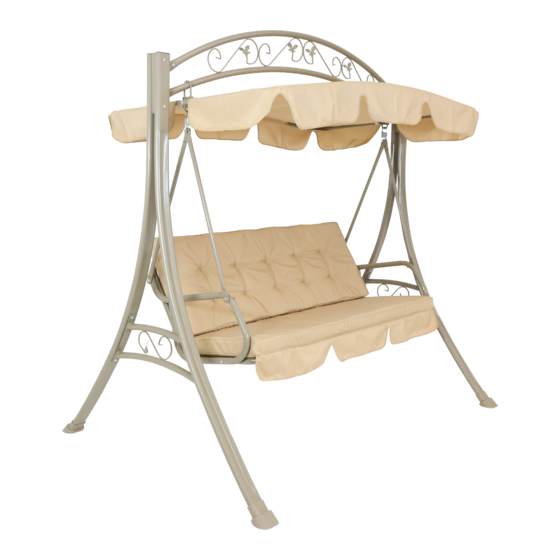

TUFTED CUSHION PATIO SWING
Read all assembly and care instructions carefully before using this product. Save this document for future reference.
Assemble components on a soft, clean surface to avoid scratching or damaging the finish.
Always fully insert the hex key inside designated notch of the bolt to
Tip:
prevent the bolt head from stripping.
CHOKING HAZARD — This item contains small parts that can be
swallowed by children. Keep children away during assembly.
3427
Purchase Date:
Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell.
Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with
the date of purchase as well as photos of the merchandise defect, must be provided. Photos are used to determine
the cause of defects and for future quality control. Register your warranty at
If you have any questions, comments or concerns, feel free to contact us by phone at 833-982-1977, by email:
customerservice@sunnydazedecor.com, or via our contact us page at
WARNING
/
/
Order/Customer Reference Number:
LR-243
No.
A
B
C
D
E
F
G
H
J
K
L
M
V
2-PERSON
W
Included Tools
No.
N
Hex Keys
O
Spanner
P
Q
R
S
T
U
X
Y
10/2021
https://tiny.cc/SunnydazeWarranty
https://tiny.cc/SunnydazeContact
Inspect packaging to ensure all
parts are accounted for before
disposing of packing materials.

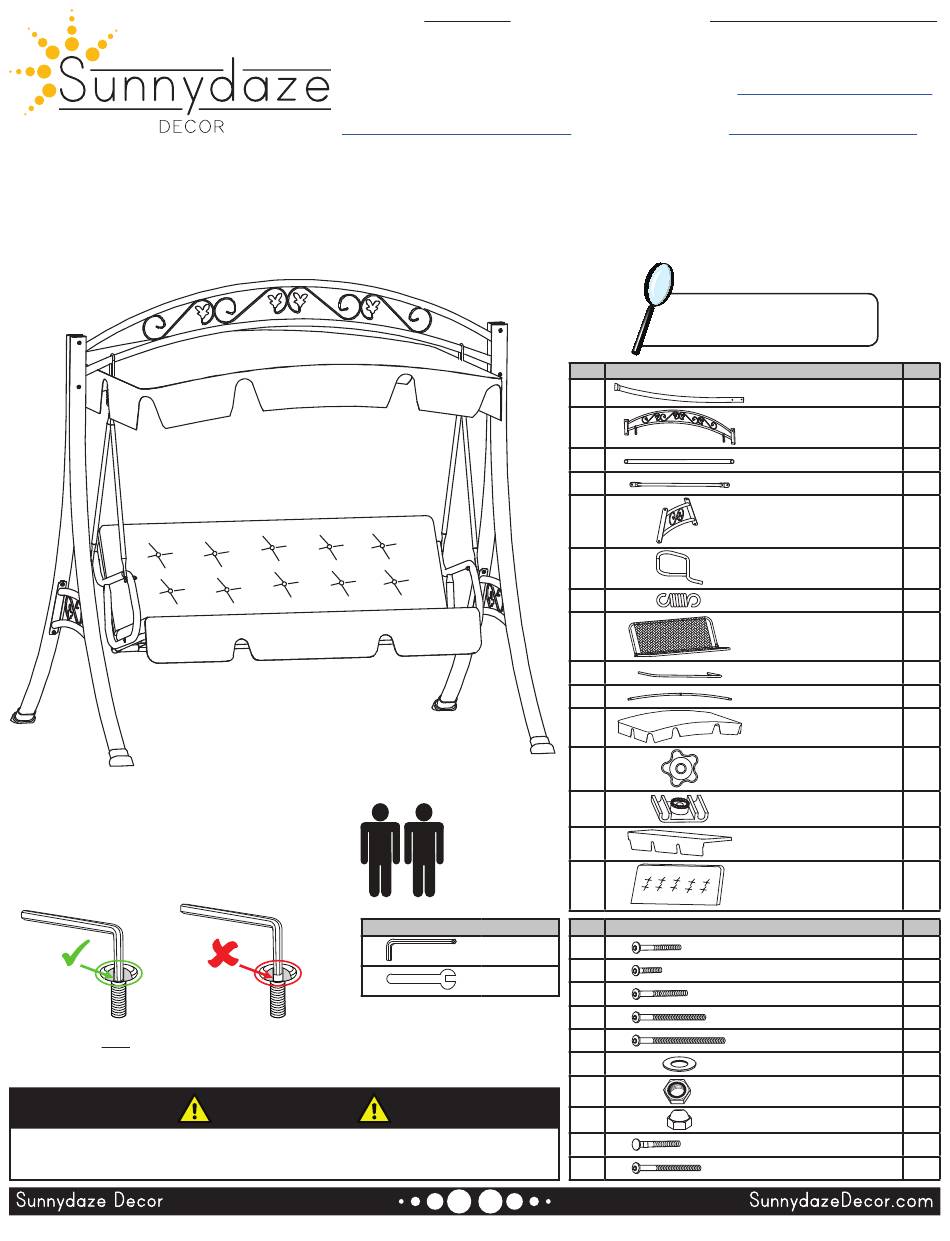

Parts
Leg
Top Bar
Canopy Center Bar
Swing Frame
Frame Side Support
Seat Arm
Extension Spring
Seat
I
Canopy End Frame
Canopy Side Bar
Canopy Fabric
Knob
Spacer
Seat Cushion
Back Cushion
Hardware
M6 x 40mm Bolt
M8 x 20mm Bolt
M8 x 45mm Bolt
M8 x 75mm Bolt
M8 x 95mm Bolt
Washer
Lock Nut
Nut Cap
M8 x 50mm Bolt
M8 x 68mm Bolt
Qty.
4
1
1
4
2
2
2
1
2
2
1
2
2
1
1
Qty.
2
8
2
2
4
18
10
10
2
2
Page 1 / 4
