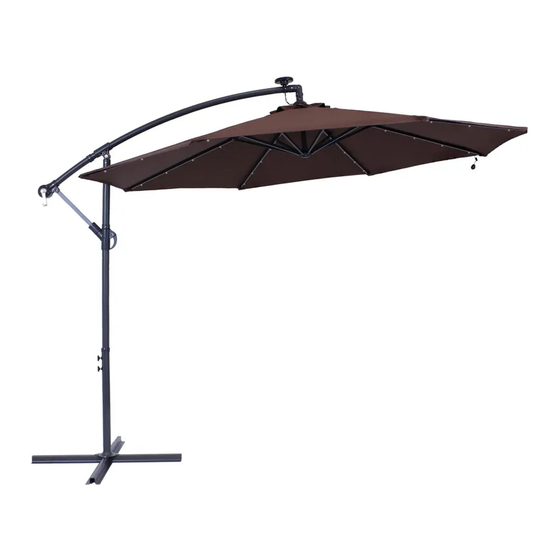

10' OFFSET CANTILEVER UMBRELLA
WITH SOLAR LED LIGHTS
HELPFUL HINT
Sunnydaze Decor advises reading this manual fully, and assembling the umbrella soon after purchase. Check
that all parts are accounted for and familiarize yourself with the assembly before beginning.
Save this manual for future reference.
RXB003 SOLAR
Purchase Date:
Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell.
Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with
the date of purchase as well as photos of the merchandise defect, must be provided. Photos are used to determine
the cause of defects and for future quality control. Register your warranty at
If you have any questions, comments or concerns, feel free to contact us by phone at 888-881-4668, by email:
customerservice@nethealthshops.com, or via our contact us page at
Ensure all parts are
accounted for before
disposing of packaging.
Tools Required
(not included)
Wrench
WARNING
CHOKING HAZARD — This
item contains small parts that
can be swallowed. Keep children
away during assembly.
/
/
Order/Customer Reference Number:
No.
A
B
C
D
E
F
G
H
01/2020
https://tiny.cc/SunnydazeWarranty
https://tiny.cc/SunnydazeContact
Parts
Top Crossbar
Bottom Crossbar
Pole Support
Umbrella
Threaded Knob
Bolt
Washer
Solar Panel
Qty.
1
1
1
1
2
4
4
1
Page 1 / 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunnydaze Decor 10' OFFSET CANTILEVER UMBRELLA WITH SOLAR LED LIGHTS
Summary of Contents for Sunnydaze Decor 10' OFFSET CANTILEVER UMBRELLA WITH SOLAR LED LIGHTS
- Page 1 Order/Customer Reference Number: Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell. Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with the date of purchase as well as photos of the merchandise defect, must be provided.
- Page 2 BEFORE YOU BEGIN... • This offset umbrella requires the use of 4 cantilever offset patio umbrella base weights or similar items, such as paving slabs, for stability. Minimum total weight limit 120 lbs (54Kg). • Read and understand this manual before assembling and using the product. •...
- Page 3 ASSEMBLY Attach the Pole Support STEP 1 STEP 2 to the crossbars using the Washers and Bolts, as shown. Place the Top Crossbar onto the Bottom Crossbar. STEP 3 1. Connect the umbrella pole, as shown. 2. Insert the plug into the socket under the solar panel. 3.
- Page 4 STEP 4 STEP 5 Weigh the unit down before proceeding. 4x Cantilever Offset Patio Umbrella Base Weights a recommended to prevent the unit from tipping over (sold separately). Firmly insert the Umbrella into the assembled base. 1. Flip the handle upwards. Screw in and tighten the Threaded Knobs into the 2.
- Page 5 STEP 6 1. Push the curved pole upwards to extend the canopy to the desired location. 2. Flip the handle down to lock into place. 3. Slide the sleeve down to secure the arm. STEP 7 Turn the crank to open the umbrella until the canopy is fully expanded. Do not use the umbrella if the canopy is not fully opened.
- Page 6 HOW TO... close the canopy STEP 8 Turn the crank until the canopy is fully closed. STEP 9 STEP 10 1. Slide the sleeve upward on the arm, as shown. 2. Gently pull the curved pole downward until the Slide the collapsed umbrella is parallel with umbrella downward the center pole.
- Page 7 Cleaning & Maintenance O NOT USE BLEACH O NOT USE A PRESSURE WASHER BASIC CARE All fabrics will eventually fade from sun exposure. However, it is possible to maintain an umbrella's color for years to come by covering it with an umbrella cover or storing it indoors when not in use. Do not use bleach, acid, solvents or abrasive cleaners on this product.
