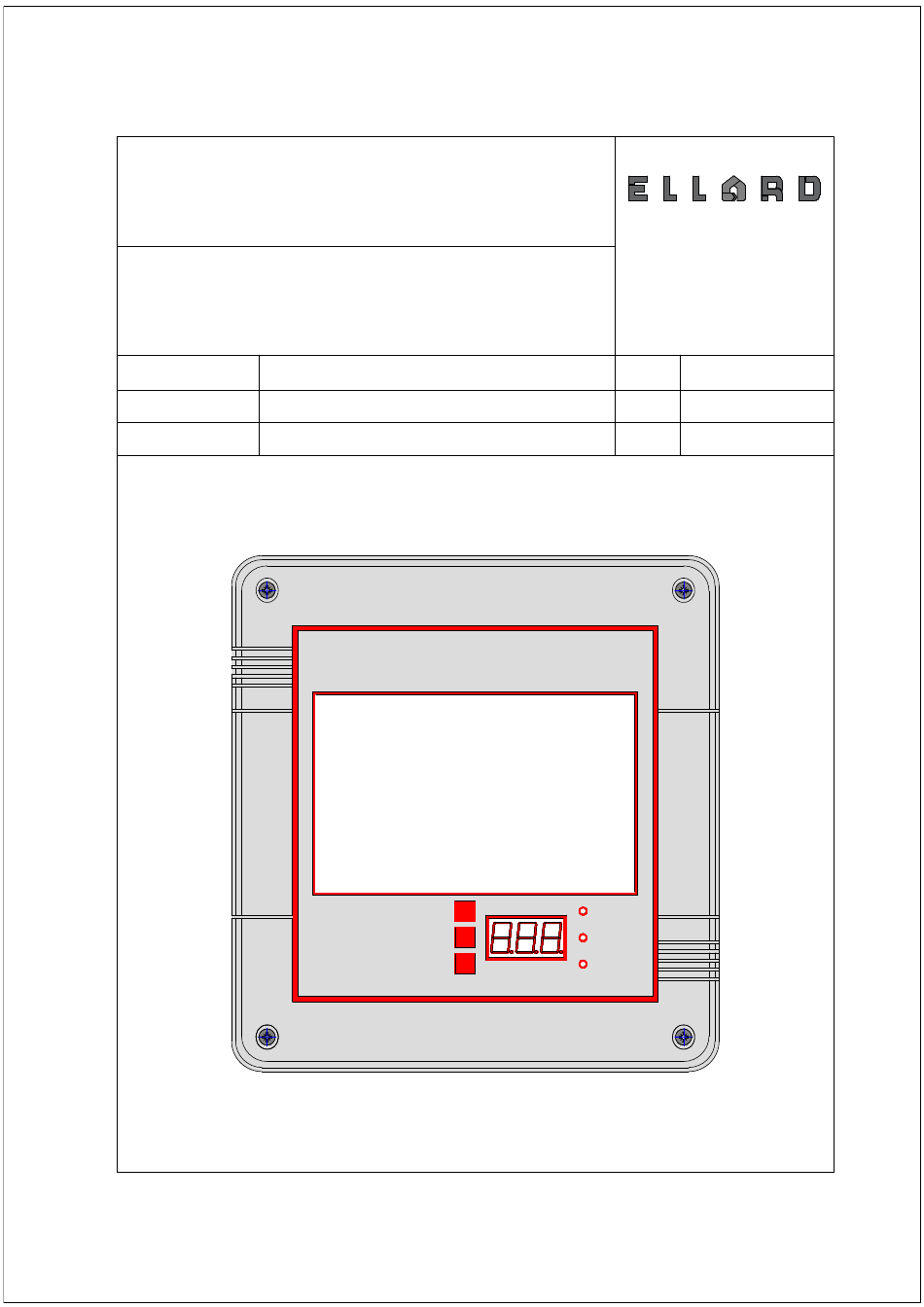

PRODUCT INSTRUCTION

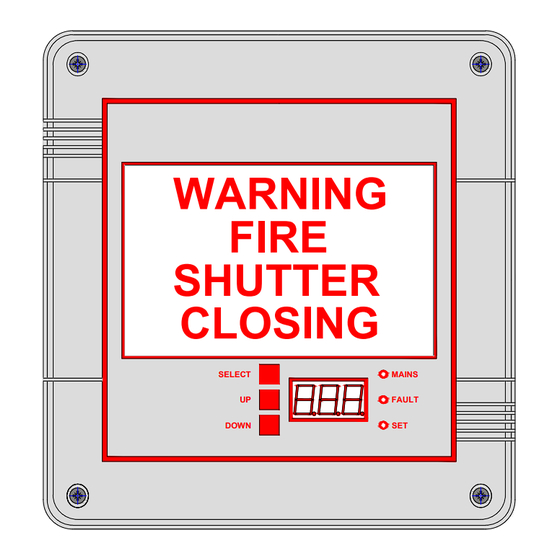

Fire Control Panel FDCP-03
(Basic Set Up Guide)
Stock Code
04068
FDCP - 03 Main Control Panel
FDCP - 03 Extension Repeater Panel
04059
Description
WARNING
FIRE
SHUTTER
CLOSING
SELECT
UP
DOWN
Roundthorn Industrial Estate
Floats Road, Wythenshawe
Manchester, M23 9WB
Tel: +44 (0)161 - 945 - 4561
sales@ellard .co.uk
technical@ellard.co.uk
Doc No
PI - FDCP - 03
Iss
1
Date
01-03-2021
MAINS
FAULT
SET
Advertisement
Related Manuals for Ellard FDCP-03
Summary of Contents for Ellard FDCP-03
- Page 1 PRODUCT INSTRUCTION Roundthorn Industrial Estate Floats Road, Wythenshawe Manchester, M23 9WB Fire Control Panel FDCP-03 Tel: +44 (0)161 - 945 - 4561 sales@ellard .co.uk (Basic Set Up Guide) technical@ellard.co.uk Description Stock Code Doc No PI - FDCP - 03 04068...
- Page 2 FDCP - 03 Contents General 1) Specification......................... 2) Board Layout........................ 3) Connections......................... 3.1 Connection to New JM SERIES operators with PCB and LED indication ..3.2 Connection to 230v AC Tube motors............... 3.3 Connection to 24v DC Tube motor..............3.4 Connection to External Panic Button..............
- Page 3 General Multi Function Fire Control Panel for Roller Shutters Features Large Visual warning 'FIRE SHUTTER CLOSING' and 103 dB sounder Easy to program using front panel buttons and display Accepts fire signal types - Normally Open (N/O) or Normally Closed (N/C) volt free contact and 24v dc direct Removable terminals for ease of connection Low Voltage external controls via key-switch or push button operation(not supplied)
-
Page 4: Specification
Specification General Power Supply 230v - 50Hz -15 to +70 deg C Operating temp Relays 10A @ 28v DC / 230v AC Extra Low Voltage Switch Circuit Lamp LED - white 12v DC 85mA, 103 dB (Decibels) Sounder 2 x 12v, 1.2Ah Lead Acid Batteries Note: Auxiliary Power... -
Page 5: Board Layout
Board Layout PUSH MOTOR RESET AUX 1 AUX 2 SOLENOID ZONE 2 ZONE 1 BUTTON CONTROL 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 F250mA F1.0A F5.0A... - Page 6 3.1) General connection for New 'JM' series fire shutter operators with PCB - LED indication (Use with 'FAST SET 1, 4 or 5) PURPLE WHITE RED + YELLOW YELLOW Motor Control Cable WHITE PURPLE 24v d.c. Solenoid Cable 3 4 5 6 BRAKE RELEASE SOLENOID (Key-switch shown - SAPZ 1-2T)
- Page 7 3.3) General connection for 24v DC Tube Motors (Use with 'FAST SET 4 or 5) CLOSE OPEN 3 4 5 6 Local Fire Alarm Main Fire Alarm (Key-switch shown - SAPZ 1-2T) Signal when using Signal when using OPEN FAST SET 5 see note (1) FAST SET 4 or 5 CLOSE (N/O Signal shown)
- Page 8 Wire operator, push buttons, panel and solenoid as per drawing Connect mains and fit panel battery connector blocks Rolling display will flash 'ELLARD FIRE PANEL' Panel is ready to program when 'MAINS' and 'SET' light are steady and display is...
- Page 9 Wire operator, push buttons, panel and solenoid as per drawing Connect mains and fit panel battery connector blocks Rolling display will flash 'ELLARD FIRE PANEL' Panel is ready to program when 'MAINS' and 'SET' light are steady and display is...
- Page 10 Wire operator, push buttons, panel and solenoid as per drawing Connect mains and fit panel battery connector blocks Rolling display will flash 'ELLARD FIRE PANEL' Panel is ready to program when 'MAINS' and 'SET' light are steady and display is...
-
Page 11: Mains Fault
5.0) Status Indication and trouble shooting Display Sounder Mains Fault Batteries Disconnected Mains Power Fail Check Fuse "F3" Lid Disconnected Rolling dash across the Set and awaiting to be display triggered Fire Alarm Signal still present Flashing No dash in Display Panel awaiting a reset Display Shows "E2"...
