Summary of Contents for Ron Francis Wiring PM-75

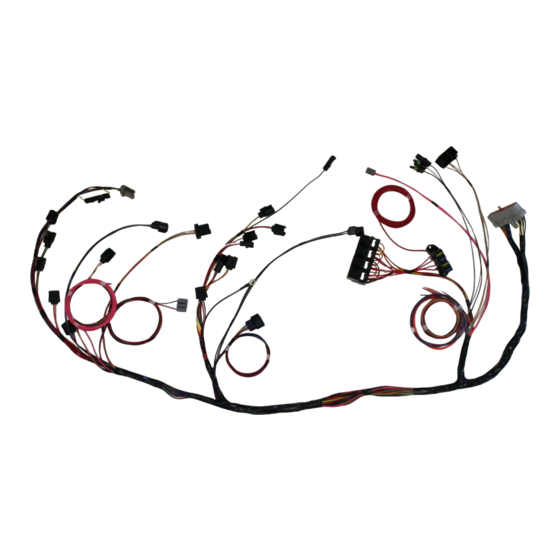

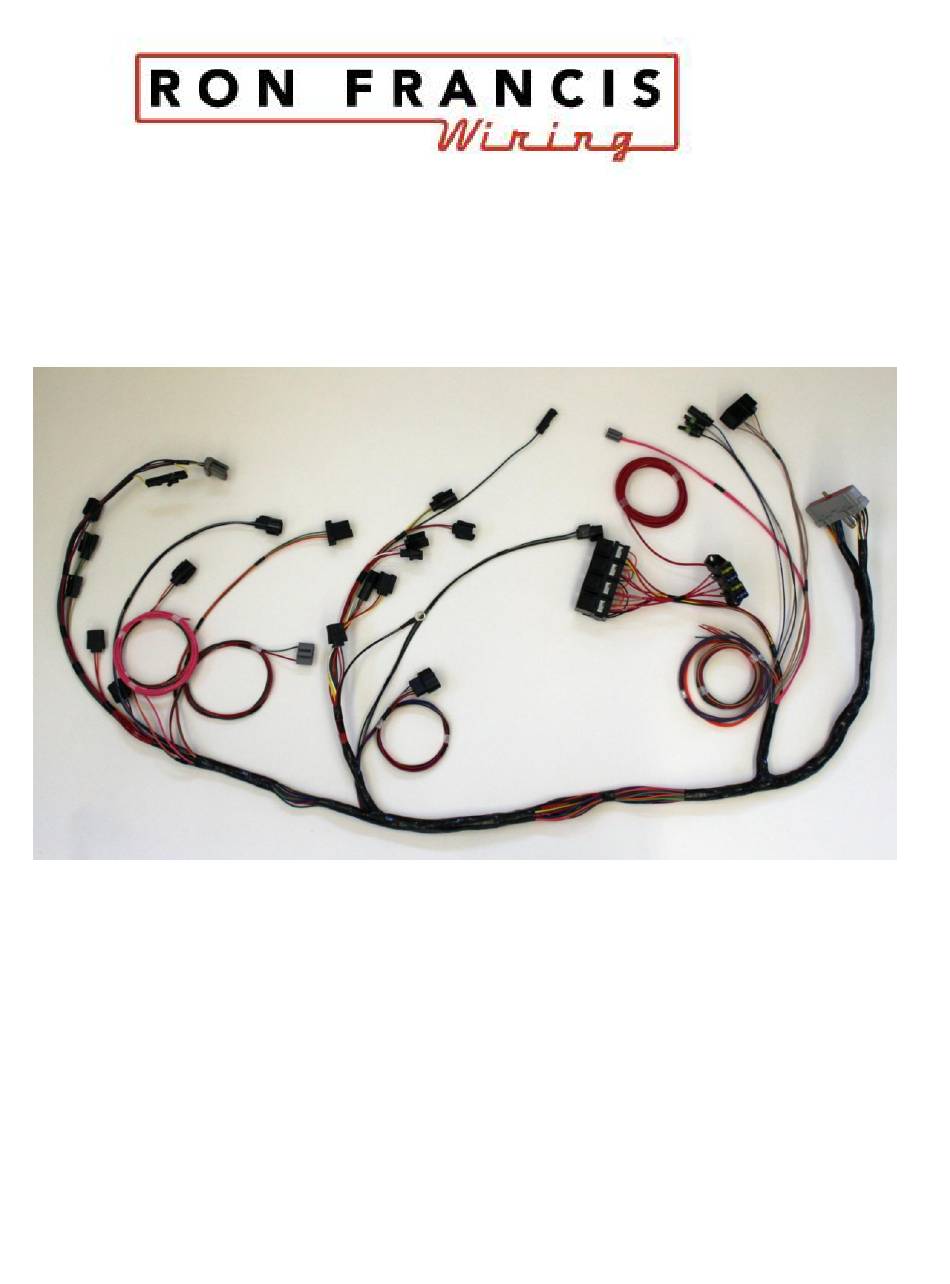

- Page 1 PIMP Ford 5.0 Harness Installation Manual Part Number: PM-75 Ron Francis Wiring 200 Keystone Rd Suite 1 Chester, PA 19013 800-292-1940 www.ronfrancis.com...
- Page 2 Pre-Installation Notes: • This system is designed to install a PIMP based ECM into Ford bodied vehicles. • Please thoroughly read and comprehend the documentation Stinger provides with the PIMP ECM. • Make sure that all the components you have are compatible before installing them. •...
- Page 3 Pre-Installation Instructions: Install the lower intake, fuel injectors, and fuel rail on the engine if not already installed. Remove the upper intake if it is installed and install stock fuel pressure regulator. Plumb fuel lines with appropriately rated line. Use caution when working on fuel system, 40-100PSI can be held within system.
- Page 4 Installation Instructions: Refer to the diagram for item locations. All wires are marked indicating their use. Lay the harness into the engine compartment with the relay and fuse block on the passenger side. Locate where in the firewall you wish to route the computer plug and other dash connections.
- Page 5 Weld exhaust bungs into both sides of the exhaust approximately 9-12 inches from the last cylinder head exhaust port or 3” from the collector. Clean any debris from oxygen sensor ports and threads. Use a small amount of anti-seize on the threads when installing Oxygen Sensors.
- Page 6 c) The Green wire marked “Tach” is for your tachometer. Connect to your tach. Refer to the tachometer manufacturer information for any additional details. Connect the Dk Blue to your water temp gauge. Connect the White wire to your oil pressure gauge. c) Launch Control Lead.
- Page 7 Ron Francis Wiring, its dealers or agents will not be liable, in any way, for any damage, loss, injury or other claims, resulting from the use or misuse, or inability to use any of our products.
