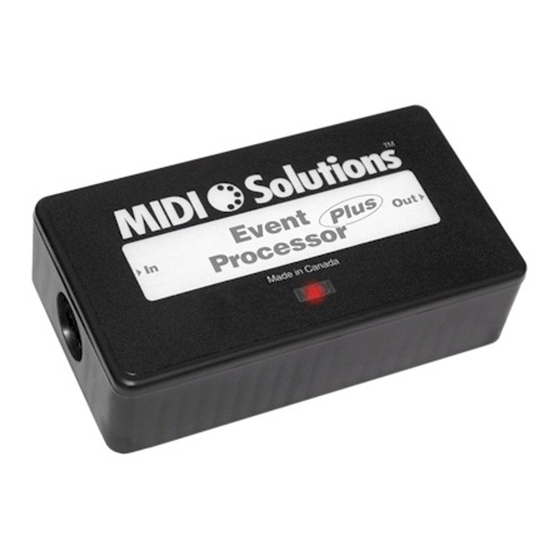

- Page 1 MIDI Solutions Event Processor OPERATING INSTRUCTIONS...
- Page 2 MIDI Solutions Event Processor Operating Instructions M428-100 2023 MIDI Solutions Inc. All rights reserved. MIDI Solutions Inc. PO Box 3010 Vancouver, BC Canada V6B 3X5 www.midisolutions.com...
-
Page 3: Operation
Processor. The MIDI can be left disconnected during programming. Once the Event Processor is programmed, it can be inserted wherever it is required in your MIDI setup. Connect the MIDI Out or Thru of the sending device to the MIDI... -
Page 4: Programming Commands
"MIDI Event A" can contain a maximum of 32 bytes Example To program setting #3 to filter all Program Change events on MIDI channel 16, send the Event Processor the following programming commands: F0 00 00 50 28 01 02 00 02 00 7F... - Page 5 90 3C 7F TURN SETTING ON/OFF To program the Event Processor to turn a setting on or off when the value of "MIDI Event A" moves into a specified range, send it the following System Exclusive programming commands: F0 00 00 50 28 06 ss tt xx (aa bb cc dd) F7 followed by "MIDI Event A"...
- Page 6 DEFINE A SEQUENCE OF MIDI EVENTS To program the Event Processor to step through a sequence of MIDI events in response to "MIDI Event A", send it the following System Exclusive programming command: F0 00 00 50 28 04 ss ff ee tt jj (aa bb cc dd) F7 followed by "MIDI Event A"...
- Page 7 STORE INCOMING VALUE IN A VARIABLE To program the Event Processor to store an incoming value in one of two variable locations, send it the following System Exclusive programming command: F0 00 00 50 28 07 ss (aa bb xx yy) F7 followed by "MIDI Event A"...
-
Page 8: Hexadecimal Conversion Table
MIDI CHANNEL TABLE The value in the programming commands is assigned according to the following table: MIDI Channel MIDI CONTROL CHANGE TABLE Decimal Hexadecimal Control Function Bank Select Modulation wheel or lever Breath Controller Undefined Foot controller Portamento time Data entry MSB Channel Volume Balance Undefined... -
Page 9: Warranty
WARRANTY MIDI Solutions Inc. warrants this product to be free from defects in material and workmanship for a period of one (1) year from date of purchase. This warranty is void if the product has been damaged by accident, misuse, alteration, unauthorized repairs or other causes not arising out of defects in material or workmanship.
