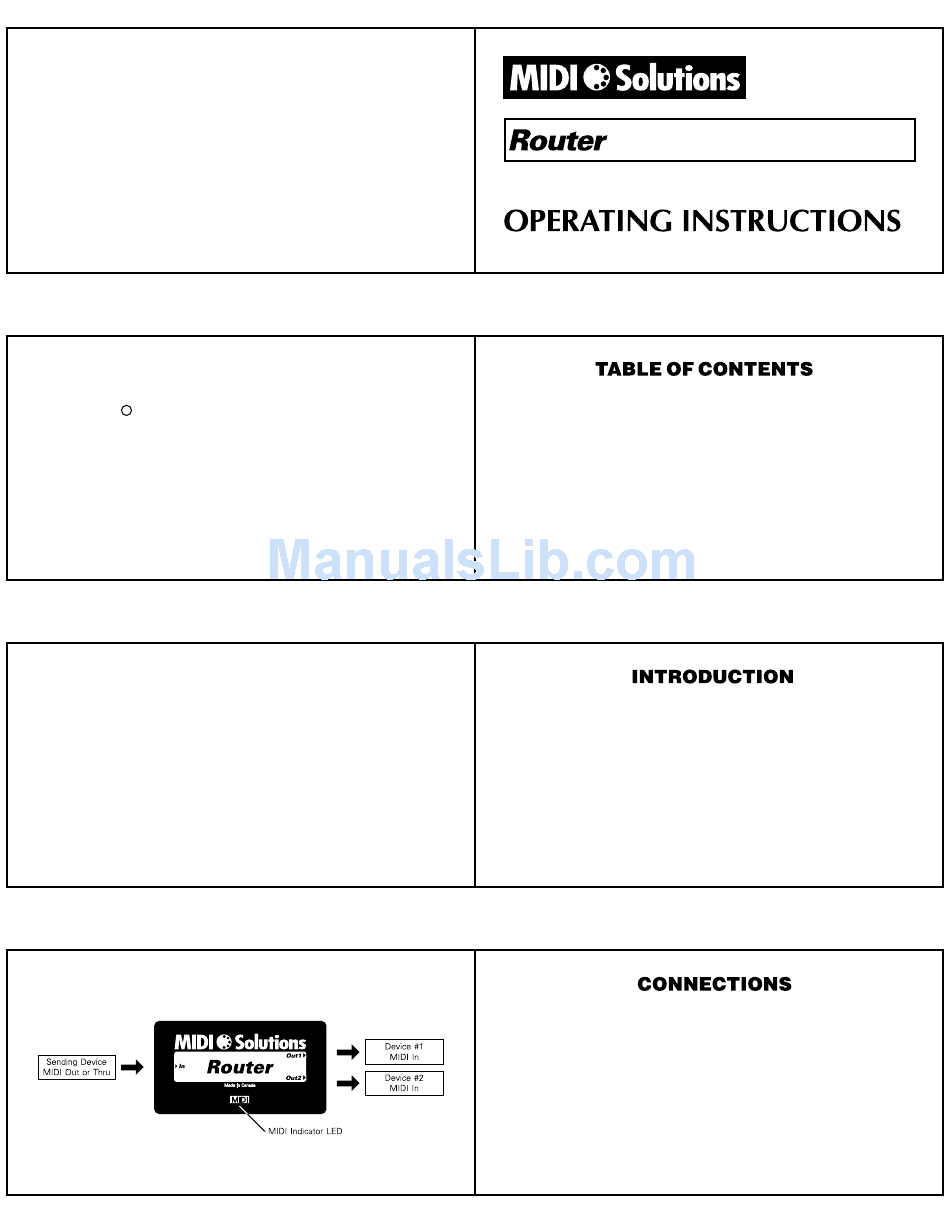

MIDI Solutions Router
Operating Instructions M201
c 2001 MIDI Solutions, Inc.
All Rights Reserved
Printed in Canada
MIDI Solutions, Inc.
P.O. Box 3010
Vancouver, BC Canada V6B 3X5
www.midisolutions.com
6
TM
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
PROGRAMMING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
MIDI CHANNEL TABLE . . . . . . . . . . . . . . . . . . . . . . . 19
MIDI CONTROL CHANGE TABLE . . . . . . . . . . . . . . . 21
HEXADECIMAL CONVERSION TABLE . . . . . . . . . . . 25
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
.
Congratulations on your purchase of the MIDI Solutions
Router. The MIDI Solutions Router has the capability of routing
selected MIDI messages to either of two MIDI outputs. Routing
capabilities include Note, Polyphonic Key Pressure, Control
Change, Program Change, Channel Pressure, Pitch Bend, and
System messages, on all or selected MIDI channels. Up to 10
settings may be stored by the Router. Programmed settings are
retained in non-volatile memory until cleared or overwritten with
new settings. The Router is MIDI-powered and requires no
batteries or power supply to operate.
To program the Router, connect the In of the Router to the
MIDI Out of the device that is sending the programming
commands. Out1 and Out2 can be left disconnected during
programming. Once the Router is programmed, it can be inserted
anywhere in your MIDI setup. Connect the In of the Router to the
MIDI Out or Thru of the sending MIDI device. Connect Out1 of the
Router to the MIDI In of the first receiving MIDI device. Connect
Out2 of the Router to the MIDI In of the second receiving MIDI
device. It is recommended that the number of MIDI Solutions
products chained together between any two MIDI devices be
limited to five.
3
5
7
Advertisement
Table of Contents
Related Manuals for Midi Solutions Router
Summary of Contents for Midi Solutions Router
- Page 1 Out1 and Out2 can be left disconnected during programming. Once the Router is programmed, it can be inserted anywhere in your MIDI setup. Connect the In of the Router to the MIDI Out or Thru of the sending MIDI device. Connect Out1 of the Router to the MIDI In of the first receiving MIDI device.
- Page 2 Out2, and incoming channel messages on channel 1 are sent to of their priority, send it the following command in place of the Out1. It is possible for the Router to ignore priority (see next page) above Clear Settings command:...
- Page 3 This allows messages such as Sustain and Pitch Bend to affect notes in each range. Example: To program the Router to route all System Realtime messages to Out2, set aa = 07 for System Message range, set xx...
- Page 4 If the product requires service, a Return Merchandise Authorization (RMA) number must be obtained from MIDI Solutions and the product must be shipped prepaid to a specified Service Center. MIDI Solutions will repair or replace the product at our discretion and will pay return shipping fees.
