Summary of Contents for Hidrotermal ARS-12.5

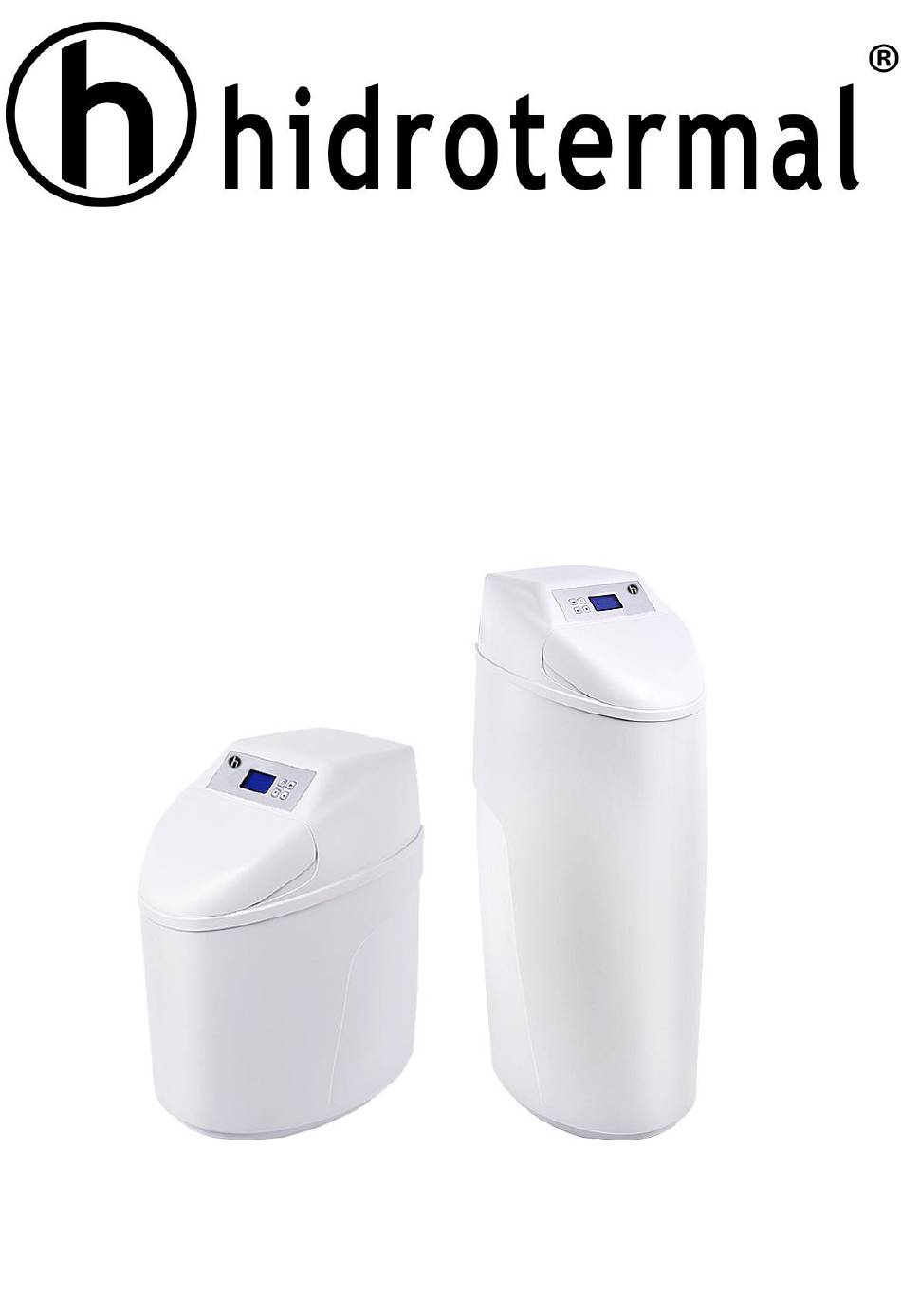

- Page 1 Automatic Residential Softener ARS-12.5 Y ARS-28 INSTALLATION AND MAINTENANCE MANUAL...
-
Page 2: Table Of Contents
Catalogue Preface..............................1.Product Profile............................1 2. Working Principle.............................. 3. Assembly & Parts............................4. Function and Characteristics..........................5. Application................................ 6. Technical Parameters............................7. Setting and Usage............................. 7.1 Control Valve Setting and Usage........................※The Function of Control Panel and Parameter Setting..................※Parameter Setting............................. ※User Mode................................. -
Page 3: Preface
Preface Thanks for choosing our softener series products. These products are featured by good softening effects, stable performance, excellent appearance, compact structure and simple handling, etc. They can meet the soften water demand if family washing, bathing,cleaning and boiling, etc. Besides, they also can be applied to supplying high quality soften water for institutions, schools, group companies, and so on. -
Page 4: Function And Characteristics
●Split type structure (For example D type) Dustproof Overflow Connector Softener Bypass Valve Brine Tank Display Control Panel Shell of Brine Deconating Component Brine Valve Top Strainer Salt Riser Pipe Resin Tank Salt Isolating Board Resin Cabinet Cabinet Bottom Strainer 4. -
Page 5: Application
Volume( Rate(m3/h) (L/h) (Ø×h)mm Size(in) Quantity (M3) 300-500 180×331 0713 ARS-12.5 0.8~1.2m3/h 500-800 1200 180×432 0717 500-800 205×381 0815 ※ Water treatment capacity per cycle is various according to the difference water quality of different region. The standard testing conditions is: Water temperature: 25℃, Raw waterhardness: 150mg/L(CaCO3) ※... -
Page 6: Setting And Usage
Service Conditions: Water Pressure: 0.15-0.4MPa; Electrical Facility：AC100-240V/50Hz-60Hz; Water Temperature: 5-38℃ Environment Temperature: 4-40℃ Relative Humidity: 90%(25)℃ 7. Setting and Usage 7.1 Control Valve Setting and Usage ※The Function of Control Panel and Parameter Setting Menu/ Display Area Manual/Return Manual/Return Down Button lock indicator Light on, indicating the buttons are locked. -
Page 7: Parameter Setting
※Parameter Setting Time of Day Meter Type Softener Valve Parameter setting Time of Day Regeneration Time Regeneration Time Water Hardness Water Hardness 150mg/l Item Parameter set Arrange Factory Default Actual Value Time of Day 00:00-23:59 Current time Regeneration Time 00:00-23:59 02:00 Water Hardness 50-999mg/L... -
Page 8: User Mode
※User Mode After power on, L1 interface will show 3 seconds and then enter into user mode. ********************* ********************* Process display example: The meter type softener valve 12:30:25 12:30:25 02:08:00 02:40:25 Water System Water System Water System Water System In-Service In-Service Back Washing... -
Page 9: The Operations Of The Valve With The Function Of Mixing Water
Bypa 7.4 The operations of the Valve with The Function of Mixing Water If the users think the hardness of outlet water is too low, they can adjust the hardness by using the function of mixing water according to the actual demand. Operation: Anticlockwise rotates the adjusting bolt (As the picture shows.) The wider angle is, the higher outlet water hardness will be. -
Page 10: Notice
※Press " " and turn into Fast Brine status, starting to Fast Rinse. About 3 minutes fast rinse will discharge the residual brine and compact the resin particle so as to reach the best softening effect. 03:25:50 Water System Fast Rinsing... Fast Rinse Status Remaining: 5 min. - Page 11 ※If the raw water fails to meet the standards of local tap water, such as the sediment concentration or residual chlorine content exceed the stand,etc., the pretreatment device should be installed before the device.(Such as Y type filter, ultra filter, and so on.) ※...
- Page 12 ※If the display board display 12:12 and flashing, it means power off(more than 3 days) to remind to reset the time of day. If power off within a short time, the system has memory function, do not need to reset the time.
