- Page 1 DPA-3SR1 Instruction Manual MASTER SET DPA-3SR1...
-
Page 2: Table Of Contents
Contents 1. Overview .. 1-1.Features p. 1 2. Specifications .. 2-1. Absolute maximum ratings p. 1 .. ... -
Page 3: Overview

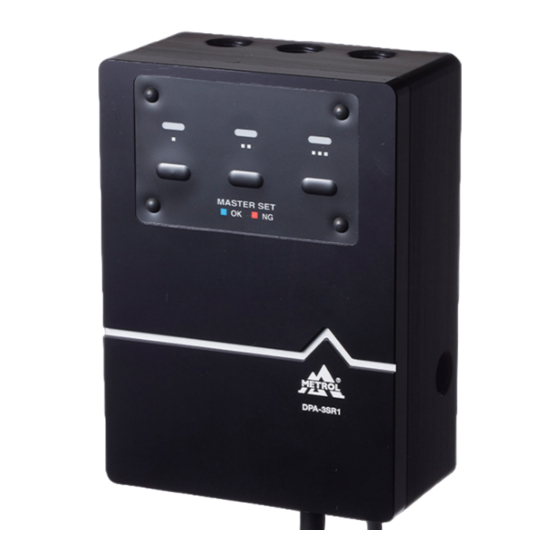

1.Overview This machine uses non-contact measurement to measure air pressure, in order to determine gaps between workpieces and air nozzles at a high level of precision. It compares the current value with a preset gap master value. If the current value is narrower than the master value, the gap is determined to be OK. -
Page 4: Specifications Table
2. Specifications 2-2. Specifications table Product name DPA-3SR1 Repeatability (Note 1) - (Note 4) ±0.5μm (master value ： 1〜60μm) ±1μm (master value ： 60〜100μm) Air Pressure change : within ±1% Guaranteed repeat accuracy range (Note 1) - (Note 4) 1〜100μm Fluid used Dry air (filtered to 5μm) -
Page 5: Response Time Characteristics
2. Specifications 2-3. Response time characteristics The response time is the time it takes for determination output to switch ON once a workpiece has been brought toward the air nozzle and has stopped moving (with air supplied to the machine). This will vary depending on factors such as the length and diameter of the piping from the OUT port to the air nozzle, the seating of the workpiece, and the supplied air pressure.The graphs below show response times when a workpiece is brought toward the air nozzle at a speed of 10 mm/sec. -
Page 6: Part Names And Functions
Pressing and holding the port 1 master set 5. Port #2 master set button button and port 3 master set button at the DPA-3SR1 same time for at least five seconds while in measurement mode will switch to 6. Port #3 master set button SMOOTHING set mode. -
Page 7: Wiring
2. Specifications 2-6. Wiring Description Example load connection Color Signal DC24V±10％ − Power supply BLACK PINK Master #1 SET input Master #1 can be set by turning Master #3 can be ON for 100 ms while in STOP set by turning ON PURPLE Master #1 SET 0V mode. -
Page 8: Operation Preparation
3. Operation Preparation 3-1. Fitting mounting ① Connect a fitting to either SUP port 1 or 2 in the figure shown below. Insert a plug (attached) into whichever SUP port is not being used. ② Connect fittings to OUT ports 1 through 3 in the figure shown below. Insert a plug into any unused OUT ports. -
Page 9: Air Piping Connections
3. Operation Preparation 3-3. Air piping connections Refer to the piping example. Connect the precision regulator and air filter to either SUP port 1 or 2, and connect the air nozzle and leakage unit to OUT ports 1 through 3. ●... -
Page 10: Display At Power On
The machine cannot be operated normally in this state. Contact us for support. 5. Supply Pressure Alarms A supply pressure alarm occurs when the supply pressure falls outside of the specification range. DPA-3SR1 has the following supply pressure alarms. LED display Supply pressure... -
Page 11: Modes
6. Modes 6-1. Overview of modes DPA-3SR1 has the following modes. Mode Description How to enter the mode Determination mode Compares the master values and current value Turn external master set and outputs the determination results. The permission input OFF. master can be set via button input. Setting the master via external input is prohibited. -
Page 12: Determination Mode
Responds to supply pressure alarm status alarm Example Port #1 OK determination OK determination Port #2 Port #3 OK determination Port #1 master value Port #2 master value Port #3 master value MASTER SET MASTER SET MASTER SET MASTER SET DPA-3SR1 DPA-3SR1 DPA-3SR1 DPA-3SR1... -
Page 13: External Master Set Mode
For 200 ms Port #1 ON (ACK) determination ↓ For 200 ms Port #2 ON (ACK) determination ↓ For 200 ms Port #3 ON (ACK) determination ↓ Supply Responds to supply pressure pressure alarm status alarm MASTER SET DPA-3SR1... -
Page 14: Smoothing Set Mode
6. Modes 6-4. SMOOTHING set mode Pressing and holding the port 1 master set button and port 3 master set button at the same time for at least five seconds while in determination mode will switch to SMOOTHING set mode. If there is no operation for 3 seconds or more in SMOOTHING set mode, the mode will automatically switch to determination mode. -
Page 15: Master Setting
7. Master Setting Master setting refers to using a master workpiece to set the master value, which is a threshold value used for determination. The master can be set in determination mode and in external master set mode. Refer to the table below, as the method for setting the master differs by mode. Master setting Mode ACK output... -
Page 16: Master Setting Via Button Input (Determination Mode)
7. Master Setting 7-2. Master setting via button input (determination mode) The master can be reset by setting the master workpiece in place and then pressing the button corresponding to each port for at least 1 second in determination mode. Refer to the figure below for details. - Page 17 7. Master Setting 7-3. Master setting via external input (external master set mode) The master can be reset by setting the master workpiece in place and then inputting a pulse corresponding to each port in external master set mode. Refer to the figure below for details. External master set permission input ON Adjust to supply pressure of 150 to 200 kPa Supply pressure...
- Page 18 7. Master Setting Timing chart Determination Determination External master set mode mode mode External master set permission input Master set input 1 Master set input 2 Port #1 determination output Port #2 determination output Port #3 determination output Timing definition Unit Parameter Time from external master set permission input...
-
Page 19: Frequently-Asked Questions (Faqs)
8. Frequently-asked Questions (FAQs) 1. Specifications Q.1-1 Is distance output as an absolute value? A.1-1 No. Gaps are determined as being either above or below the master value only. (Refer to p.1) 2. Wiring Q.2-1 Should the output line be connected to either the collector or the emitter? A.2-1 No. - Page 20 GM-DPA-3SR1-E-K001...
