EN

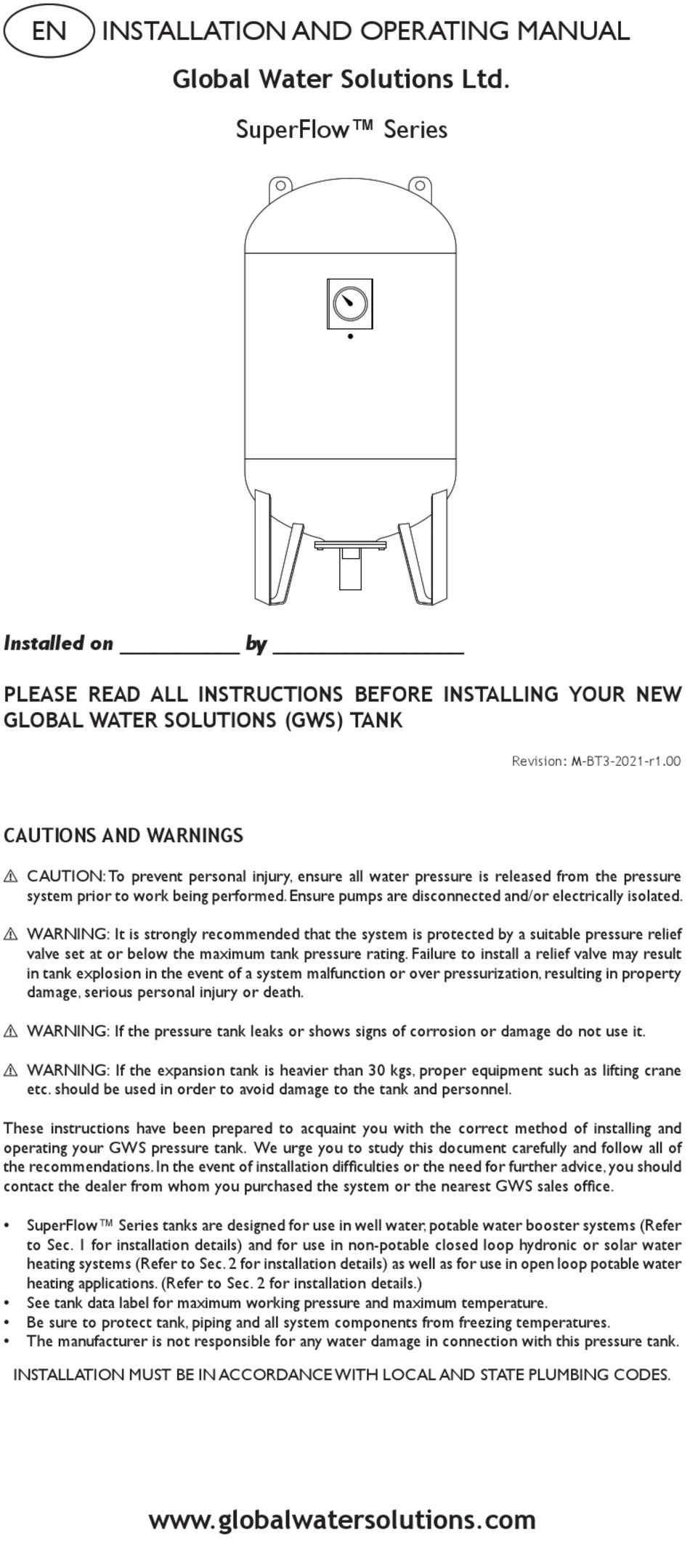

INSTALLATION AND OPERATING MANUAL
Installed on __________ by ________________
PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLING YOUR NEW
GLOBAL WATER SOLUTIONS (GWS) TANK
CAUTIONS AND WARNINGS
⚠ CAUTION: To prevent personal injury, ensure all water pressure is released from the pressure
system prior to work being performed. Ensure pumps are disconnected and/or electrically isolated.
⚠ WARNING: It is strongly recommended that the system is protected by a suitable pressure relief
valve set at or below the maximum tank pressure rating. Failure to install a relief valve may result
in tank explosion in the event of a system malfunction or over pressurization, resulting in property
damage, serious personal injury or death.
⚠ WARNING: If the pressure tank leaks or shows signs of corrosion or damage do not use it.
⚠ WARNING: If the expansion tank is heavier than 30 kgs, proper equipment such as lifting crane
etc. should be used in order to avoid damage to the tank and personnel.
These instructions have been prepared to acquaint you with the correct method of installing and
operating your GWS pressure tank. We urge you to study this document carefully and follow all of
the recommendations. In the event of installation difficulties or the need for further advice, you should
contact the dealer from whom you purchased the system or the nearest GWS sales office.
•
SuperFlow™ Series tanks are designed for use in well water, potable water booster systems (Refer
to Sec. 1 for installation details) and for use in non-potable closed loop hydronic or solar water
heating systems (Refer to Sec. 2 for installation details) as well as for use in open loop potable water
heating applications. (Refer to Sec. 2 for installation details.)
•
See tank data label for maximum working pressure and maximum temperature.
•
Be sure to protect tank, piping and all system components from freezing temperatures.
•
The manufacturer is not responsible for any water damage in connection with this pressure tank.
INSTALLATION MUST BE IN ACCORDANCE WITH LOCAL AND STATE PLUMBING CODES.
Global Water Solutions Ltd.

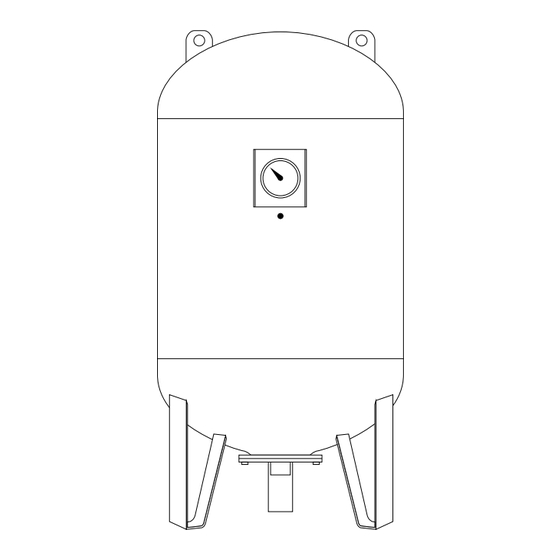

SuperFlow™ Series
www.globalwatersolutions.com
Revision: M-BT3-2021-r1.00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Global Water Solutions SuperFlow Series
Summary of Contents for Global Water Solutions SuperFlow Series
- Page 1 SuperFlow™ Series Installed on __________ by ________________ PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLING YOUR NEW GLOBAL WATER SOLUTIONS (GWS) TANK Revision: M-BT3-2021-r1.00 CAUTIONS AND WARNINGS ⚠ CAUTION: To prevent personal injury, ensure all water pressure is released from the pressure system prior to work being performed.
- Page 2 1. Well Water and Booster System Tank Installation 1.1 Proper GWS Tank Location In order to ensure your tank provides its maximum service life it should always be installed in a covered, dry position. The tank should not be allowed to rub against any surrounding hard surfaces, such as walls etc.
- Page 3 1.5 Multiple Tank Installation All tanks must have the same precharge for the system to function properly. Tanks should be installed on a header to ensure all tanks receive equal and balanced pressure. Adjust each tank precharge as detailed in section 1.3. The system pressure switch or control should be centrally located (see Fig 1.5) in order for the tanks to function properly.
- Page 4 2.4 Solar Heating System Cold Connections Solar Collector SuperFlow™ tanks can be used in the solar liquid loop of indirect thermal transfer systems and may be mounted either on the suction or pressure side of the circulation pump. If a condenser is employed to cool evaporated solar liquid it must be in the location between the solar liquid loop and the expansion tank.
- Page 5 6. Warranty Global Water Solutions Ltd. (GWS) warrants its SuperFlow™ tanks for a period of 1 years from the date of manufacture for manufacturing defects on the steel shell. Warranty applies to GWS products only when used for their intended purpose, and does not apply if a defect is due to improper use of the product, result of accident, misuse, or abuse.
- Page 6 7. Torque values Part Size 10/16bar 25bar ≤150L Flange Bolts 31 Nm 200L~850L 45 Nm 65 Nm 1000L~3000L 65 Nm 76 Nm Hanger Nut 95 Nm M5 Bolt In Hanger 4 Nm Air Valve Version 1 5 Nm Version 2 7 Nm Air valve versions: Version 1:...
