Global Water Solutions ZeroSpot ZS40B Assembly And User's Manual

Portable deionized water system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
™
ZeroSpot
Assembly and User Guide
MODEL #: ZS40B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZeroSpot ZS40B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Global Water Solutions ZeroSpot ZS40B

Summary of Contents for Global Water Solutions ZeroSpot ZS40B

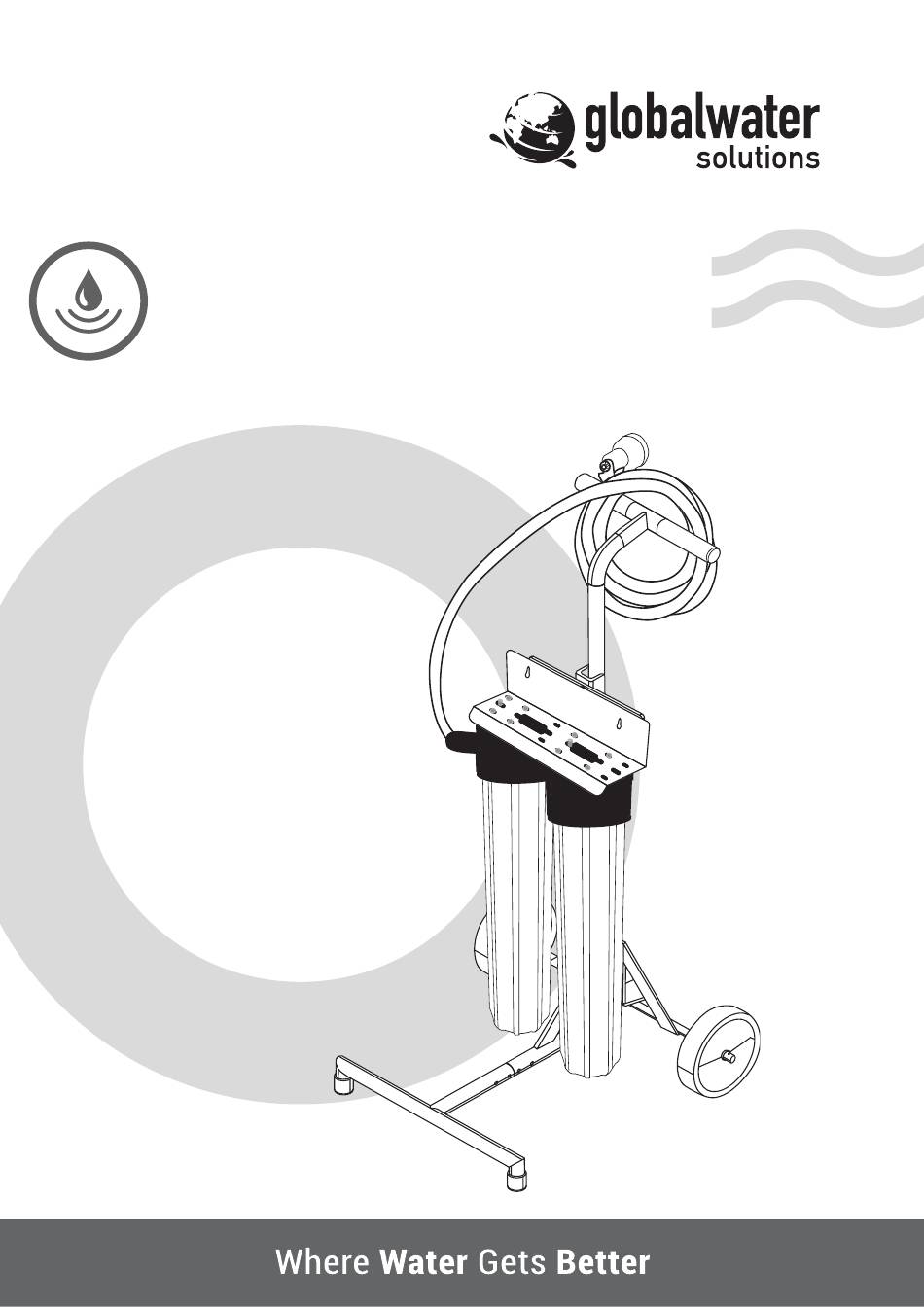

  • Page 1 ™ ZeroSpot Assembly and User Guide MODEL #: ZS40B...

  • Page 2: What's In The Box

    ASSEMBLY AND USER GUIDE PORTABLE DEIONIZED WATER SYSTEM What’s in the box? Part G, I, tool kit, & Part F assembly bolt kit Part B inside the cardboard wrapper underneath the wheel & cardboard spacer Part A Part H installation manual post card Part D in between the...
  • Page 3 ZeroSpot Portable Deionized Water System ™ I. ZeroSpot Cart Components: Part A: Cart Handle PART H: Part B: Housing bracket Housing Wrench Part C: Cart main structure Part D: Wheels support Part E: Front stabilizer Part F: Wheels (x2) Part G: Adapters and gaskets (x2) Part H: Housing wrench (x1) Part I: TDS meter (x1) Part J: Housings loaded with resin...
  • Page 4 ASSEMBLY AND USER GUIDE PORTABLE DEIONIZED WATER SYSTEM II. Tool Kit • 10mm wrench (x1) • 12mm wrench (x1) • 4mm Allen key (x1) • 5mm Allen key (x1) III. Assembly Bolt Kits PART A: Cart Handle A. KIT BAG #1 1.
  • Page 5 ZeroSpot Portable Deionized Water System III. Assembly Bolt Kits - continuation KIT BAG #2 (x2) (x2) (x2) (x2) (x2) M8 spring lock washer 22Ø M8 flat washers M8 x 20mm hex head bolts 3.0 x 34Ø x13.5Ø with NYLOK patch lock-in flat washers C.

  • Page 6: Before Installation

    ASSEMBLY AND USER GUIDE PORTABLE DEIONIZED WATER SYSTEM BEFORE INSTALLATION Please inspect the system and components inside the box to make sure nothing is damaged during ship- ping. If the system or any of the components are damaged, please stop the installation and contact Global Water Solutions for support.

  • Page 7: Installation Instructions

    ZeroSpot Portable Deionized Water System INSTALLATION INSTRUCTIONS 1. To install Part E (front stabilizer) with Part C (cart main structure), open the kit bag #1. Use 4mm Allen key to secure two M6 x 34mm hex bolts on one end, place a (1) 16Ø M6 flat washer first and then (2) M6 spring lock washer before the (3) nut and use the 10mm wrench to tighten the nut.
  • Page 8 ASSEMBLY AND USER GUIDE PORTABLE DEIONIZED WATER SYSTEM 2. To install Part D (axle assembly) to the Part C (cart main structure), (See Fig. 2.1), use kit bag #2. Align the axle assembly with the cart main structure to ensure the foot pedal is facing out. (See Fig. 2.2) Use 5mm Allen key to secure two M8 x 20mm hex bolts place (1) first and then M8 spring lock washer (2) 22Ø...
  • Page 9 ZeroSpot Portable Deionized Water System 3. To install wheels, use kit bag #2. The installation sequence is (1) wheel (2) washer (3) locking pin. Repeat steps on the other side. Please note: the rounded side of the flat washer should face the wheel. (See Fig. 3.2) KIT BAG #2 (x2) Side view...
  • Page 10 ASSEMBLY AND USER GUIDE PORTABLE DEIONIZED WATER SYSTEM 5. To install Part B (housing bracket) to the cart’s main structure, open kit bag #3. Align the bracket with the cart’s main structure, the welded nut should face toward the back (See Fig. 5.2) Use 5mm Allen key to secure M8 x 19mm hex bolts to install the bracket to the main cart structure.
  • Page 11 ZeroSpot Portable Deionized Water System 6. To install the filter housing assembly to the cart bracket, open kit bag #3. Use 5mm Allen key to secure the M8 x 25mm hex bolt, place M6 washer first and then the M6 spring washer before securing the bolts. Use the 12mm wrench to install the M8 nut on the other end.
  • Page 12 ASSEMBLY AND USER GUIDE PORTABLE DEIONIZED WATER SYSTEM Please note: ensure to align the white housing bracket’s opening with the black housing bracket’s female thread (See Fig. 6.4). If it is not aligned when the bolts and nuts are installed, a clear gap can be observed between the two brackets.
  • Page 13 ZeroSpot Portable Deionized Water System 8. Place a towel underneath the housing. Turn housing wrench clockwise to loosen the housings. (See Fig. 8.1). Each housing weighs roughly 4 kg. Use both hands to manually unscrew the housing from the cap.. Completely unscrew the housing from the cap.
  • Page 14 ASSEMBLY AND USER GUIDE PORTABLE DEIONIZED WATER SYSTEM 10. Check the housing O-ring to ensure it is properly seated in the O-ring gland (See Fig. 8.5) and the car- tridges gasket is seated on the top lid (See Fig. 8.6), then reinstall the housing back to the cap screwing counterclockwise.

  • Page 15: Item Checklist

    ZeroSpot Portable Deionized Water System I. Required accessories (not included in the package) Garden hose (x2) + sprayer (x1) (See Fig. 1 and 2) Fig. 2 - Sprayer Fig. 1 - Garden hose User Guide Ensure incoming water is shut off. Use garden hose to connect system to water supply through connection marked “IN”.
  • Page 16 ASSEMBLY AND USER GUIDE PORTABLE DEIONIZED WATER SYSTEM C. Cartridge Replacement Setup: 1. Turn housing wrench clockwise to loosen the housings. (See Fig. 3). Clockwise Fig. 3 - Use housing wrench to loosen the housing 2. Place a towel underneath the housing. While unscrewing be sure to hold the housing with both hand as the weight of the housing with water is roughly 7 kg.
  • Page 17 ZeroSpot Portable Deionized Water System C. Cartridge Replacement Setup: continuation 3. Remove exhausted cartridge from housing. Pour out any water left inside the housing, then insert the new cartridge. (See Fig. 5 and 6). Fig. 5 - Remove exhausted cartridge Fig.

  • Page 18: Tds Measurement

    TDS MEASUREMENT USER GUIDE PORTABLE DEIONIZED WATER SYSTEM TDS Measurement TDS Meter (included inside the package) Treatment capacity and cartridge life highly depend on feed water quality, especially hardness. Hardness measured as TDS, will determine the amount of deionized water your ZeroSpot system can produce. Please visit www.globalwatersolutions.com/products/zerospot/ and refer to the Treatment Capacity Table for guidance.

  • Page 19: Standard Limited Warranty

    PORTABLE DEIONIZED WATER SYSTEM Global Water Solutions (“GWS”) warrants its products will be free of defects in material and workmanship under nor- mal usage conditions beginning on the date of purchase and continuing for a period of one (1) year from the date of original purchase.
  • Page 20 Have questions or need assistance? www.globalwatersolutions.com rev1.4 © 2022/04 globalwatersolutions...
