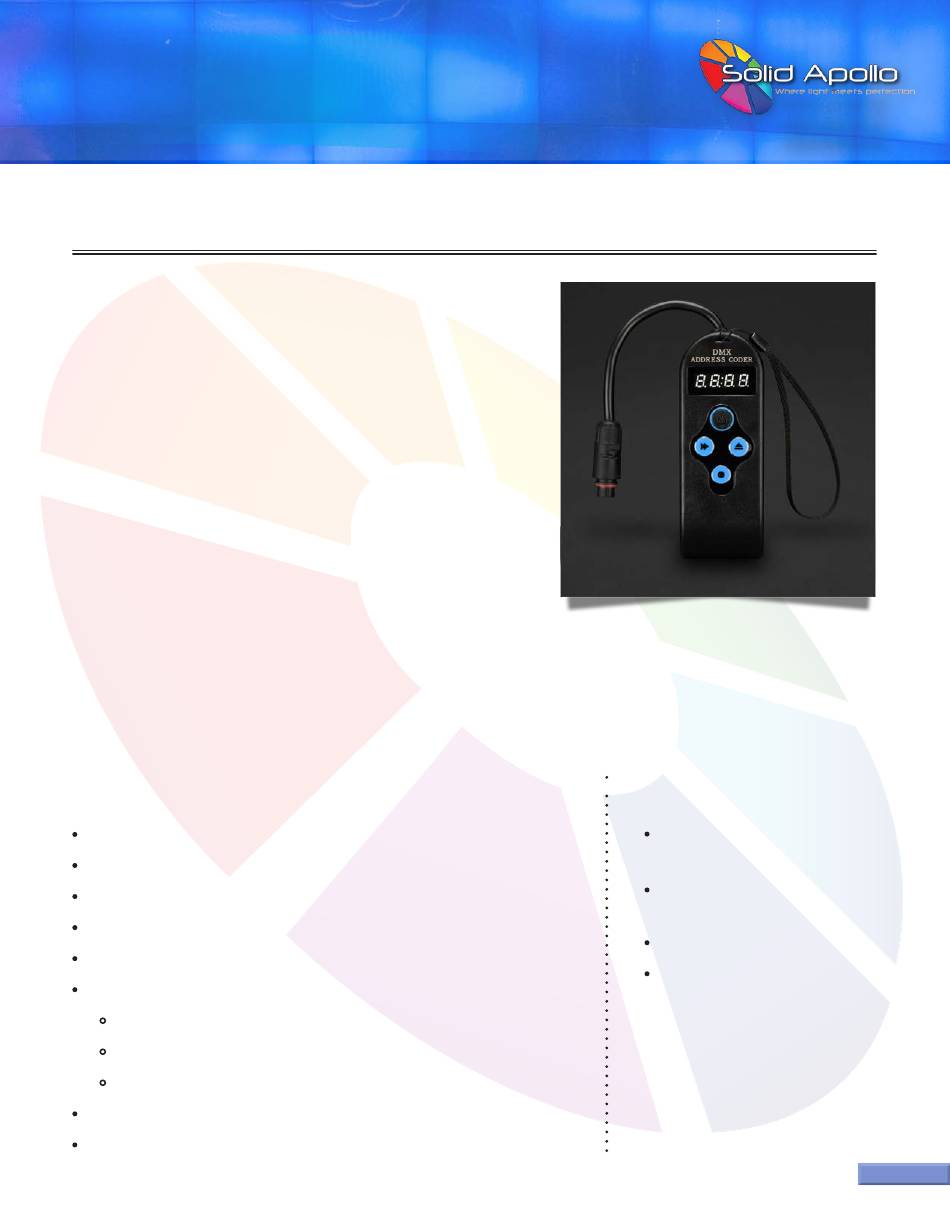

PRODUCT MANUAL
DMX Addresser
Product Description
Thank you for purchasing Solid Apollo' s DMX Addresser!
Solid Apollo's DMX Addresser has been designed to manually set
DMX Address for Solid Apollo products such as the Slim Ray 9 RGB
LED Spot light 60W, ECO Flood Wallwasher 40W and LED Light Bars.
This handy DMX Addresser conveniently allows you to set programs
& functions, set DMX addresses and effortlessly daisy-chain multiple
Slim Ray 9 RGB LED Spot light 60W, Eco Flood Wallwasher 40W or
LED Light Bars.

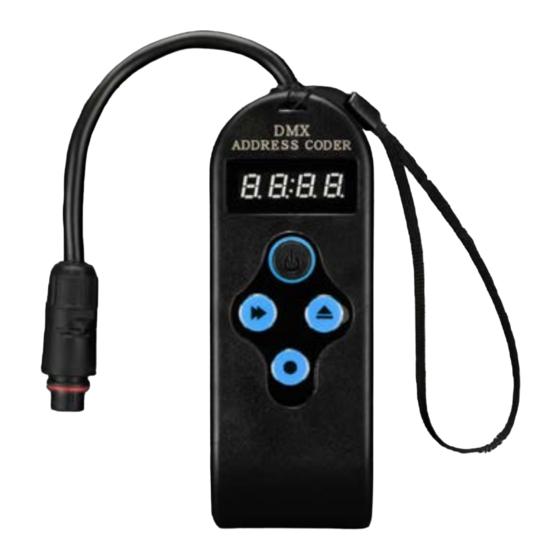

The DMX Addresser is easy to use! It features a simple 4 push button
control consisting of a Power Button, Forward Button, Up Button and
Confirm Button. The 4-Digit LED display makes it easy to navigate
through various programmable features and functions.
The DMX Addresser is super lightweight and can easily be stored or
transported virtually anywhere. Thanks to its ergonomic design, the
DMX Addresser fits comfortably on your hands for a secure grip -
perfect for on-field installations.
Product Features
Conveniently Set DMX Addresses and Programs
Can Set Up to 512 Channels and Easily Daisy-Chain Multiple DMX Fixtures
Easy to Read 4-Digit LED Display
User-Friendly 4 Button Controls Including On/Off
Durable Plastic Encasing Featuring Ergonomic Design
Programmable & Personalize Lighting Sequences:
7 Single Pre-Set Colors
3 Special Lighting Effects: Jumping, Flashing & Fade Effect
9 Speed Adjustments and 9 Brightness Levels
Waterproof IP68 Female XLR Cable Included
Includes 9V Lithium Battery (Installed in Unit)
Toll Free. 425-582-7533
www.SolidApollo.com
info@SolidApollo.com
DMX Addresser
Manual will Review
Product Dimensions and
Button Functionalities
Installation and
Programming Instructions
Technical Information
Troubleshooting
™
page 1
