PRODUCT MANUAL

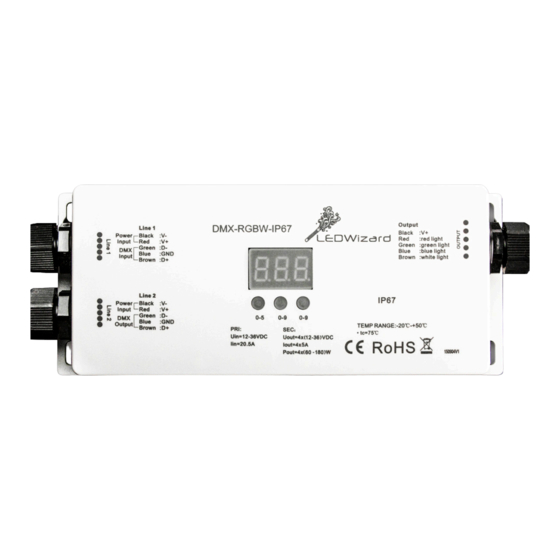

Waterproof 4 Channel DMX to RGB-W LED Controller
Product Description
Thank you for purchasing Solid Apollos' Waterproof
4 Channel DMX to RGBW LED Controller. It is a
new standard in DMX to RGBW or RGBA 4 Channel
DMX Interfaces. If you currently have a DMX512
controller or any DMX capable control unit, this
is the perfect device for controlling RGB/RGBW
products, like RGB LED strip, RGB lamps etc. You
may also easily daisy-chain multiple units for
additional RGB/RGBW outputs.
This DMX to RGBW LED Controller converts DMX signals to RGBW in a seemless and easy-to-use way.
This second generation receiver/controller has a 3-Digit LED Display which makes it simple to set: DMX
addresses, channel assignments, refresh rates and dimming configurations.
Features
• 1 to 4 channel configuration
• Waterproof to IP67
• High refresh rates
• Converts DMX signals to Single Color, Two Color, RGBW or RGBA formats
• Easy to use digital readout
• DMX512 compatible
• DMX Address selection LED display
• Logarithmic and Linear dimming options
• DMX & power IN and OUT
• RoHs, CE certified
• 12, 24, and 36 Volt operation
• 3 year warranty
Contents
Product Description and Features ............................................................................ 1
Installation ............................................................................................................... 2
Connecting Multiple Controllers ............................................................................... 2
Using your DMX to RGBW Controller ......................................................................... 3
Channel Operation .................................................................................................... 3
DMX Address Selection ............................................................................................ 4
Setting the Refresh Rate .......................................................................................... 5
Setting the Dimming Options ................................................................................... 5
Technical Parameters ............................................................................................... 6
™
Toll Free. 866-592-3873
www.SolidApollo.com
sales@SolidApollo.com
page 1
Advertisement
Table of Contents
Related Manuals for Solid Apollo SA-CTRL-DMX-RGBW-IP66
Summary of Contents for Solid Apollo SA-CTRL-DMX-RGBW-IP66
- Page 1 ™ PRODUCT MANUAL Waterproof 4 Channel DMX to RGB-W LED Controller Toll Free. 866-592-3873 www.SolidApollo.com sales@SolidApollo.com Product Description Thank you for purchasing Solid Apollos’ Waterproof 4 Channel DMX to RGBW LED Controller. It is a new standard in DMX to RGBW or RGBA 4 Channel DMX Interfaces.
- Page 2 ™ PRODUCT MANUAL Waterproof 4 Channel DMX to RGB-W LED Controller Toll Free. 866-592-3873 www.SolidApollo.com sales@SolidApollo.com Installation Solid Apollos’ Waterproof 4 Channel DMX - RGBW LED Controller acts as an interface between a DMX controller or RGB/RGBW Lighting fixture(s). This part of the Product Manual will show you how to utilize your 4 Channel DMX- RGBW controller with a DMX system, in both standard RGB (three channel operation) and RGBW (four channel operation) as well as One and Two Channel modes.
- Page 3 Powering your Controller To power on your controller, simply connect a12-36V DC transformer such as the Solid Apollo 24V-4A-96W ) to the controller. Your Controller will remain on as long as it is plugged in. Be sure to (SKU: SA-PS-24V-4A-96W have the controller powered before initializing DMX software or hardware-based signal generator.
- Page 4 ™ PRODUCT MANUAL Waterproof 4 Channel DMX to RGB-W LED Controller Toll Free. 866-592-3873 www.SolidApollo.com sales@SolidApollo.com Assigning a DMX Address 1. To select a DMX address for your controller, you can use Button 1 to select the hundreds value. By pressing button 1, you can change the first digit i.e.
- Page 5 ™ PRODUCT MANUAL Waterproof 4 Channel DMX to RGB-W LED Controller Toll Free. 866-592-3873 www.SolidApollo.com sales@SolidApollo.com Setting the Refresh Rate This four channel DMX to RGBW controller can switch between 200Hz and 1500Hz refresh rate or PWM frequency. To change the refresh rate: 1.
- Page 6 • 1-4 Channel Operation (Single Color, Dynamic White - two color, RGB and RGBW) • Max 240 Watts of power @ 12V DC • Max 480 Watts of power @ 24V DC • IP67 • DMX 512 Operation • DMX Channels: 512 • Size: 7.09 x 1.5 x 2.88 Inches • Weight: .3 Pounds • 30-115 SKU: SA-CTRL-DMX-RGBW-IP66 page 6...
