Summary of Contents for idomus IDO-HOME

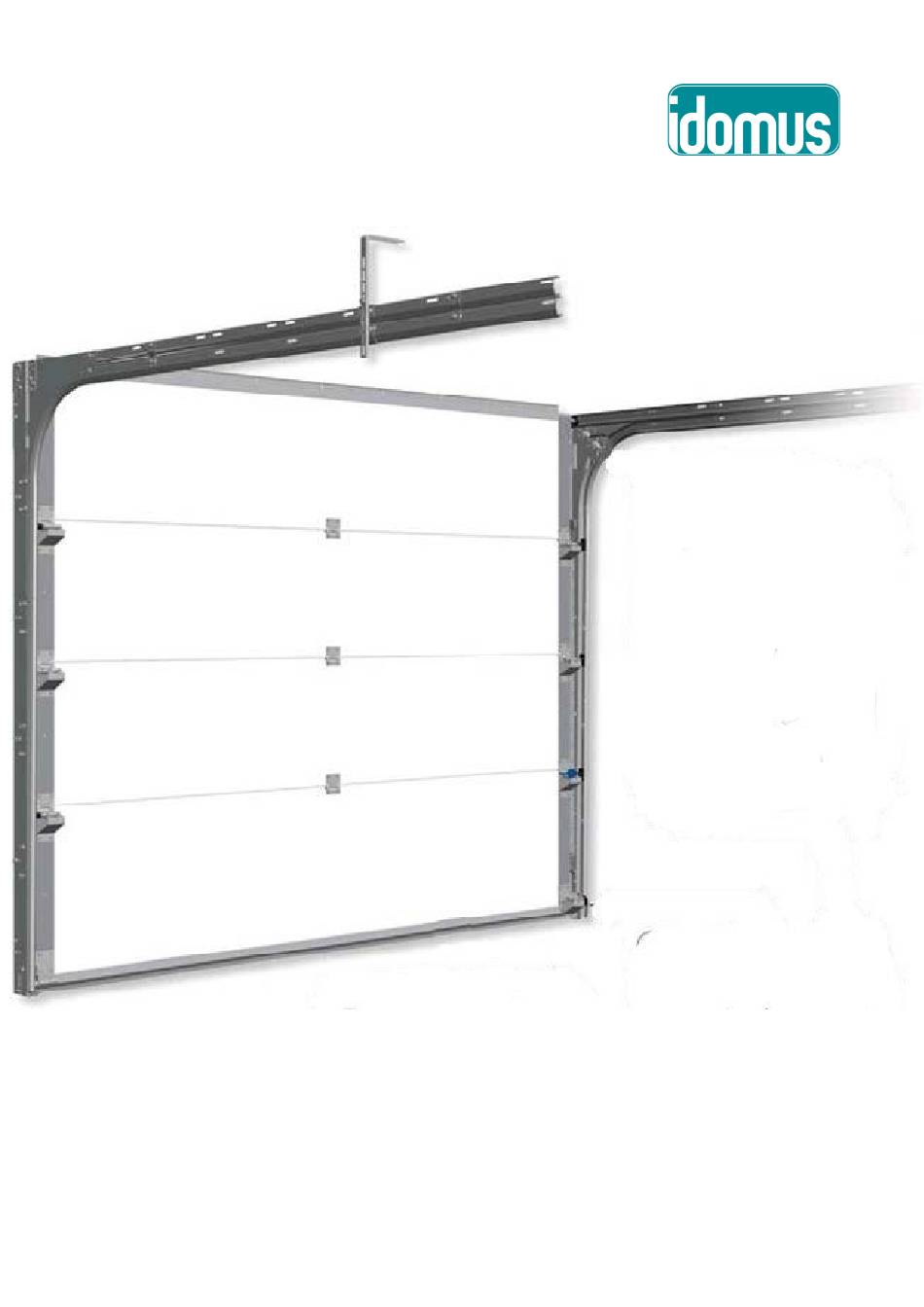

- Page 1 USER MANUAL / DOOR PASSPORT...
-
Page 3: Table Of Contents
3.3 Environmental conditions 3.4 Control 3.5 Remote control SAFETY 4.1 Hazards 4.1 Safety 4.1 Precautions EXPLANATION OF SYMBOLS OPERATING TIME AND FAULTS 6.1.1 COMPACT, COMPACT+ models 6.1.2 IDO-HOME, IDO-PRO models 6.2 Minor disturbances INSPECTION, MAINTENANCE AND REPAIR DOOR PASSPORT WARRANTY... -
Page 4: Introduction
The garage door construction consists of a segment plane and steel parts thanks to which the plane of the door moves up and down and opens or closes the door opening. IDO-HOME, IDO-COMPACT, IDO-COMPACT+, IDO-PRO (sound and thermally insulated metal door) The door section is of a “sandwich” construction: two steel sheets with polyurethane foam filler between them. The section is 40... -
Page 5: General Part
USER MANUAL 3. GENERAL PART 3.1. SCOPE OF USE The garage door is designed to close the opening of the building, for cars to drive in and/or for people to enter. Using the garage door for other purposes is prohibited. Read installation and user manuals carefully before using the garage door. -
Page 6: Safety
SAFETY All doors of IDO-HOME, IDO-PRO models have spring break guards. In the event of a spring breakage, these guards prevent the door from falling. 4 springs are used in the doors of IDO-COMPACT AND IDO-COMPACT + models. If one spring breaks, the increase in load on the other springs is within the limits allowed by the legislation (does not exceed 20 kg). -
Page 7: Explanation Of Symbols
The durability of the door parts is 100,000 cycles (1 cycle - one door lifting and lowering). The average durability of the faster- wearing parts (springs, ropes) is 20,000 cycles for IDO-HOME doors, and 25,000 cycles for IDO-PRO doors. 6.2. -
Page 8: Inspection, Maintenance And Repair
USER MANUAL 7. INSPECTION, MAINTENANCE AND REPAIR • Maintenance of the door must be carried out by a qualified professional or company. • According to EU standards, the door must be regularly maintained and inspected starting from the first use. A qualified professional, having installed the door, according to the instructions contained in the installation instructions for that door model, must lubricate the door immediately after its installation. -
Page 9: Door Passport
DOOR PASSPORT This door passport contains technical references to the TECHNICAL ASSISTANCE installed product and records of its maintenance, repairs Name and modifications, which must be available to authorized persons during any inspections Ad d ress Tele phone No CLIENT: Name, address, responsible person IDO-COMPACT+ PRODUCT TYPE:... - Page 10 WORKS PERFORMED (INSTALLATION, COMMISSIONING, TECHNICIAN CLIENT DATE: ADJUSTMENT, INSPECTION, REPAIR, SIGNATURE SIGNATURE REPLACEMENT OF SAFETY DEVICES)
- Page 11 “Idomus”, UAB shall not be liable for mechanical damage caused during transportation. • If after 6 months after the repair of equipment, the Customer does not take it back, “Idomus”, UAB shall have the right to no longer store the equipment.
- Page 12 FRONT SPRINGS BACK SPRINGS...
- Page 13 SIDE SPRINGS WICKET DOOR...
- Page 16 UAB „IDOMUS“ ▎ V. Krėvės av. 129, Kaunas ▎ Tel.: +370 37 308 900 ▎ info@idomus.lt ▎ www.idomus.lt ▎...
