SATO KEIRYOKI TM-27 Instruction Manual

Thank you for purchasing the Non-contact type countdown timer model TM-27.
Read this manual thoroughly before using and keep it in a safe place for your future reference.

Features

This TM-27 timer does not have a start button. You can start the timer by only putting your hand over the sensor by
adopting Non-contact sensor. This timer is hygienic safety because without touching the unit can start it.

Names of Components

LCD Display
(Running time (sec.) is displayed)
Setting Button

How to Use

Before use, remove the transparent tape put in the battery compartment for insulation.
Set the countdown time with the setting button (available between 5 to 90 sec. by 5 sec.)
(By pressings the setting button during countdown, the countdown runs down and the set time is displayed.
1) Put your hand over the sensor. Buzzer (Beep ---) sounds and the timer goes into countdown.
2) When zero is reached, "00" blinks in the display and buzzer (Beep---) sounds. When the sound stops,
display returns to the set time.
* If you put your hand over the sensor between buzzer sounds, buzzer and blink stop and the set time is displayed.
Mount
 Desktop Use
Pull out the stand at the backside of the unit for table standing.
 Wall-Mount Use
Fix the unit with the magnet at the backside on a metallic part. The attached mounting plate is applicable to mount the
timer to the walls and tiles.

The non-contact sensor may be abnormally charged due to the influence of static electricity or the like and may not
respond even if you put your hand over the sensor part, or it works for no action. In this case, leave it for about 2
minutes and adapt to the surrounding environment it will be normal operation.
Instruction Manual

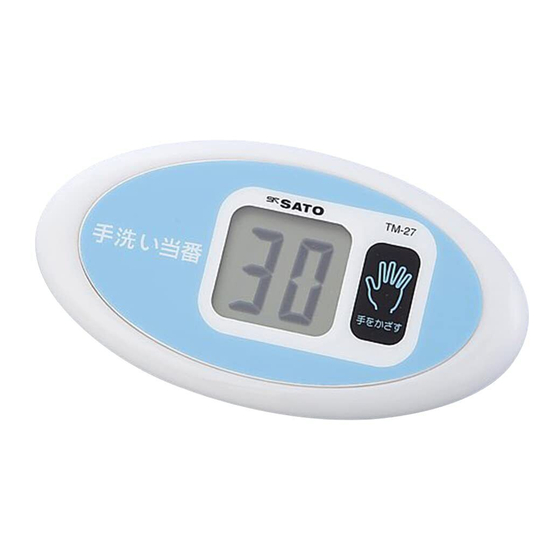

Countdown Timer Model TM-27
<Front View>
<Rear View>
Magnet
Sensor
(Non-contact sensor senses the hand
and timer starts. Sensitivity is about
3cm vertically from sensor.)
1
Hooking Hole
Battery
Compartment Lid
buzzer
Stand
