Thank you for purchasing the Multifunctional timer model TM-35.
Read this manual thoroughly before using and keep it in a safe place for your future references.
Features
.
Four timers are displayed at the same time
. Repeat function that can repeatedly display the set time
. Timer and Clock is switchable in T1 display section
Names of Components
T1/Clock
display
section
Setting keys
Hour/Minute▲ key
Minute/Second▲ key
How to Use
⚫
Switching clock and timer.
Press the Clock/Timer switch button on the back of the unit to switch the clock display and timer display in T1
display section.
* When clock is displayed, press "T1" key to switch the display to timer.
⚫
Adjusting the clock time
① Press the Clock/Timer switch button on the back of the body to display the clock in the T1 display section
② Hold the Clock/Timer switch button for approx. 2 sec. and "12hr" is blinking. If the 24-hour display is
required, select "24hr" by pressing the Hour/Minute▲ key or the Minute/Second▲ key. Select "12hr"
for the 12-hour display.
* When the 12-hour display is selected, "AM" or "PM" lights.
③ Press the Clock/Timer switch button. Then hour and minute displays are blinking. Set hour by pressing
the Hour/Minute▲ key and also set minute by pressing the Minute/Second▲ key.
. Holding down the key will quickly change numbers.
. If no button is pressed for 30 seconds, automatically the setting is completed and it returns to the Clock
display.
④ Press the Clock/Timer switch button to complete the setting and it returns to the Clock display

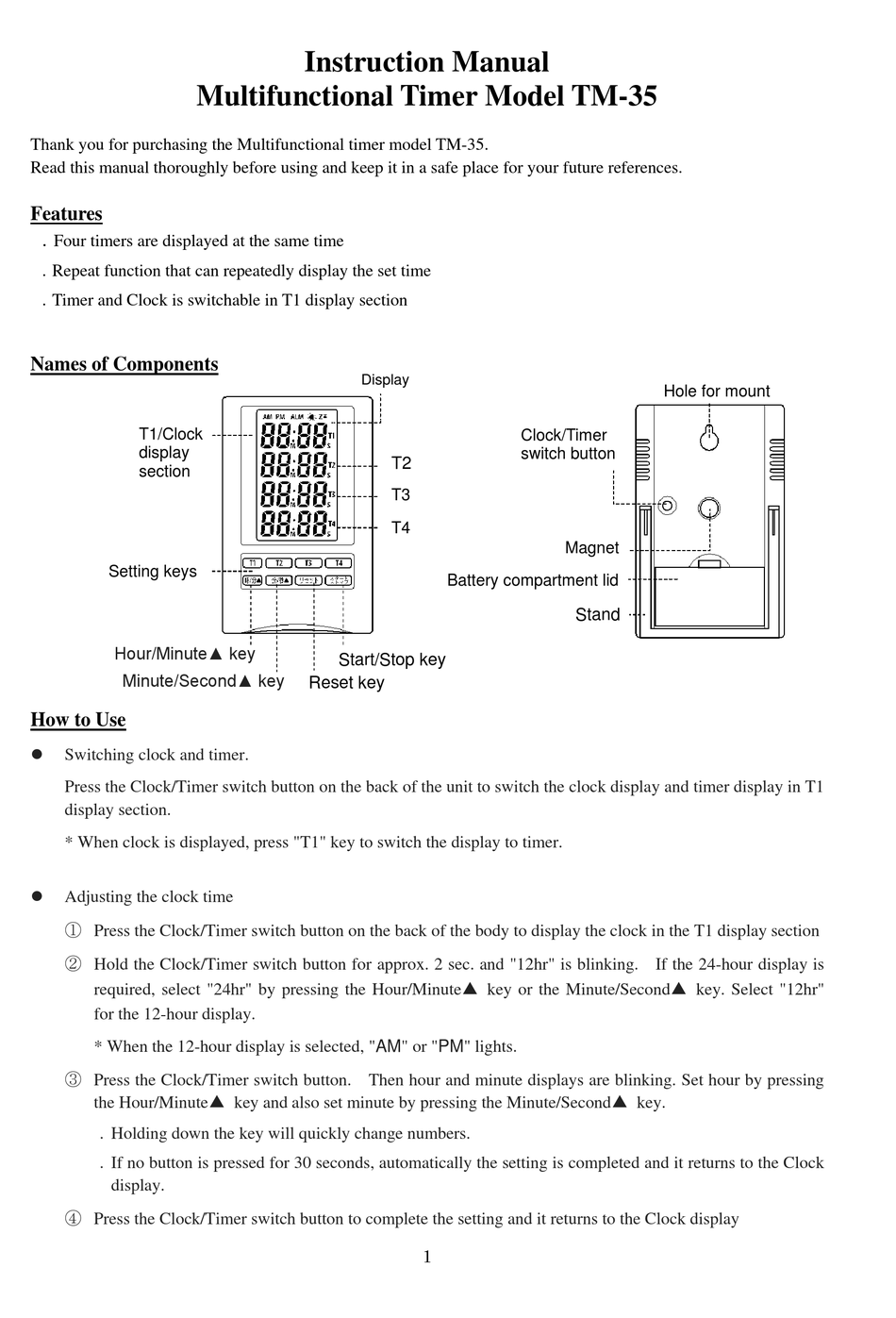

Instruction Manual

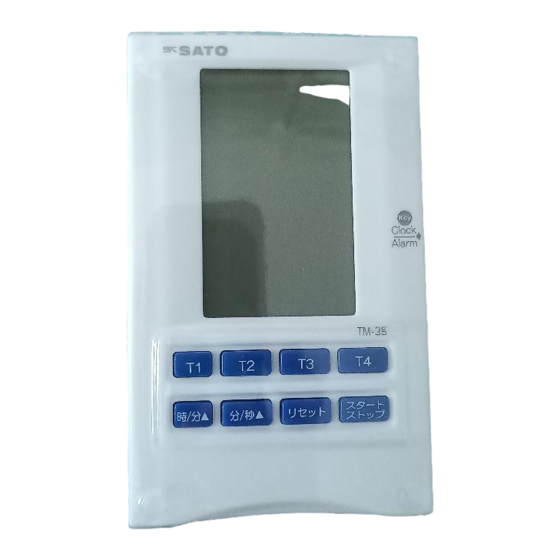

Multifunctional Timer Model TM-35
Start/Stop key
Reset key
Display
Clock/Timer
switch button
T2
T3
T4
Battery compartment lid
1
Hole for mount
Magnet
Stand
Advertisement
Table of Contents
Related Manuals for SATO KEIRYOKI TM-35
Summary of Contents for SATO KEIRYOKI TM-35
- Page 1 Instruction Manual Multifunctional Timer Model TM-35 Thank you for purchasing the Multifunctional timer model TM-35. Read this manual thoroughly before using and keep it in a safe place for your future references. Features Four timers are displayed at the same time .
- Page 2 ⚫ Setting the alarm ① Press the Clock/Timer switch button on the back of the unit to display the clock in the T1 display section ② Press the Clock/Timer switch button again and "ALM" is blinking ③ Hold the Clock/Timer switch button for approx. 2 sec. Hour and minute are blinking and " "...
- Page 3 ⚫ Setting the count-up time * This is an example in T1 display section. For T2, T3 or T4, read T1 as T2, T3 or T4 ① Press T1 key and "T1" is blinking. Press the Reset key to display 00 min. 00sec. ②...
- Page 4 Specifications Cat. No. : 1708-02 Name : Multifunctional Timer Model : TM-35 Timer : Countdown time : Between 1 sec. to 99 min. 59 sec. Count-up time : Between 1 sec. to 99 min. 59 sec. Clock : 12-hour display/24-hour-display (instrumental error: ±30 sec. per month) Power Requirements : "AAA"...
