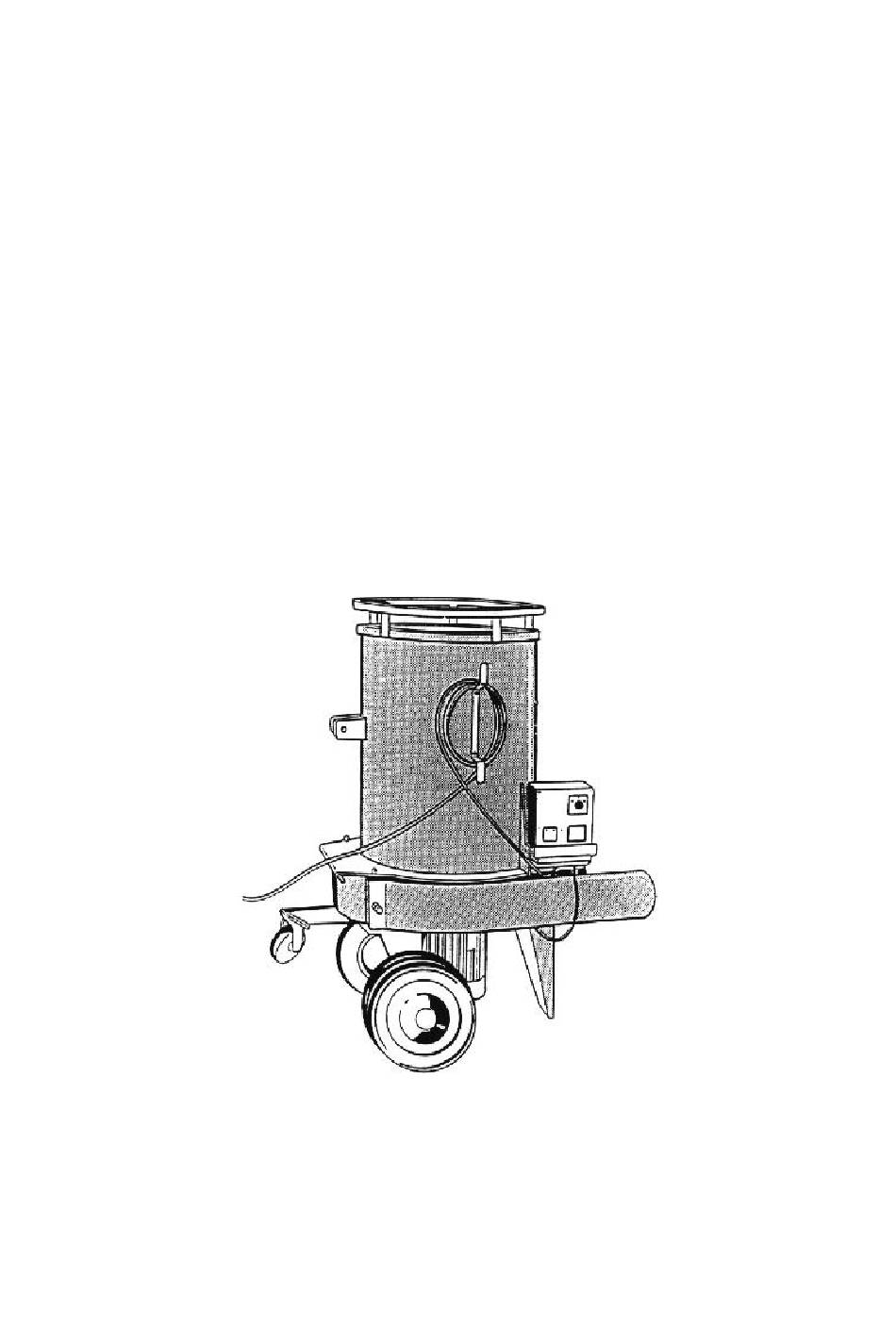

- Page 1 USE AND MAINTENANCE HANDBOOK TPF 15 CHOPPER VERSIONS AVAILABLE: Electric version Petrol version PLEASE READ THIS HANDBOOK THOROUGHLY BEFORE OPERATING THE MACHINE.
-
Page 2: General Conditions Of Warranty
12 months. 3 - CARAVAGGI has the right to inspect the CHOPPER and the components for which claims are made under the warranty in order to verify the validity of the warranty. - Page 3 Caravaggi has many years’ experience in making shredding and composting machines and now produces a full range. Caravaggi TPF 15s are designed to last a long time and to work in complete safety provided that the instructions given in this handbook are followed closely.
- Page 4 2. DIMENSIONS, WEIGHTS AND STICKER POINTS Dimensions Length 1600 Width Height 1450 Weight Kg. 200-300 104 dB WA MAX...
- Page 5 3. STICKERS...
-
Page 6: Safety Rules
1. Do not use your shredder until you have read this handbook thoroughly. A replacement copy can be obtained from: Caravaggi - Via Monte Adamello , 20 - 25037 Pontoglio - BS – ITALY (Keep a separate note of this address.). - Page 7 17. Your chopper has been built in accordance with all the latest safety standards. To ensure that is continues to work efficiently and safely, always use original Caravaggi spare parts. 18. Only the maintenance operations detailed in this handbook should be performed.
- Page 8 5. STARTING UP Electrical version 1. Check that the electric system is grounded to earth and comes with suitable fuses. 2. Check the mains supply has the same intensity as the motor rated power (see the rating plate). 3. Check that there are no foreign bodies inside the machine. 4.
- Page 9 6. OPERATING INSTRUCTIONS Electrical version 1. Fill the feed hopper with material, dropping it without pressing to prevent it from getting blocked. 2. Continue to fill the hopper with material. 3. When the hopper is full, run the machine empty for a couple of minutes. Switch off the motor, moving selector 0//...
-
Page 10: Maintenance
7. MAINTENANCE Perform maintenance operations with the engine or motor switched off, keeping to the safety rules. In the electrical version, remove the power cable. In the petrol version, remove the sparkplug. In the tractor version, disconnect the drive shaft. Replacing the chipping blades 1. -
Page 11: Fault Finding
8. FAULT-FINDING PROBLEM CHECKS THE CHOPPER DOES NOT START UP C + D DIFFICULT START-UP OR LOW POWER B + F THE CHOPPER SPEED FALLS OR RUNS A + B + E UNEVENLY EXCESSIVE VIBRATION DROP QUANTITY MATERIAL A + E DELIVERED ACTION CHECK THE MILLING TOOLS... -
Page 12: Maintenance Schedule
9. MAINTENANCE SCHEDULE AT THE EVERY AT THE START OF START OF END OF SEASON WORK SEASON SPART-IGNITION ENGINE CONTROL attached attached attached handbook handbook handbook ELECTRIC MOTOR CONTROL DRIVE SHAFT AND GEARMOTOR CONTROL CONTROL OF SCREW TORQUE, HOPPER AND OTHER COMPONENTS ... -
Page 13: Declaration Of Conformity
10. DECLARATION OF CONFORMITY Caravaggi declares, under its own responsibility, that the following machine: 15 CHOPPER, available in the versions with motor, petrol engine and tractor power takeoff, complies with the main Health and Safety Rules in accordance with EC Directives 89/336... - Page 14 CARAVAGGI MACCHINE INDUSTRIALI Via Monte Adamello , 20 I - 25037 Pontoglio, Brescia, Italy Tel. 030 7470464 - Fax 030 7470004 e-mail info@caravaggi.com http://www.caravaggi.com 0104...
