Installation INSTRUCTIONS

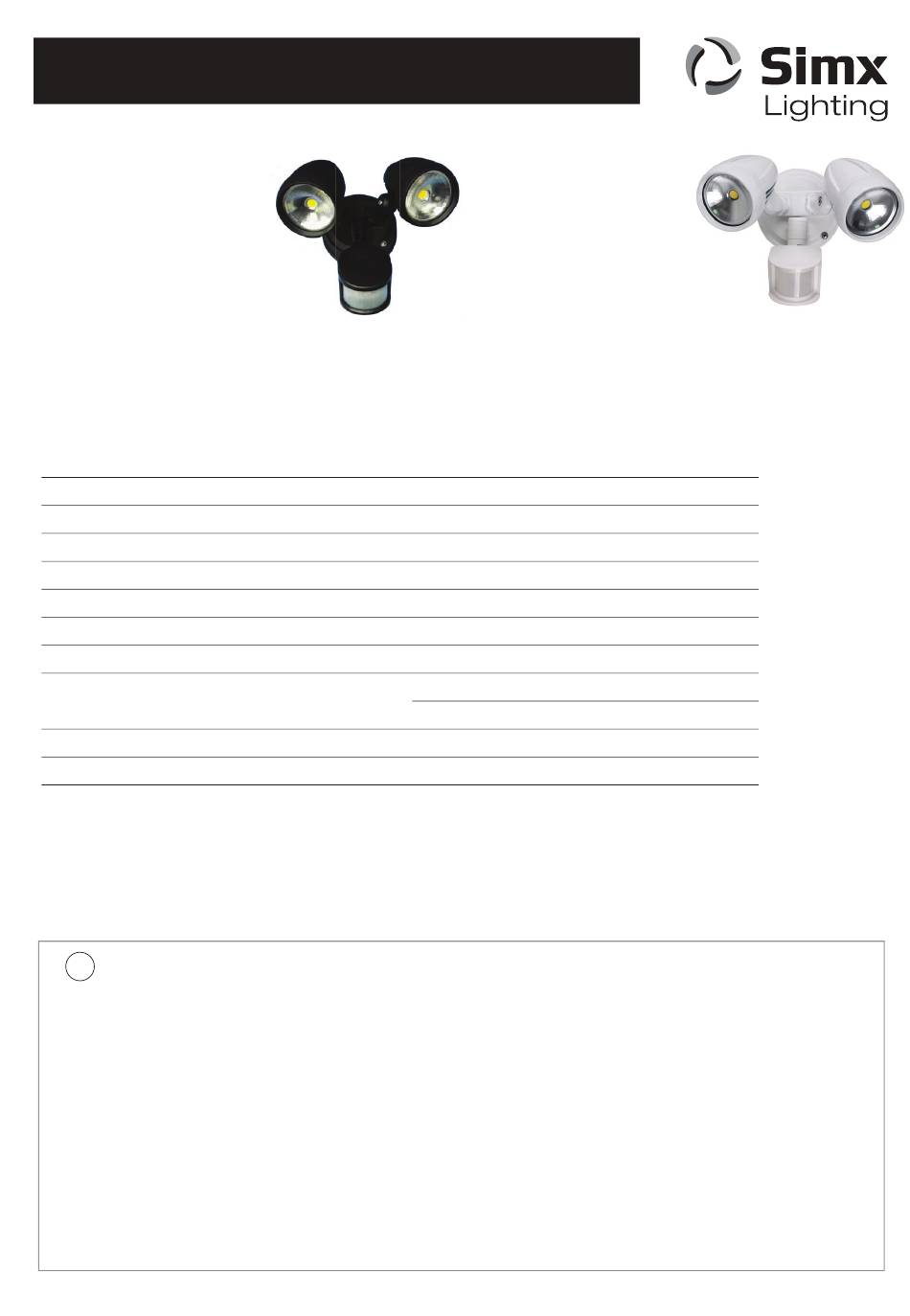

LED ECOSPOT PIR
2 x 8W LED SENSOR LIGHT
LHT0244 BLACK
The Simx Lighting LED EcoSpot PIR sensor light is suitable for sheltered exterior locations. It requires
a 230V AC power supply to operate and should be installed by a registered electrician. Please read
this manual before installation and retain for future reference.
TECHNICAL SPECIFICATIONS
Power Supply
Max Rated Load
Standby Power
PIR Switching Capacity
PIR Aiming Adjustment
Detection Range
Lumens
Time On Setting
Dusk Control
IP Rating
Specifications are subject to change without notice
!
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC, 50/60Hz.
All electrical work must be carried out in accordance with local and national electrical codes as
applicable. We strongly recommend that this light fitting is installed by a registered electrician.
Always switch the power off prior to installation. A means of mains power isolation must be installed
in the circuit for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety.
Young children should be supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval
of the manufacturer, will void any and all stated warranties.
LED ECOSPOT PIR
2 x 8W LED SENSOR LIGHT
LHT0250 WHITE
220-240V AC
16W LED
1W (sensor head only)
300W
Pan/tilt
Max. 12m Ø at 180°
1440 (total)
Min (10±5) sec
Max (4±1) min
Day to night (adjustable)
IP44
