FEATURES

CHRONOGRAPH

- Display of section and total lap.
- Measure up to 9 hours 59 minutes 59.99 seconds.
- 8 Recallable Lap time memories.
- Lap counter counting up to 99.
TIME
- Presettalbe countdown timer, maximum 10 hours count down.
- 30 seconds shuttle countdown for time out.

PACEMAKER

- Presettable from 0.1 sec/beat (600 beats/min.)
- Beatcounter counting up 99.

CHRONOGRAPH OPERATION

- Depress D to select the operating mode. The 'CHRONO' indicator is shown. Depress A to start.
- Depress B to read the lap time. The lap time (section lap) is shown at upper row, the split time
(total elapsed time) is shown lower row.
- After 10 seconds the display will automatically be released to show the running lap time at the top
row and the running total time at the lower row, the LAP counter automatically advances by 1.

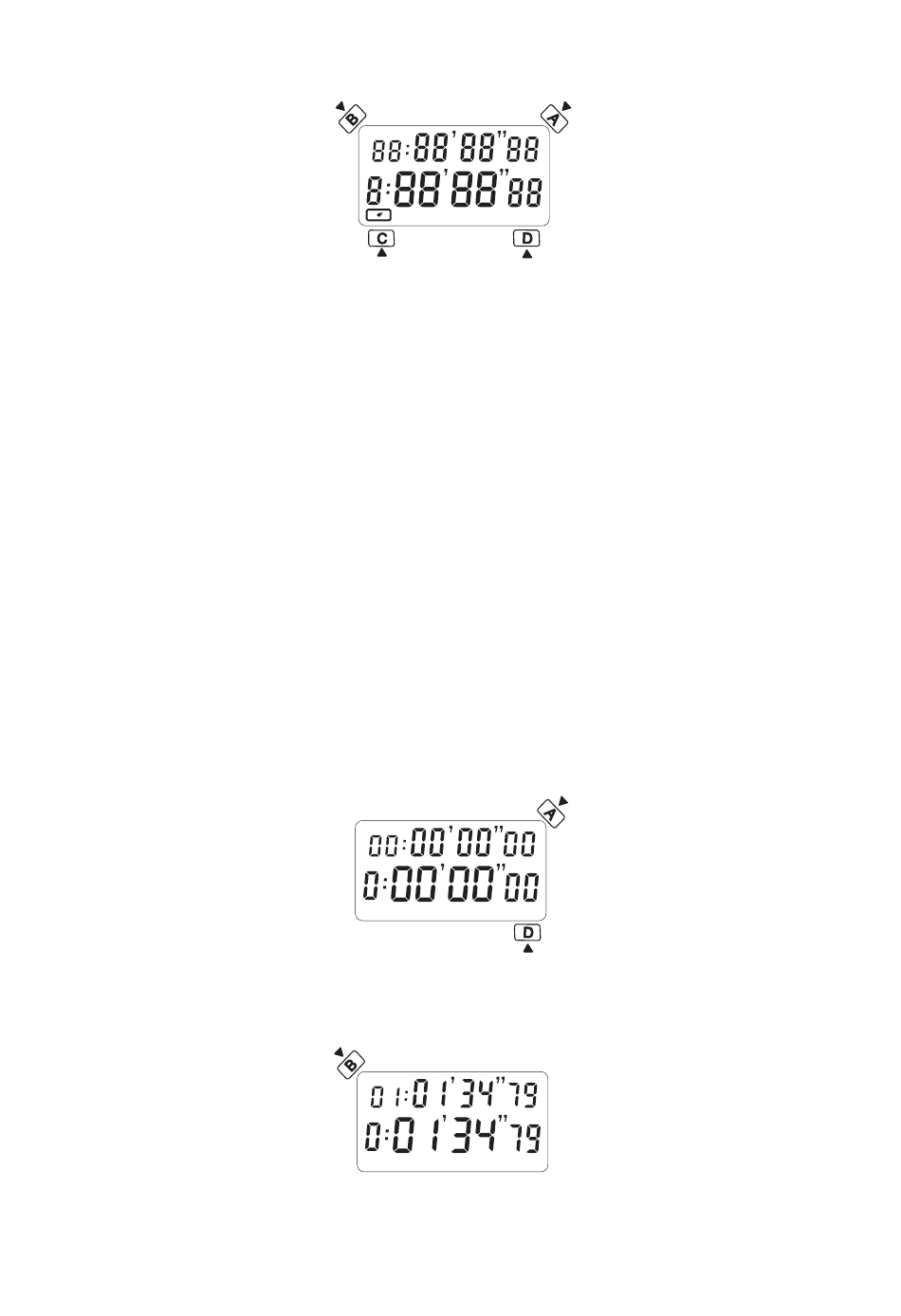

DT 480, DT 480A, DT 480EL STOPWATCH
OPERATING INSTRUSTIONS
COUNT
MEMORY
1/100
LAP
RUN
CHRONO
STOP
COUNT
1/100
CHRONO
COUNT
1/100
CHRONO
LAP
RUN
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT 480 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digi Sport Instruments DT 480

  • Page 1 DT 480, DT 480A, DT 480EL STOPWATCH OPERATING INSTRUSTIONS COUNT MEMORY 1/100 CHRONO STOP FEATURES CHRONOGRAPH - Display of section and total lap. - Measure up to 9 hours 59 minutes 59.99 seconds. - 8 Recallable Lap time memories. - Lap counter counting up to 99.
  • Page 2 COUNT 1/100 CHRONO - Depress B to latch the second split time. COUNT COUNT MEMORY 1/100 1/100 1/100 CHRONO CHRONO STOP CHRONO STOP - Depress A to stop counting. - If A is depressed within 10 sec., i.e. before the display is released to running, depress B to read total time and the last lap time.
  • Page 3 - The 2 digits under the COUNT indicator is a counter to record the number of completed preset time cycles. (count will be blanked out if preset time is greater than or equal to 1 hour). - Start/stop timer by depressing A. COUNT COUNT COUNT...
  • Page 4 CARE OF YOUR STOPWATCH WATER RESISTANCE - The stopwatch is designed to withstand accidental contact with water such as splashes or rain, but it is not designed for use in water. Do not operate the buttons when the stopwatch is wet. TEMPERATURE - Do not leave your stopwatch under direct sunlight or in very high temperatures for a long time, the display may become black.
