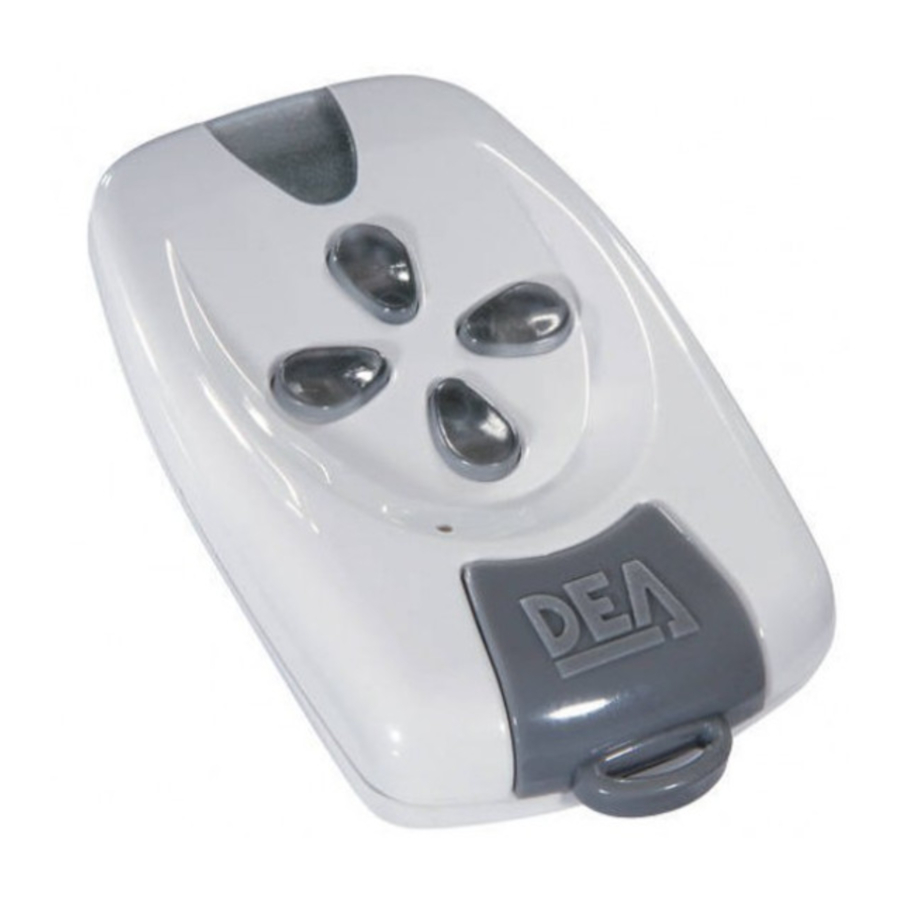

DEA TR2, TR4, TS2, TS4 - Remote Control For Automatic Gate Manual

Table of Contents

Contents

1 Technical characteristics
2 Conformity
3 Operating instructions
4 Receiver memorizing
5 Batteries replacement
6 Product disposal
7 Documents / Resources
- 7.1 References
- 7.2 Download manual

Technical characteristics

		Self-learning key on series 26X receivers
		Code customerization with SFERA

Power by battery	alkaline 12V A23
Working frequency	433,92 MHz 868 MHz (TS2 - TS4)
Capacity	50-150 m (433,92 MHz) 40-120 m (868 MHz)
Coding type	66 bit KEELOQ® rollingcode
Number of channels	2 (TR2, TS2) 4 (TR4, TS4)

Conformity

DEA System radio devices comply with to all technical regulations regarding the product as requested by ED rules 2006/95/CE, 2004/108/CE and 1999/5/CE therefore intended to be marketed in the following States Members of the EEC: Italy, France, Germany, U.K., Portugal, Spain and Belgium, the Netherlands, Poland and Ireland. Dea System assures quality and compliance with standard 2002/95/CE (RoHS) of materials used for the product assembly. The Declaration of Conformity may be consulted by entering "http://www.deasystem.com".

Operating instructions

Remotes TR2, TR4, TS2 e TS4 transmit a 66 bit variable code based on the "KEELOQ®" encryption protocol and can be used together with DEA System receivers art. 251, 252, 251/2, 262, 261/2 and all DEA System control panels with built in radio receiver. Every remote is programmed inside the factory with a serial univocal number. Used together with the programmer "SFERA", it permits the installer to personalize the transmitted code (for more details refer to the programmer instructions manual).

Receiver memorizing

For the remotes memorizing procedure, refer to the receiver or control panel instructions manual.

Remember anyway that these remotes have an hidden key that enables the receiver learning procedure by positioning near it without physically getting access (by using another memorized one).

Batteries replacement

Follow these instructions to disassemble or replace batteries:

Remove the battery plastic cover by using a screwdriver, if necessary;
Replace the battery;
Close the plastic cover checking that the receiver correctly works.

Use only this kind of battery. Please send exhausted batteries for disposal according to laws in force.

Product disposal

This electrical product must not be disposed as a municipal mixed waste but in compliance with UE 2002/96/CE (RAEE) regulation and by disposing it at the local municipal point of collection for an appropriate recycling.

DEA SYSTEM S.p. A.
Via Della Tecnica, 6 - ITALY
36013 PIOVENE ROCCHETTE (VI) tel. +39 0445 550789 fax +39 0445 550265
Internet http://www.deasystem.com
e-mail: deasystem@deasystem.com
