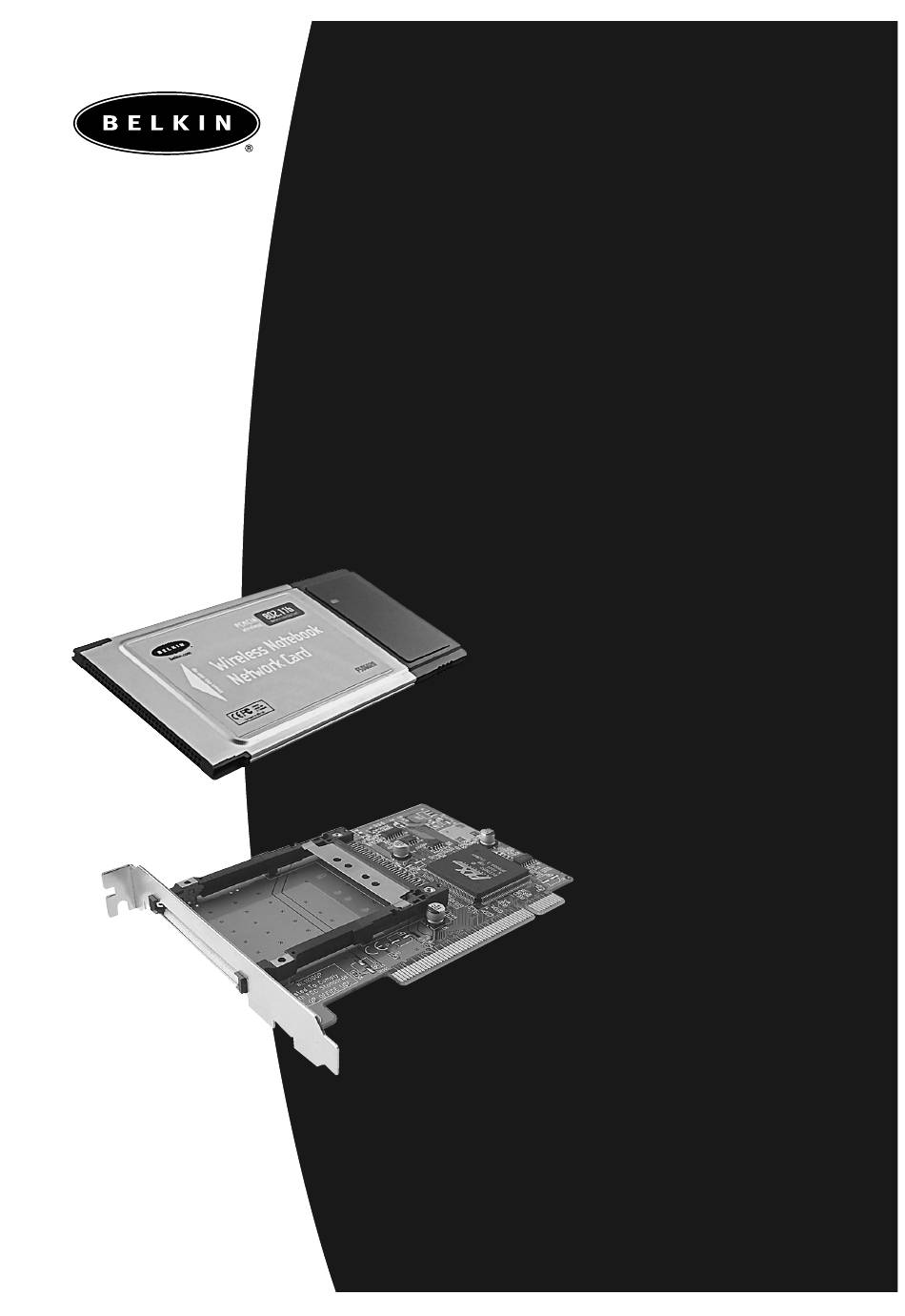

- Page 1 Wireless Notebook Network Card Wireless Desktop Network Adapter User Manual F5D6020 F5D6000...
-
Page 2: Table Of Contents
Installing the Notebook Network Card Drivers for Windows NT ..21–22 Installing Belkin 11Mbps Wireless Setup Utility ..... . 23 Using the Belkin 11Mbps Wireless Setup Utility . -
Page 3: Introduction
Introduction Thank You for purchasing the Belkin 11Mbps Wireless Desktop Network Adapter and/or the Belkin 11Mbps Wireless Notebook Network Card. Now you can take advantage of the wireless world of networking that frees you from using cables with your home or office network. The Wireless Network Card Adapter serves as a way for your PCs to communicate on a wireless network. -
Page 4: Overview
Overview There are two ways to use your Wireless Notebook Network Adapter. 1. Use in a desktop computer with the optional PCI adapter. If you are using the Optional PCI adapter, go to the section on page 3 titled "Installing the Wireless Notebook Network Adapter using the Optional PCI Adapter"... -
Page 5: Installing The Wireless Notebook Network Adapter Using The Optional Pci Adapter
Installing the Wireless Notebook Network Adapter using the Optional PCI Adapter 1. Network cards are sensitive to static electricity, which can damage their delicate electronic components. To protect your device, always: Touch the metal chassis of your computer before you pick up the card. This grounds the electrostatic charge. - Page 6 Installing the Wireless Notebook Network Adapter using the Optional PCI Adapter 6. Secure the card into the slot using a standard case screw. 7. Carefully insert the Wireless Notebook Network Card into the slot on the Wireless Desktop Network Adapter until it connects to the Network adapter.
-
Page 7: Installing The Pci Drivers For Windows 95
Installing the PCI drivers for Windows 95 1. Turn on the power to the PC. After Windows starts up, Windows will automatically detect that a new device has been installed and will display the following windows. Insert the CD into your CD-ROM drive. 2. - Page 8 6. Windows will now ask you to restart. Click "Yes" to restart your computer. Hardware and software driver installation is now complete for Windows 95. The next step is to install the Belkin 11Mbps Wireless Setup Utility. Go to page 23.
-
Page 9: Installing The Pci Drivers For Windows 98/Me
Installing the PCI drivers for Windows 98/Me 1. Turn on the power to the PC. After Windows starts up, Windows will automatically detect that a new device has been installed and will display the following window: 2. The "Add New Hardware Wizard" will begin. Click "Next". 3. - Page 10 Hardware and software driver installation is now complete for Windows 98/ME. The next step is to install the Belkin 11Mbps Wireless Setup Utility. Go to page 23.
-
Page 11: Installing The Pci Drivers For Windows 2000
Installing the PCI drivers for Windows 2000 1. Turn on the power to the PC. After Windows starts up, Windows will automatically detect that a new device has been installed and will display the following window: 2. The "Found New Hardware Wizard"... - Page 12 Installing the PCI drivers for Windows 2000 4. This screen will appear. Insert the CD (provided with the card) into your CD-ROM drive. Select "CD-ROM drive" then click "Next". 5. This screen will appear. Click "Next". 6. The "Digital Signature Not Found"...
- Page 13 Click "Finish" to complete the installation. If Windows prompts you to restart your computer, do so. Hardware and software driver installation is now complete for Windows 2000. The next step is to install the Belkin 11Mbps Wireless Setup Utility. Go to page 23.
-
Page 14: Installing The Pci Drivers For Windows Nt
"Settings" then click on "Control" panel to open the "Control Panel" Window. 3. Double-click on the "Network Icon". The screen below will appear. A list of adapter may appear in the window, however the Belkin PCI adapter will not. Click on "Add". - Page 15 Wireless PCI Adapter Card" then click "OK". 6. This screen will appear. Click "OK". Hardware and driver installation is now complete for Windows NT. The next step is to install the Belkin 11Mbps Wireless Setup Utility. Go to page 23.
-
Page 16: Installing The Notebook Network Card In Your Notebook Pc

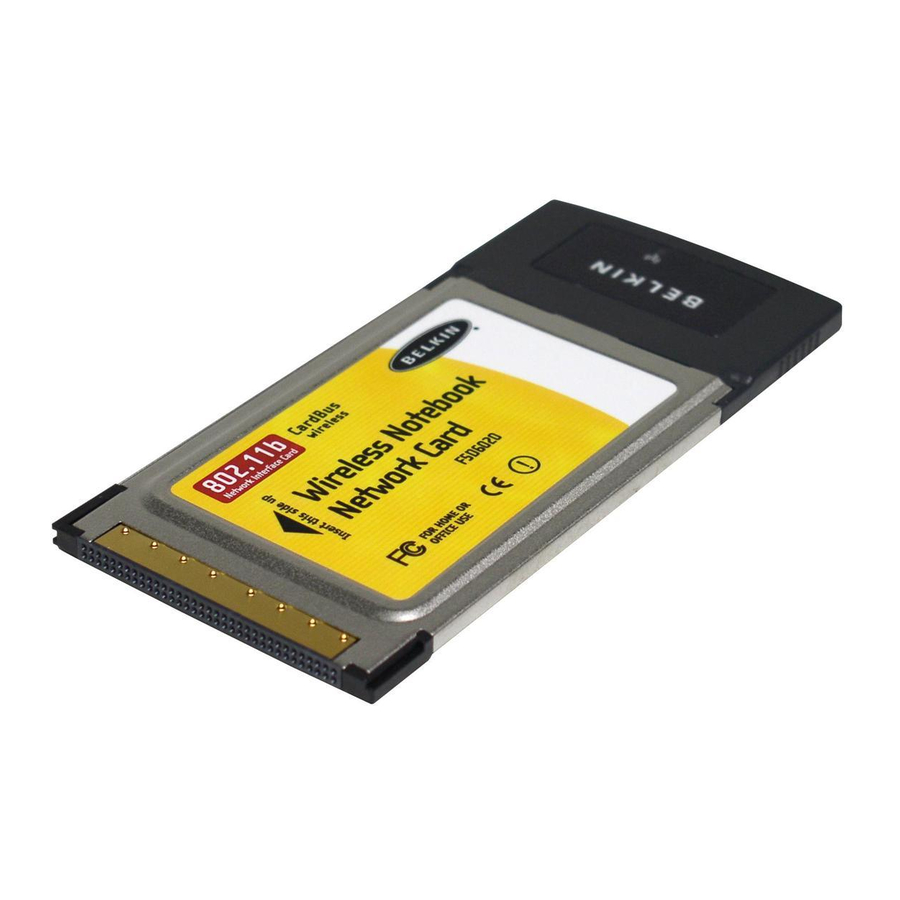

Installing the Notebook Network Card in your Notebook PC 1. Insert the Wireless Notebook Network Card in the PCMCIA slot of your notebook with the color label facing up. 2. Install the drivers for your particular operating system. Go to the next section that applies to your operating system. -
Page 17: Installing The Notebook Network Card Drivers For Windows 95
Installing the Notebook Network Card Drivers for Windows 95 1. Turn on the power to your laptop PC. After Windows starts up, Windows will automatically detect that a new device has been installed and will display the windows Below. Insert the CD into your CD-ROM drive. - Page 18 6. Windows will now ask you to restart. Click "Yes" to restart your computer. Hardware and software driver installation is now complete for Windows 95. The next step is to install the Belkin 11Mbps Wireless Setup Utility. Go to page 23.
-
Page 19: Installing The Notebook Network Card Drivers For Windows 98/Me
Installing the Notebook Network Card Drivers for Windows 98/Me 1. Insert the PCMCIA card into your Notebook PC. Turn on the power to the PC. After Windows 98/Me starts up, the "Add New Hardware Wizard" will begin. Click "Next". 2. When asked, "What do you want Windows to do?"... - Page 20 Hardware and software driver installation is now complete for Windows 98/ME. The next step is to install the Belkin 11Mbps Wireless Setup Utility. Go to page 23.
