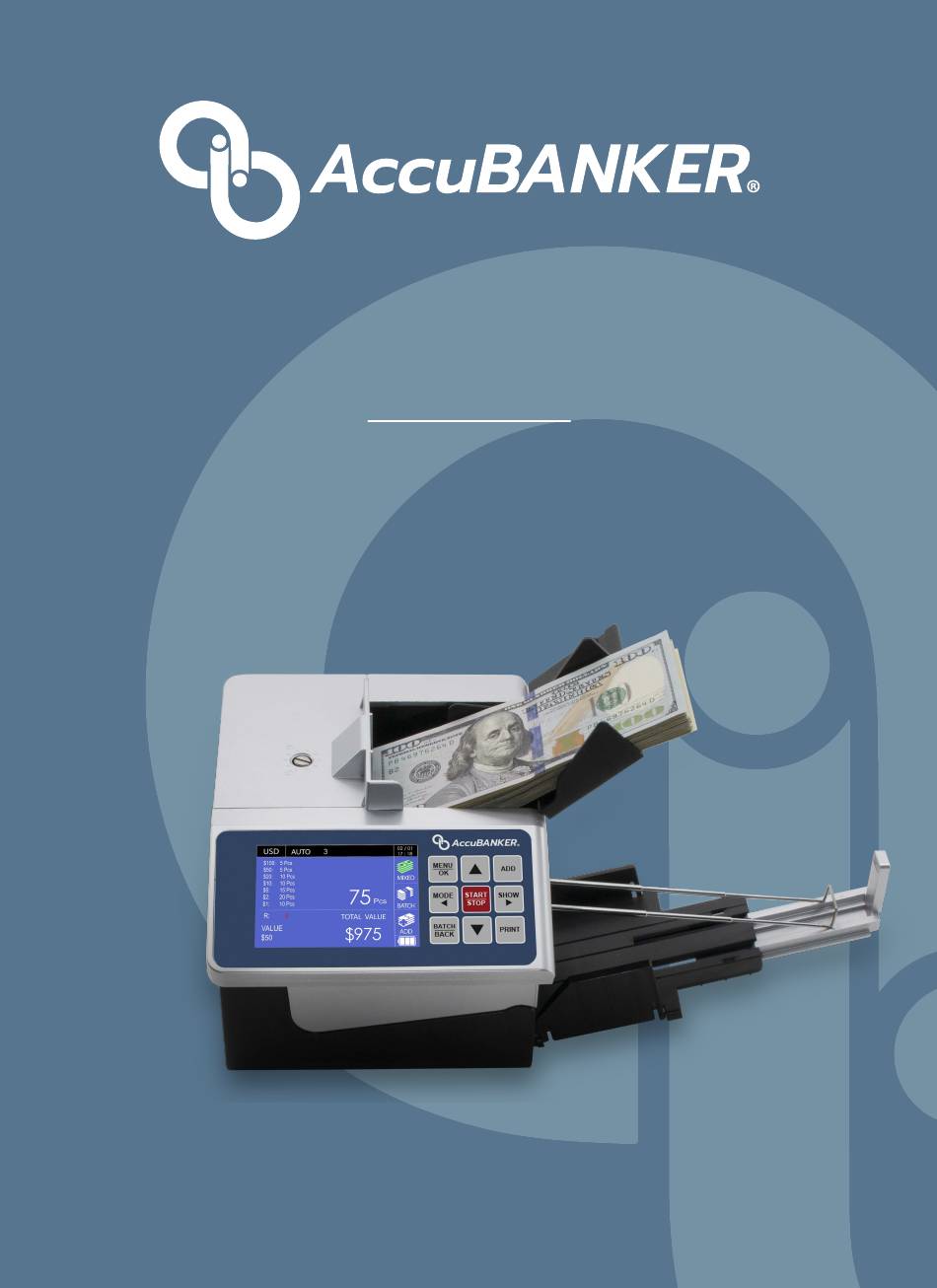

- Page 1 User Guide D700 Duo Automatic Value and Counterfeit Bill Detector www.AccuBANKER.com...
- Page 2 Thank you for trusting AccuBANKER with your cash handling needs. In order to optimize the performance of your equipment, we encourage you to thoroughly read this user guide prior to use. www.AccuBANKER.com...
-
Page 3: Table Of Contents
Table of Contents Introduction ..................... 4 Safety Instructions ..................5 1. Box Contents ....................7 2. Equipment Overview .................. 8 3. Getting Started ..................10 3.1 Powering On ..................10 3.2 Battery Indicator.................. 11 3.3 Setting up the Bill Exit Tray ..............12 3.4 Setting up the Bill Entrance Tray ............ -
Page 4: Introduction
Introduction The D700 incorporates the most sophisticated techniques for the evaluation and detection of counterfeit bills. The D700 allows the user to switch between two pre-programmed currencies. This detector assesses the security features that are present on each bill in detail and determines if the bills are genuine or suspicious while automatically alerting the user, both visually and audibly. -
Page 5: Safety Instructions
Safety Instructions Warning Do not use this product in areas where it may be exposed to water or other liquids. Unplug this product from the electric outlet before cleaning. Do not use liquid or aerosol cleaners. To clean, use a damp cloth. To reduce the risk of electric shock, do not disassemble this product. - Page 6 Safety Instructions (cont.) • Read and understand all of the safety instructions. • Follow all warnings and instructions marked on the unit. • This product is meant to be operated in an indoor environment with proper ventilation. • Do not place near direct sunlight, heat sources, or air conditioners. •...
-
Page 7: Box Contents
1. Box Contents 1. D700 2. Power Adapter 3. Calibration Card 4. Rechargeable Lithium Battery (Sold separately) 5. User Guide & Quick Start Guide 6. Warranty Booklet 7. Cleaning Brush ® Warranty English Spanish French... -
Page 8: Equipment Overview
2. Equipment Overview 1. Thickness Adjustment Knob 7. Micro SD Card slot 2. LCD Display (Update Software) 3. Bill Feeding Channel 8. Control Panel 4. Bill Guider Extension 9. Stacker Tray 5. Bill Guider 10. Stacker Tray Extension 6. Hopper Tray... - Page 9 2. Equipment Overview (cont.) 11. Bill Exit Guider 15. On/Off Switch 12. Bill Exit Channel 16. Power Adapter Connector 13. Opening Latch 17. USB Port (Service) 14. Serial Port for Printer 18. Battery Compartment (Printer is Optional & Sold 19. Kickstand Separately) 11 12 16 17...
-
Page 10: Getting Started
3. Getting Started 3.1 Powering On The D700 can either be connected to a power outlet or powered by a rechargeable lithium-ion battery. A. Power Adapter Connection Connect the power adapter to • the back of the machine and plug it into the electrical outlet. -
Page 11: Battery Indicator
3. Getting Started (cont.) B. Battery Installation • Remove the battery • Connect the battery cable to the compartment cover. machine, insert the battery into the compartment, and close the cover. 3.2 Battery Indicator When the rechargeable battery is connected the battery indicator on the LCD display will show the life of the battery. -
Page 12: Setting Up The Bill Exit Tray
3. Getting Started (cont.) 3.3 Setting up the Bill Exit Tray Open the bill exit tray. • Expand the guider and bill exit tray completely. •... -
Page 13: Setting Up The Bill Entrance Tray
3. Getting Started (cont.) 3.4 Setting up the Bill Entrance Tray Open the bill entrance tray. • Adjust the guider according to the bill’s width and move the extension • toward the bill feeding channel. -
Page 14: Setting Up The Kickstand
3. Getting Started (cont.) 3.5 Setting up the Kickstand We recommend the use of the kickstand for better support during the verification and counting of bills. Carefully turn the equipment on its • side. On the bottom panel, you will find the kickstand. -
Page 15: Bill Positioning
3. Getting Started (cont.) 3.6 Bill Positioning This detector can verify the authenticity of bills in any orientation. • To verify the bills correctly, they must be inserted completely aligned • to the left. Then, gently adjust the bill guider to fit the bills. Use Figures 1 and 2 as references. -
Page 16: Control Panel
4. Control Panel 4.1 Control Panel Description MENU START MODE SHOW STOP BATCH PRINT BACK START / STOP: Used to start, resume, or stop the counting operation. • MENU / OK: Access the user menu to customize the unit. It also •... - Page 17 4. Control Panel (cont.) BATCH / BACK: Used to activate batch count selection and to move • back through the User Menu. Press the button to activate the batch function and set the quantity. The default number of pieces is 100. Press the buttons to increase or decrease the number by +/- 10.
-
Page 18: Lcd Display Description
4. Control Panel (cont.) 4.2 LCD Display Description 1. Currency Selected 8. Denomination of the Last 2. Automatic or Manual Start Mode Verified Bill 3. Sensor Level 9. Total Number of Verified 4. Batch Quantity Selected Banknotes 5. Date and Time (24-hour time 10. -
Page 19: Set Up Menu Description
4. Control Panel (cont.) 4.3 Set Up Menu Description SETUP MENU COUNT SETTINGS SERVICE CURRENCY REPORT DATE SENSOR SOFTWARE ABOUT & TIME UPDATE ADJUST COUNT REPORT: In this function, the user can see the details of the • last count. While on this screen, you can also print the counting results. - Page 20 4. Control Panel (cont.) 2. Show Denomination: When activated, the denomination of the SETTINGS last bill processed will be AUTO 1.Start Mode displayed on the screen as it 2.Show Denomination counts. Change to ON or OFF to 3.Show Suspicious Bill Count activate or deactivate this 4.LEVEL function.
- Page 21 4. Control Panel (cont.) ABOUT: Used to view the information, specifications, and version of • the software currently programmed. SENSOR ADJUST: Used to calibrate the counterfeit detection sensors. • For more details on how to adjust these sensors, see section 5.4 Sensor Calibration.
-
Page 22: Troubleshooting And Maintenance
5. Troubleshooting and Maintenance 5.1 Suspicious Bill Warning The D700 detector verifies the Magnetic (MG), Infrared (IR), Watermark (WM), Ultraviolet (UV), Banknote Thickness (TD), Length, and other security features present on bills. If any of these security features do not pass the banknote verification process, an error message (FAILED) will appear on the screen. -
Page 23: Preventive Measures
5. Troubleshooting and Maintenance (cont.) 5.2 Preventive Measures To maintain optimal performance of the detector, please note the following: 1. Avoid direct exposure to powerful sources of light as well as magnetic interference (e.g. microwaves, cell phones, or Wi-Fi equipment), which will affect the sensors of the detector. -
Page 24: Jamming
5. Troubleshooting and Maintenance (cont.) 5.3 Jamming If a bill or other object accidentally gets stuck inside the detector, follow these steps: 1. Turn off the detector immediately. 2. Use the opening latch to access the interior compartment. Open the equipment to access the interior detection channel. -
Page 25: Ir Sensor Calibration
5. Troubleshooting and Maintenance (cont.) 5.4 IR Sensor Calibration If the detector rejects an unusual number of bills, the sensors may need to be calibrated. To do this, follow these steps: 1. Use the calibration card that comes with the kit to calibrate the sensors. - Page 26 5. Troubleshooting and Maintenance (cont.) 5.4 IR Sensor Calibration (cont.) 5. Close the compartment, leaving the card inside the detection channel. 6. Press Menu to enter the set-up menu and use the navigation keys to scroll and select the sensor adjustment mode. (SENSOR ADJUST) 7.
-
Page 27: Maintenance
2. Use the brush to remove the dust and, if possible, use compressed air for the best results. 3. Use an alcohol swab to remove dirt on the magnetic heads. Visit www.accubanker.com to purchase a Maintenance Kit. -
Page 28: Feeding Gap Thickness Adjustment
5. Troubleshooting and Maintenance (cont.) 5.7 Feeding Gap Thickness Adjustment Proceed with this calibration when the bills are not fed smoothly through the machine or several error messages are occurring too often like Count Error, Length Error, etc. Other reasons that might require readjusting the feeding gap are: The counting of new or mint condition bills The counting of poor or bad fitness condition bills Polymer bills and Paper-made bills counted together... -
Page 29: Software Updates
6. Software Updates To install new software, follow these steps: 1. Visit www.accubanker.com/pages/Support-D700 to check if a software update is available. If there is a new update, download and copy the programming software to a microSD card (16GB or less). -
Page 30: Error Messages
7. Error Messages During its operation, the unit may report some error messages to notify the operator of an incident or anomaly detected. The table below describes the possible error messages and possible solutions. If any issue persists, please contact our Technical Support team for further assistance. - Page 31 7. Error Codes (cont.) Detection Error Codes ERROR CAUSE SOLUTION Abnormal Length Pass the bill one more time. If the error persists, try to pass the bill in a Suspicious MG Sensitivity different orientation. Suspicious IR-1 signal Suspicious UV-1 Signal Make sure the bill is in good condition.
-
Page 32: Specifications
8. Specifications Temperature 32° - 104°F (0° - 40°C) Humidity 25% - 80% Display Counting Speed 250 bills/minute (new bills) Feeding System Roller Friction System Feeding Type Top-loading Hopper Capacity 100 bills (new bills) Stacker Capacity 100 bills (new bills) Power Source 100 - 240 VAC 60/50 Hz (INPUT) - Page 33 Note...
- Page 34 AccuBANKER 7104 NW 50th St Miami, FL 33166 9AM- 5PM ET Monday through Friday www.AccuBANKER.com Please give us a call at 1-888-993-2228...
