AccuBANKER LED430 User Manual

Cash + card detector
Hide thumbs Also See for LED430:
Table of Contents

Advertisement

Quick Links

Cash + Card Detector
LED430 / LED420

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED430 and is the answer not in the manual?

Questions and answers

Related Manuals for AccuBANKER LED430

Summary of Contents for AccuBANKER LED430

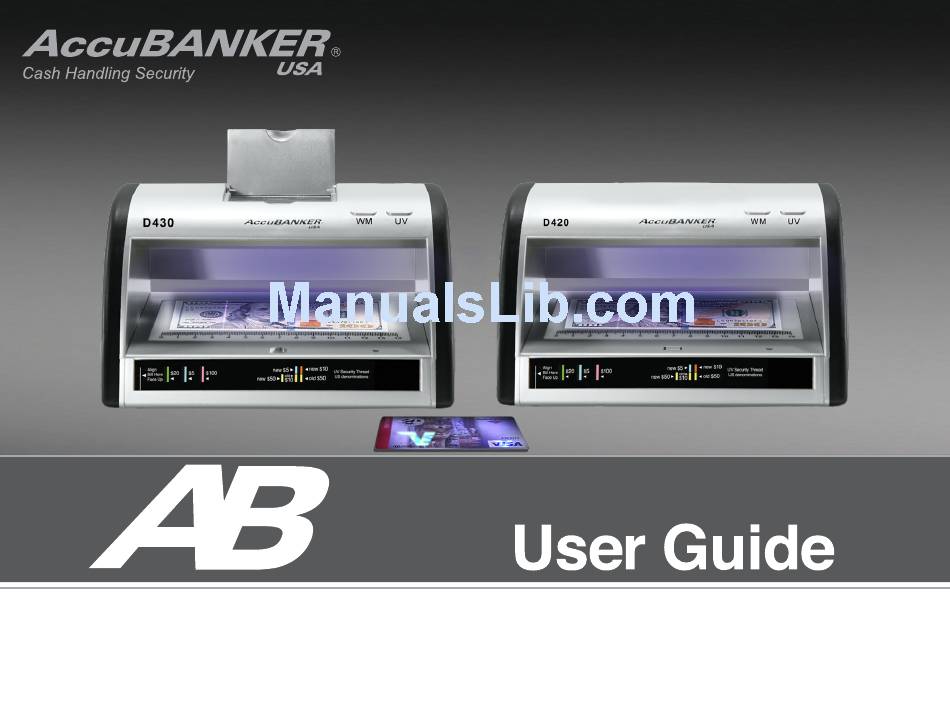

  • Page 1 Cash + Card Detector LED430 / LED420...
  • Page 2 Thank you for purchasing this AccuBANKER product. We recommend reading all information in the user guide to become familiar with this product. Cash Handling Security...

  • Page 3: Important Safety Instructions

    Important Safety Instructions • This device has been designed to operate with this specific Power Supply (AC / DC Adapter which is included. Failing to do so may cause malfunction and may void it’s warranty. • Avoid looking directly the super-bright Ultraviolet LEDs hidden inside the unit. •...
  • Page 4 1. Before Starting Introduction Accurate and convenient to use, the LED420 / LED430 detectors allow the user to inspect either money, Credit Cards, ID’s or any security document and verify and confirm its authenticity. This User Guide will allow you to get familiar with all the details related with the unit’s operation.

  • Page 5: Parts Description

    2. Parts Description 1- Power On / Off indicator 6- Function Activator Sensor 2- Magnifier window (only for LED430) 7- Security Thread Identification Label 3- UV / WM Selector Buttons (Ultraviolet / Watermark) 8- Power Switch 4- Verification Window / Watermark 9- Power Adapter Jack Screen.

  • Page 6: Operation Description

    Operation Description We recommend the users to familiarize themselves with the security features of the bills or documents they want to analyze in order to use the unit appropriately and efficiently. Additionally, we recommend the users to compare any dubious banknote against a good one, to better determine if it is authentic or not.
  • Page 7 Operation Description Ultraviolet Verification Operation (cont.) The UV security features embedded in U.S dollar bills, foreign currencies, Credit Cards, ID’s and other special documents will fluoresce under the UV light and the user will be able to visualize them and confirm their authenticity. NOTE: The detector includes a “Security Thread Identification”...
  • Page 8 The internal timer will keep the WM ON for about 50 sec., in case you require more time, just press the WM button again. 3.3 Magnetic Verification Operation (only for LED430 model) Once the detector is turned ON, the magnetic circuitry is already active and remains so while the unit is ON.
  • Page 9 Operation Description 3.4 Micro-Printing Magnifier (only for LED430 model) Place the bill or document under the magnifier window and proceed to inspect visually the micro-printing elements and fine lines security features embedded in the bill or docu- ment. Any low quality printing is a suspicious sign that must be considered during the final decision.

  • Page 10: Cleaning And Maintenance

    - Keep the MG head and Magnifier clean, use a dry cloth for this (for LED430 model). LEDs NOTE: Be careful with the UV LEDs located inside...

  • Page 11: Specifications

    Specifications • Power Source: External Power Adapter Vin: 100 - 240 VAC / 50-60Hz 0.6A Vout: 12VDC / 1.0 A • Power Consumption : 4 W (Max.) • UV Light Source: Super-Bright UV LEDs • WM Light Source: Super-Bright White LEDs array •...
  • Page 12 Cash Handling Security All support provided from our North American24/7 toll free service center 1-888-594-2228 www.accubanker.com...

This manual is also suitable for:

Led420
