INSTALLATION MANUAL
VIDEO IN MOTION
CANBUS Adapter For
Video in motion
VIDEO IN MOTION is an adapter able to activate the video of a vehicle while driving.
The compatibilities now available are listed in TAB 1.
The unit allows to connect safety devices such as VIDEO IN MOTION in order to see the video whi-
le driving during a parking operation.
To set the right protocol set the dip-switches as described in the caomptibility list.

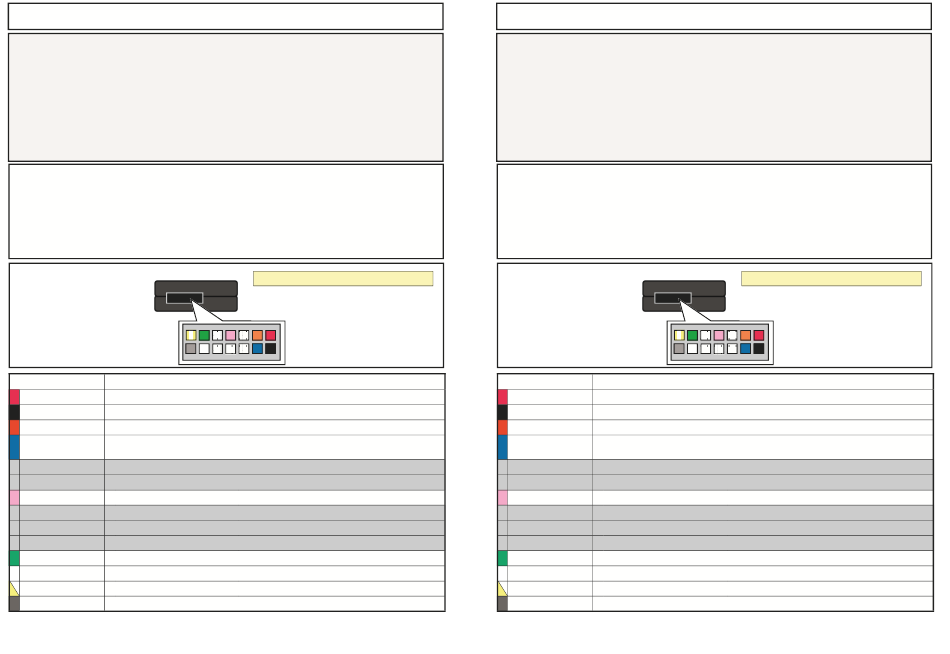

CABLE
RED
BALACK
ORANGE
+ 12 VOLT INPUT CONNECTED OPEN THE VIDEO
BLUE
+ 12 VOLT INPUT CONNECTED OPEN THE VIDEO AFTER THE
PINK
GREEN
CAN H
TO CONNECT TO THE CAN H WIRE FROM THE CAR
WHITE
CAN L
TO CONNECT TO THE CAN L WIRE FROM THE CAR
YELLOW/WHITE
CAN H
TO CONNECT TO THE CAN H WIRE TOWARD THE RADIO
GREY
CAN L
TO CONNECT TO THE CAN L WIRE TOWARD THE RADIO
rev 12.0
DESCRIPTION
CABLE DESCRIPTION
FUNCTION
+ 12V POWER
GND
SEQUENCE
NOT USED
NOT USED
+ 12 V IGNITION OUTPUT
NOT USED
NOT USED
NOT USED
INSTALLATION MANUAL
VIDEO IN MOTION
CANBUS Adapter For
Video in motion
VIDEO IN MOTION is an adapter able to activate the video of a vehicle while driving.
The compatibilities now available are listed in TAB 1.
The unit allows to connect safety devices such as VIDEO IN MOTION in order to see the video whi-
le driving during a parking operation.
To set the right protocol set the dip-switches as described in the caomptibility list.
CABLE
RED
BALACK
ORANGE
+ 12 VOLT INPUT CONNECTED OPEN THE VIDEO
BLUE
+ 12 VOLT INPUT CONNECTED OPEN THE VIDEO AFTER THE
PINK
GREEN
CAN H
TO CONNECT TO THE CAN H WIRE FROM THE CAR
WHITE
CAN L
TO CONNECT TO THE CAN L WIRE FROM THE CAR
YELLOW/WHITE
CAN H
TO CONNECT TO THE CAN H WIRE TOWARD THE RADIO
GREY
CAN L
TO CONNECT TO THE CAN L WIRE TOWARD THE RADIO
rev 12.0
DESCRIPTION
CABLE DESCRIPTION
FUNCTION
+ 12V POWER
GND
SEQUENCE
NOT USED
NOT USED
+ 12 V IGNITION OUTPUT
NOT USED
NOT USED
NOT USED
Advertisement
Table of Contents
Related Manuals for Paser VIDEO IN MOTION
Summary of Contents for Paser VIDEO IN MOTION
- Page 1 The compatibilities now available are listed in TAB 1. The unit allows to connect safety devices such as VIDEO IN MOTION in order to see the video whi- The unit allows to connect safety devices such as VIDEO IN MOTION in order to see the video whi- le driving during a parking operation.
- Page 2 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 YEAR RADIO DIP SWITCHES YEAR RADIO DIP SWITCHES SETTING SETTING MERCEDES MERCEDES A - B - ML - E - R - GL 2007 COMMAND APS 1 ON A - B - ML - E - R - GL...
- Page 3 Video abilitationis disactivated as soon as the 12V polarity on BLUE or ORANGE wire is lost or if we use only the BLUE wire, each time we manage the VIDEO IN MOTION procedure. use only the BLUE wire, each time we manage the VIDEO IN MOTION procedure.
- Page 4 TROUBLESHOOTING TROUBLESHOOTING The unit doesn’t carry out any function and the LED is off. The unit doesn’t carry out any function and the LED is off. Verify the connections of the power supply. Verify the connections of the power supply. ...
