Paser UNIKA GM LAN Installation Manual And Use

MODE D ANSWER
THIS MODE IS WORKS
WHEN PHONES BUTTONS
ARE AVAILABLE AND
PUSHED.
Answer Answer
(Short)
Refuse
Vocal Call Answer
(Short)
Re-Dial Last Number Answer
(long)
Higher volume Call /
Radio
Lower volume Call /
Radio
Enter Discreete MODE Answer
(Short)
Exit Discreete MODE Answer
(Short)
Close the Call
Source Radio
MENU selection
Scroll MENU up
Scroll MENU down
Confirm MENU choice Answer
(Short)
Next Track /Station
Previous Track / Station
MP3 Play - Pause
Back MENU
Mute Mic
V = VOLUME
S = SEEK
SHORT = SHORT PRESS OF THE BUTTON
LONG = LONG PRESS OF THE BUTTON
SRC= SOURCE BUTTON
ANSWER= ANSWER PHONE BUTTON
REFUSE = REFUSE PHONE BUTTON
RK LINE
REFUSE SRC Vol SEEK Buttons
Button Buttons
+ —
SRC
Refuse (Short)
V+
V-
Refuse (Short)
SRC
(Short)
SRC
(long)
V+
V-
Double
SRC
SRC
(Short)
Double
SRC
>
<

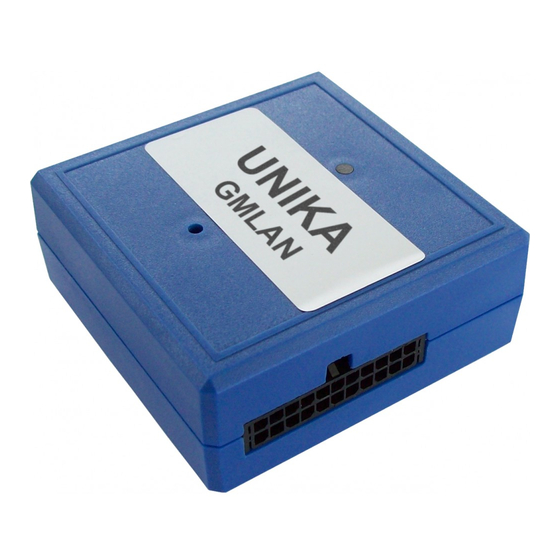

UNIKA GM LAN is a UNIVERSAL adapter module to connect OEM steering wheel commands;
its compatibility extends to a range of vehicles with GM LAN protocol and with PARROT MKi RKi.
Its function is completely handled by a microprocessor capable of learning the protocol of the OEM steering
wheel commands.
The GM LAN programming it's in self-selections.
S+ (Short)
S- (Short)
THIS PRODUCT HAS A TWO-YEAR GUARANTEE FOR ANY KIND OF MANUFACTURING DEFECT.
INSTALLATION MANUAL AND USE
UNIKA GM LAN
Steering Wheel Commands Adapter
For GM LAN protocol
with PARROT MKi / RKi Line
rev 5.0

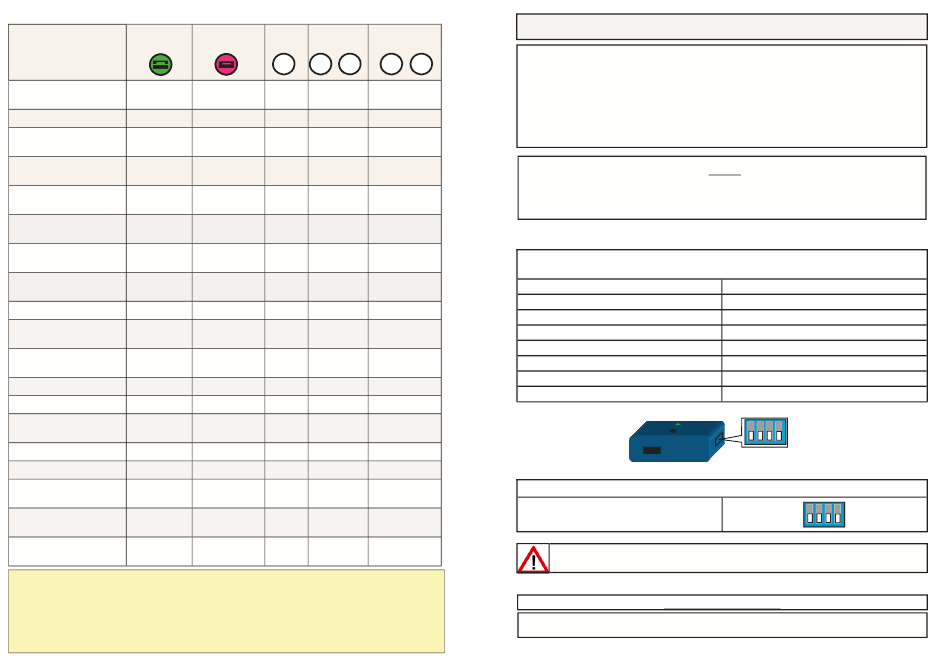

DIP SWITCHES
UNIKA GM LAN has 4 dip switches to set before start the installation.
NOT USED
CAR PROTOCOL GM LAN
NOT USED
NOT USED
EXTERNAL IGNITION
IGNITION FROM GM LAN
UPGRADE MODE ON
UPGRADE MODE OFF
MOST USED SETTING
GM LAN PROTOCOL ALL OFF
SET THE DIP SWITCHES WITH THE UNIT
NOT POWERED
WARRANTY CONDITIONS
THE FISCAL DOCUMENT SERVES AS THE GUARANTEE VALIDITY.
DIP 1 ON
DIP 1 OFF
DIP 2 ON
DIP 2 OFF
DIP 3 ON
DIP 3 OFF
DIP 4 ON
DIP 4 OFF
