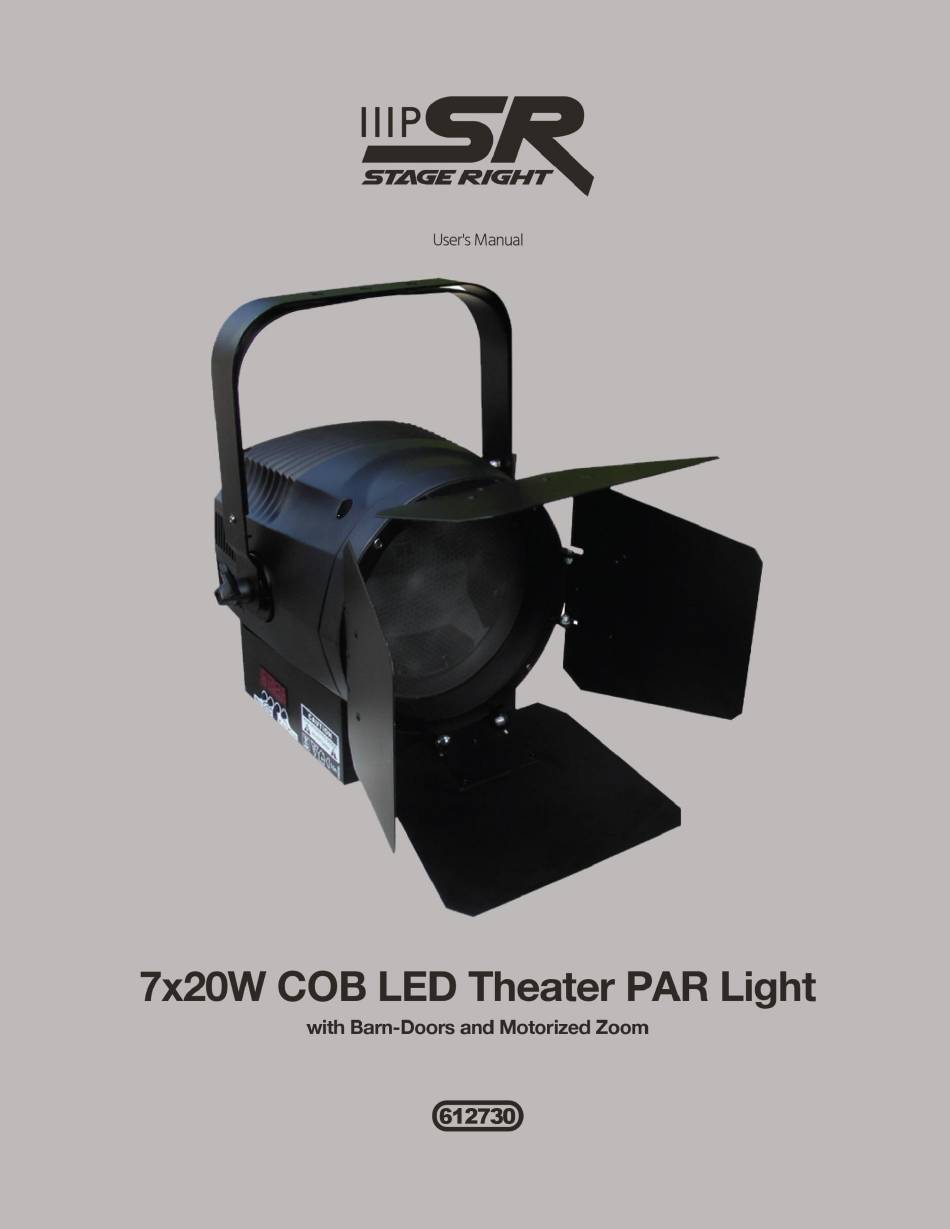

Summary of Contents for Stage right 612730
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ........................... 3 Power ........................................... 3 Environment ......................................3 Maintenance......................................4 INTRODUCTION ......................................4 FEATURES ........................................5 CUSTOMER SERVICE ....................................5 PACKAGE CONTENTS .................................... 6 MENU DISPLAY AND CONTROLS ..............................6 DMX CONTROL ......................................7 BARNDOORS ........................................ 7 MASTER/SLAVE MODE .................................. -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Power Use this light fixture with a constant voltage power supply only. Using it with a dimmer can result in unexpected operation and damage to the fixture. Unplug this device from the power source when not in use. ... -
Page 4: Maintenance
Do not expose this device to rain, water, or moisture of any kind. Do not use in extremely dusty environments. Do not touch the device or power cord with wet hands. When installing this device, ensure that there are no flammable materials within about 8 feet above and on all sides. -
Page 5: Features
FEATURES 7x 20-watt 3200K white LEDs Adjustable 28°-70° beam angle Up to 2780 lux at 2 meters Motorized zoom control (DMX control only) 4-leaf manually adjustable barndoor for beam shaping 4-channel DMX control Built-in Strobe program ... -
Page 6: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x 7x20-Watt COB LED theater PAR light 1x AC power cord (NEMA 5-15P to NAC3) 1x NAC3 output connector 1x User's manual... -
Page 7: Dmx Control
DMX CONTROL A single light fixture can be connected to and controlled by a DMX512 controller. To use the light with a controller, repeatedly press the Menu button until Addr is displayed, then press the Enter button to edit the value. Use the Up and Down buttons to select a channel from 001-512. -
Page 8: Master/Slave Mode
MASTER/SLAVE MODE When using the built-in program, the fixture is considered to be in Master mode. You can then daisy-chain additional fixtures configured as Slaves to perform the same actions as the Master. To configure a fixture as a Master, set the light to any mode except DMX mode. To configure a fixture as a Slave, enter DMX mode and set the channel to 001. -
Page 9: Strobe Mode
Strobe Mode To enter Strobe Mode, press the Menu button repeatedly until FLAS is displayed, then press the Enter button to edit the displayed value. Use the Up and Down buttons to adjust the displayed value. The strobe speed can be set to any value between 0 (5 flashes per second) and 12 (20 flashes per second). -
Page 10: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 11: Regulatory Compliance
REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices.
