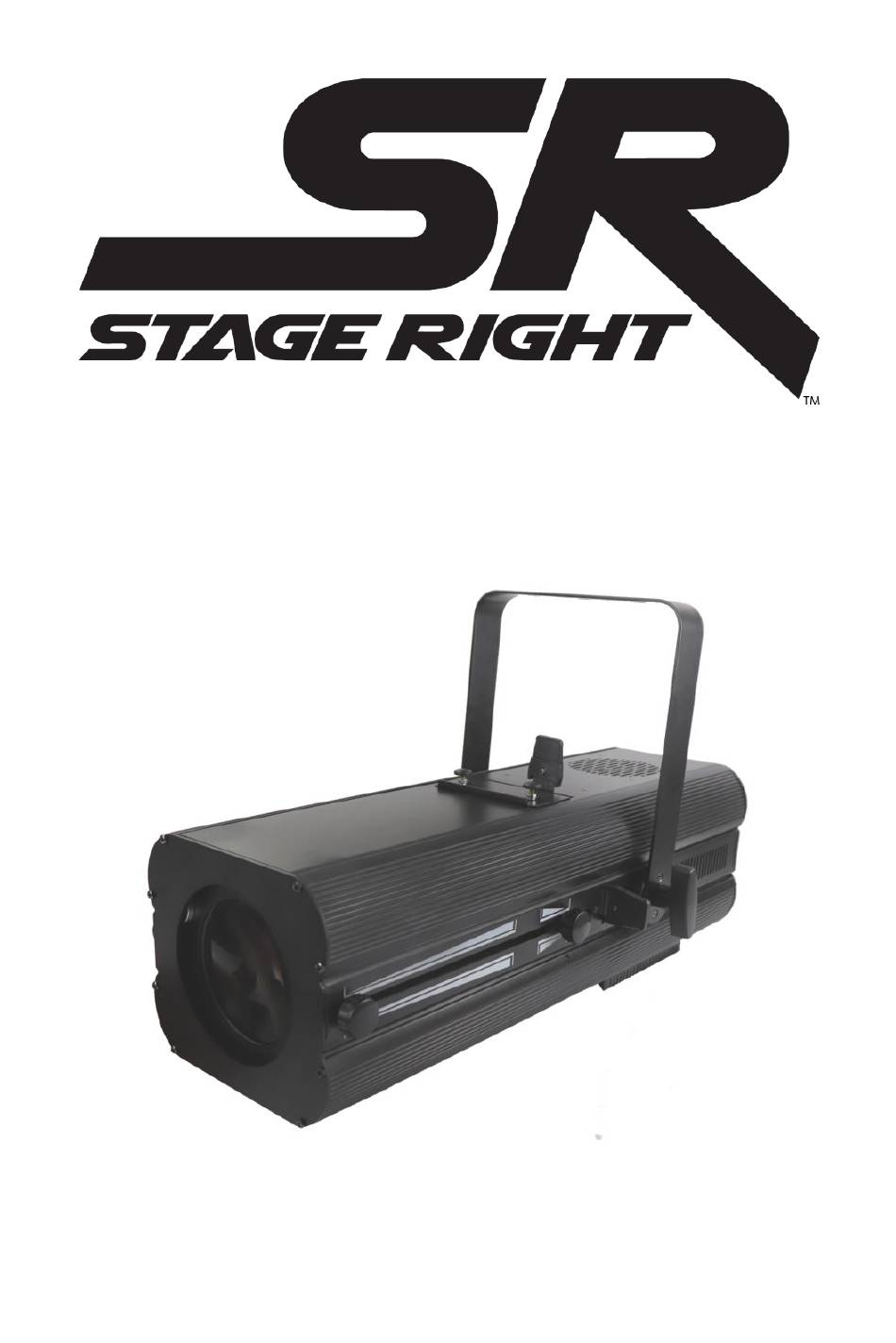

- Page 1 High Definition 200-Watt RBGW 4-in-1 LED Ellipsoidal Stage Light with Manual Zoom P/N 625856 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 Use only in a well-ventilated area. Do not use in close, confined • spaces. Ensure that there are no flammable materials within about 3 • feet of this device. Ensure that there is at least 20 inches of ventilation space around this unit. Prior to operation, check the unit and power cord for physical •...
-
Page 4: Customer Service
This device has no user serviceable parts. Do not attempt to • open, service, or modify this device. Avoid direct eye exposure to the light from this device. • Do not connect this light to a dimmer pack. • Do not look directly into the light source. •... - Page 5 CONTROLS MENU: Press the MENU button to cycle through the functions in • the menu system. If editing a value, pressing the MENU button cancels any change made and cycles forward to the next function in the list. UP: Momentarily press the UP button to increase the displayed •...
-
Page 6: Dimensions Diagram
DIMENSIONS DIAGRAM MENU FUNCTIONS Function Range Description DMX--8 001-512 8-Channel DMX Starting Address DMX--4 001-512 4-Channel DMX Starting Address Jump 000-099 Color Jumping Mode, Slow to Fast Gchange 000-099 Gradual Color Change, Slow to Fast Pulse 000-099 Color Pulse Mode, Slow to Fast Color R 000-255 Red Dimming, Dark to Bright... - Page 7 DMX512 MODES 4-Channel Value Range Function 000-255 Red Dimming, Dark to Bright 000-255 Green Dimming, Dark to Bright 000-255 Blue Dimming, Dark to Bright 000-255 White Dimming, Dark to Bright 8-Channel Value Range Function 000-255 Master Dimming, Dark to Bright 000-255 Strobe, Slow to Fast 000-050...
- Page 8 SPECTROGRAM Distance 1000 Illumination Center Beam Angle 1250 19° 1280 Beam Diameter (cm) Illumination Center Beam Angle 50° Beam Diameter (cm)
-
Page 9: Technical Support
Check the website for support times and links. SPECIFICATIONS Model 625856 Light Source 200-Watt COB RGBW 4-in-1 LED Beam Angle 19~50°... -
Page 10: Regulatory Compliance
REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 11 Notice for Industry Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Stage Right™ and the Stage Right logo are trademarks of Monoprice Inc.
