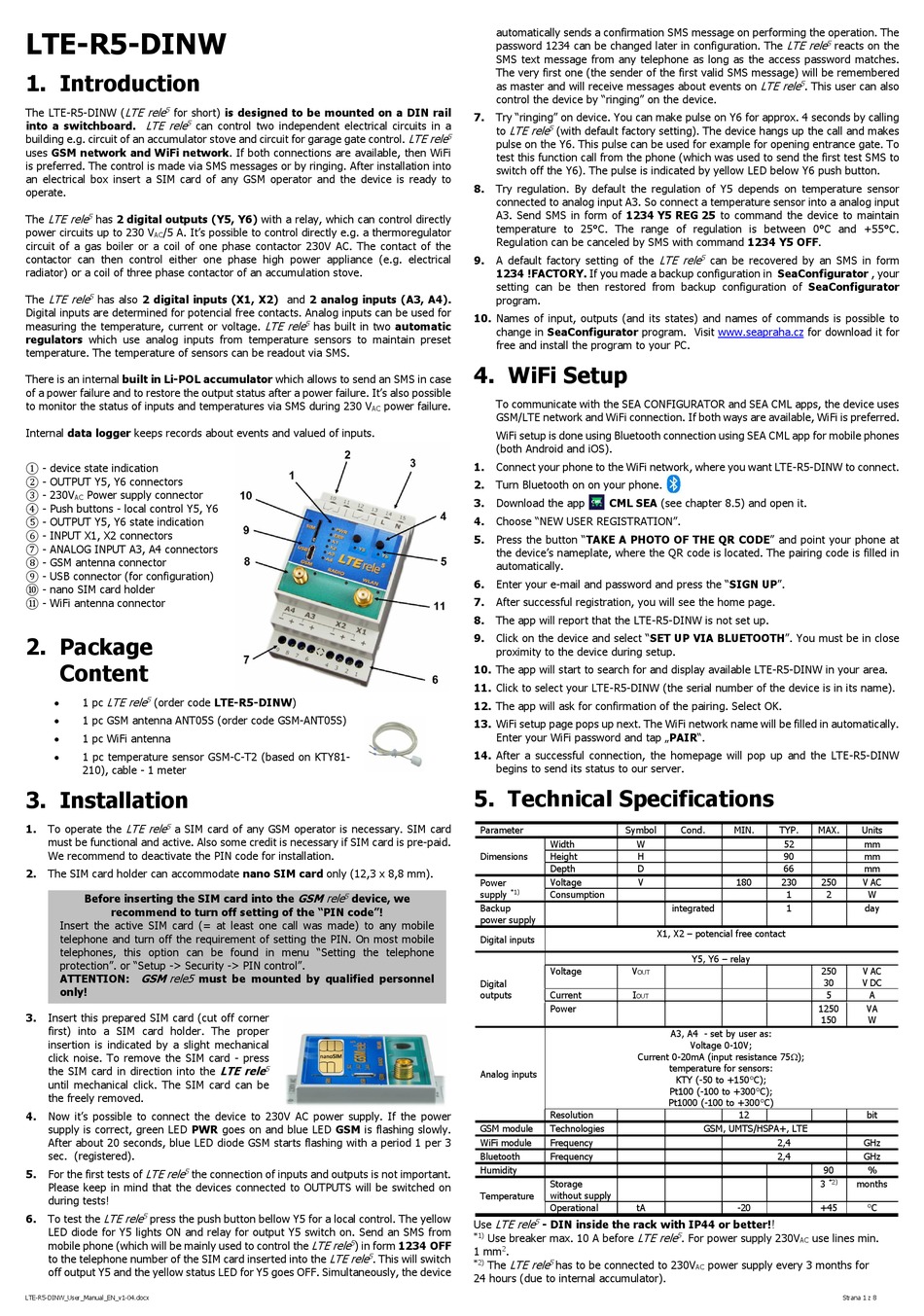

1. Introduction
LTE rele 5
The LTE-R5-DINW ( for short) is designed to be mounted on a DIN rail
into a switchboard. LTE rele 5 can control two independent electrical circuits in a
building e.g. circuit of an accumulator stove and circuit for garage gate control.
uses GSM network and WiFi network. If both connections are available, then WiFi
is preferred. The control is made via SMS messages or by ringing. After installation into
an electrical box insert a SIM card of any GSM operator and the device is ready to
operate.
LTE rele 5
The has 2 digital outputs (Y5, Y6) with a relay, which can control directly
power circuits up to 230 V /5 A. It's possible to control directly e.g. a thermoregulator
AC
circuit of a gas boiler or a coil of one phase contactor 230V AC. The contact of the
contactor can then control either one phase high power appliance (e.g. electrical
radiator) or a coil of three phase contactor of an accumulation stove.
The LTE rele 5 has also 2 digital inputs (X1, X2) and 2 analog inputs (A3, A4).
Digital inputs are determined for potencial free contacts. Analog inputs can be used for
measuring the temperature, current or voltage.
regulators which use analog inputs from temperature sensors to maintain preset
temperature. The temperature of sensors can be readout via SMS.
There is an internal built in Li-POL accumulator which allows to send an SMS in case
of a power failure and to restore the output status after a power failure. It's also possible
to monitor the status of inputs and temperatures via SMS during 230 V
Internal data logger keeps records about events and valued of inputs.
① - device state indication
② - OUTPUT Y5, Y6 connectors
③ - 230V Power supply connector
AC
④ - Push buttons - local control Y5, Y6
⑤ - OUTPUT Y5, Y6 state indication
⑥ - INPUT X1, X2 connectors
⑦ - ANALOG INPUT A3, A4 connectors
⑧ - GSM antenna connector
⑨ - USB connector (for configuration)
⑩ - nano SIM card holder
⑪ - WiFi antenna connector
2. Package
Content
LTE rele 5
 1 pc (order code LTE-R5-DINW)
 1 pc GSM antenna ANT05S (order code GSM-ANT05S)
 1 pc WiFi antenna
 1 pc temperature sensor GSM-C-T2 (based on KTY81-
210), cable - 1 meter
3. Installation
1. To operate the LTE rele 5 a SIM card of any GSM operator is necessary. SIM card
must be functional and active. Also some credit is necessary if SIM card is pre-paid.
We recommend to deactivate the PIN code for installation.
2. The SIM card holder can accommodate nano SIM card only (12,3 x 8,8 mm).
Before inserting the SIM card into the
recommend to turn off setting of the "PIN code"!
Insert the active SIM card (= at least one call was made) to any mobile
telephone and turn off the requirement of setting the PIN. On most mobile
telephones, this option can be found in menu "Setting the telephone
protection". or "Setup -> Security -> PIN control".
GSM rele5
ATTENTION: must be mounted by qualified personnel
only!
3. Insert this prepared SIM card (cut off corner
first) into a SIM card holder. The proper
insertion is indicated by a slight mechanical
click noise. To remove the SIM card - press
the SIM card in direction into the
until mechanical click. The SIM card can be
the freely removed.
4. Now it's possible to connect the device to 230V AC power supply. If the power
supply is correct, green LED PWR goes on and blue LED GSM is flashing slowly.
After about 20 seconds, blue LED diode GSM starts flashing with a period 1 per 3
sec. (registered).
5. For the first tests of LTE rele 5 the connection of inputs and outputs is not important.
Please keep in mind that the devices connected to OUTPUTS will be switched on
during tests!
6. To test the LTE rele 5 press the push button bellow Y5 for a local control. The yellow
LED diode for Y5 lights ON and relay for output Y5 switch on. Send an SMS from
mobile phone (which will be mainly used to control the
to the telephone number of the SIM card inserted into the
off output Y5 and the yellow status LED for Y5 goes OFF. Simultaneously, the device
LTE-R5-DINW_User_Manual_EN_v1-04.docx
LTE rele 5
has built in two automatic
power failure.
AC
GSM rele 5
device, we
LTE rele 5
LTE rele 5
) in form 1234 OFF
LTE rele 5
. This will switch
automatically sends a confirmation SMS message on performing the operation. The
password 1234 can be changed later in configuration. The
SMS text message from any telephone as long as the access password matches.
The very first one (the sender of the first valid SMS message) will be remembered
as master and will receive messages about events on
control the device by "ringing" on the device.
7. Try "ringing" on device. You can make pulse on Y6 for approx. 4 seconds by calling
to LTE rele 5 (with default factory setting). The device hangs up the call and makes
LTE rele 5
pulse on the Y6. This pulse can be used for example for opening entrance gate. To
test this function call from the phone (which was used to send the first test SMS to
switch off the Y6). The pulse is indicated by yellow LED below Y6 push button.
8. Try regulation. By default the regulation of Y5 depends on temperature sensor
connected to analog input A3. So connect a temperature sensor into a analog input
A3. Send SMS in form of 1234 Y5 REG 25 to command the device to maintain
temperature to 25°C. The range of regulation is between 0°C and +55°C.
Regulation can be canceled by SMS with command 1234 Y5 OFF.
9. A default factory setting of the
1234 !FACTORY. If you made a backup configuration in SeaConfigurator , your
setting can be then restored from backup configuration of SeaConfigurator
program.
10. Names of input, outputs (and its states) and names of commands is possible to
change in SeaConfigurator program. Visit
free and install the program to your PC.
4. WiFi Setup
To communicate with the SEA CONFIGURATOR and SEA CML apps, the device uses
GSM/LTE network and WiFi connection. If both ways are available, WiFi is preferred.
WiFi setup is done using Bluetooth connection using SEA CML app for mobile phones
(both Android and iOS).
1. Connect your phone to the WiFi network, where you want LTE-R5-DINW to connect.
2. Turn Bluetooth on on your phone.
3. Download the app
4. Choose "NEW USER REGISTRATION".
5. Press the button "TAKE A PHOTO OF THE QR CODE" and point your phone at
the device's nameplate, where the QR code is located. The pairing code is filled in
automatically.
6. Enter your e-mail and password and press the "SIGN UP".
7. After successful registration, you will see the home page.
8. The app will report that the LTE-R5-DINW is not set up.
9. Click on the device and select "SET UP VIA BLUETOOTH". You must be in close
proximity to the device during setup.
10. The app will start to search for and display available LTE-R5-DINW in your area.
11. Click to select your LTE-R5-DINW (the serial number of the device is in its name).
12. The app will ask for confirmation of the pairing. Select OK.
13. WiFi setup page pops up next. The WiFi network name will be filled in automatically.
Enter your WiFi password and tap „PAIR".
14. After a successful connection, the homepage will pop up and the LTE-R5-DINW
begins to send its status to our server.
5. Technical Specifications
Parameter
Width
Dimensions Height
Depth
Voltage
Power
supply *1) Consumption
Backup
power supply
Digital inputs
Voltage
Digital
Current
outputs
Power
Analog inputs
Resolution
GSM module Technologies
WiFi module Frequency
Bluetooth Frequency
Humidity
Storage
Temperature without supply
Operational
LTE rele 5
Use - DIN inside the rack with IP44 or better!
*1) Use breaker max. 10 A before
1 mm 2 .
*2) LTE rele 5
The has to be connected to 230V
24 hours (due to internal accumulator).
LTE rele
LTE rele 5
can be recovered by an SMS in form
www.seapraha.cz
CML SEA (see chapter 8.5) and open it.
Symbol Cond. MIN. TYP.
W
H
D
V 180 230
integrated
X1, X2 – potencial free contact
Y5, Y6 – relay
V
OUT
I
OUT
A3, A4 - set by user as:
Voltage 0-10V;
Current 0-20mA (input resistance 75);
temperature for sensors:
KTY (-50 to +150°C);
Pt100 (-100 to +300°C);
Pt1000 (-100 to +300°C)
12
GSM, UMTS/HSPA+, LTE
2,4
2,4
tA -20
!
LTE rele 5
. For power supply 230V
power supply every 3 months for
AC
LTE rele 5
reacts on the
5 . This user can also
for download it for
MAX. Units
52 mm
90 mm
66 mm
250 V AC
1 2 W
1 day
250 V AC
30 V DC
5 A
1250 VA
150 W
bit
GHz
GHz
90 %
3 *2) months
+45 °C
use lines min.
AC
