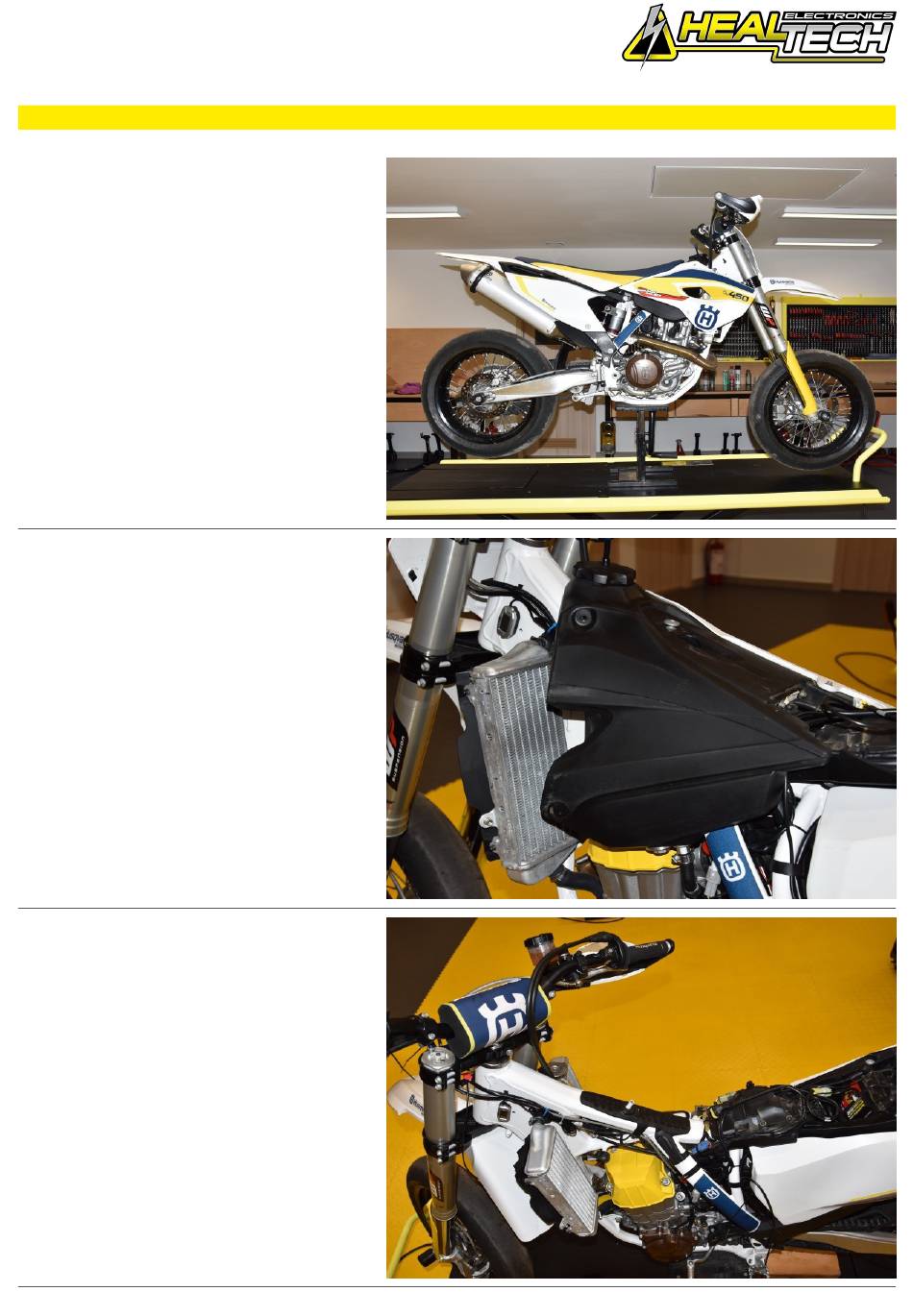

- Page 1 GIPRO X-TYPE GEAR INDICATOR Supplementary Manual Husqvarna FS450 2015- (GPXT + GPX-WSS) Secure the bike on a stand. Remove the seat and the side fairings. Remove the fuel tank. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
- Page 2 GIPRO X-TYPE GEAR INDICATOR Supplementary Manual Husqvarna FS450 2015- (GPXT + GPX-WSS) Mount the wheel speed sensor at the rear wheel. (Any rotating metal targets will work, but the targets must be spaced at equal distances. Adjust and tighten the sensor so that the tip of the sensor will be in-line with the center of the target.
- Page 3 GIPRO X-TYPE GEAR INDICATOR Supplementary Manual Husqvarna FS450 2015- (GPXT + GPX-WSS) Connect the GPX Black/Green wire to the Yellow/White wire of the Crankshaft Position Sensor connector. (Blue, 2-pole connector below the seat on the left side.) Connect the 3-pole sensor connector to the GPX wiring harness connector and coil up the excess length.
