Warnings

The installation of this thermostat should be made by a certified
electrician and must be installed in conformity with the national
and local Electrical Codes.
Since you are a valuable customer, before starting
the installation of your new thermostat, please
make sure that the breakers for your heating system
are off at the main electrical panel!

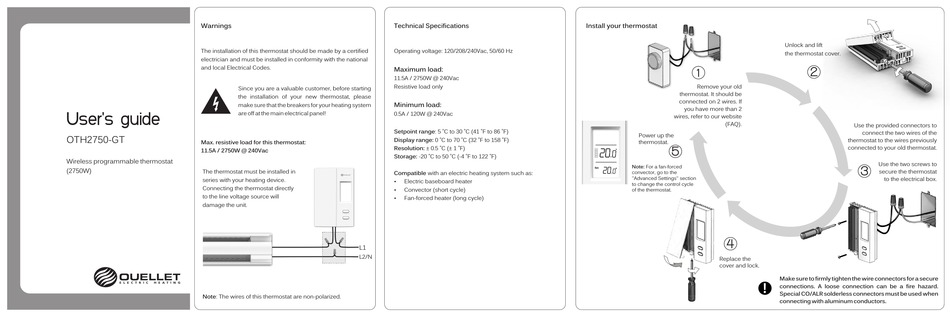

User's guide
OTH2750-GT
Max. resistive load for this thermostat:
11.5A / 2750W @ 240Vac
Wireless programmable thermostat
(2750W)
The thermostat must be installed in
series with your heating device.
Connecting the thermostat directly
to the line voltage source will
damage the unit.
Note: The wires of this thermostat are non-polarized.

Technical Specifications

Operating voltage: 120/208/240Vac, 50/60 Hz
Maximum load:
11.5A / 2750W @ 240Vac
Resistive load only
Minimum load:
0.5A / 120W @ 240Vac
Setpoint range: 5 ˚C to 30 ˚C (41 ˚F to 86 ˚F)
Display range: 0 ˚C to 70 ˚C (32 ˚F to 158 ˚F)
Resolution: ± 0.5 ˚C (± 1 ˚F)
Storage: -20 ˚C to 50 ˚C (-4 ˚F to 122 ˚F)
Compatible with an electric heating system such as:
Electric baseboard heater
Ÿ
Convector (short cycle)
Ÿ
Fan-forced heater (long cycle)
Ÿ
L1
L2/N

Install your thermostat

1
Remove your old
thermostat. It should be
connected on 2 wires. If
you have more than 2
wires, refer to our website
(FAQ).
Power up the
thermostat.
5
Note: For a fan-forced
convector, go to the
''Advanced Settings'' section
to change the control cycle
of the thermostat.
4
Replace the
cover and lock.
!
Unlock and lift
the thermostat cover.
2
Use the provided connectors to
connect the two wires of the
thermostat to the wires previously
connected to your old thermostat.
Use the two screws to
3
secure the thermostat
to the electrical box.
Make sure to firmly tighten the wire connectors for a secure
connections. A loose connection can be a fire hazard.
Special CO/ALR solderless connectors must be used when
connecting with aluminum conductors.
