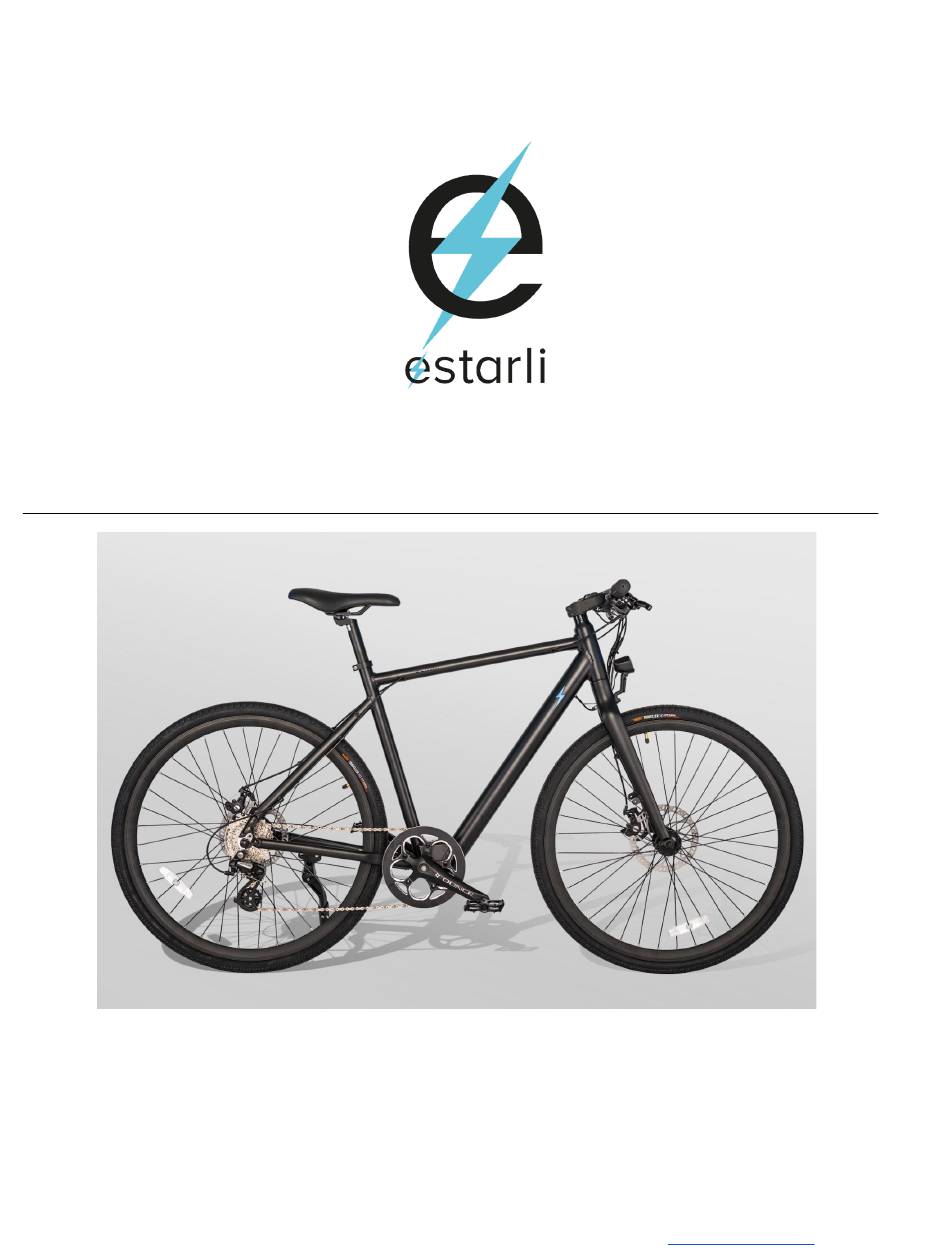

- Page 1 1...
- Page 2 - 5 - 4.3. Headlight - 5 - 4.4. Push Assistance 6km/h - 6 - 4.5. PAS Level - 6 - 4.6. Battery Indication - 6 - 4.7. USB Charging - 6 - 4.8. Error codes - 7 - www.estarli.co.uk page 2...
- Page 3 Dimensions The digital display is made from a PC plastic with a working temperature range of -20℃ to 60℃. Display Dimensions and Installation (Unit: mm) www.estarli.co.uk page 3...
- Page 4 ◆6km/h Push assistance ◆Error Codes ◆USB charging ◆Customizable parameters such as: Wheel diameter, Speed limit Display Content The interface Errors Please contact support@estarli.co.uk or your local retailer should you have any errors or warning on your display. www.estarli.co.uk page 4...
- Page 5 Press and hold the U button for 5 seconds to turn the lights on/off. Light on Push Assistance 6km/h Press and hold the DOWN button to engage push assistance mode. The motor will power the bike up to 6km/h. www.estarli.co.uk page 5...
- Page 6 The standard output voltage is 5V with a max current of 500mA. The USB port will continue to function even when your estarli is powered off. While charging the red led at the bottom of the screen will flash. While powered on press the M and D buttons to enable charging mode.
- Page 7 Contact your retailer. signal Check the brake lever is not applied Abnormal and the brakes have been correctly Brake adjusted. Check if the display and controller are Abnormal Communication connected properly Wire Sequences Terminal Male Connector Female Connector www.estarli.co.uk page 7...
- Page 8 Wire sequence of standard connectors Wire Colours Function Red（VCC） Power cable of display Blue(K) Power cable of controller Black(GND) Green(RX) Data In Yellow(TX) Data Out www.estarli.co.uk page 8...
