e20 Operating & Maintenance Instructions
Operating & Maintenance Instructions
T echnical:
Net bike weight:
Maximum load:
Dimensions:
Folded dimensions:85x70cm
Frame:
Fork:
Wheels:
Discs:
Derailleur & shifters:
Motor:
Maximum torque: 40nm Maximum speed:25km / h
Power Assist Levels:
Seat Post Battery:
Capacity:
Weight battery:
Charging time:
Range:

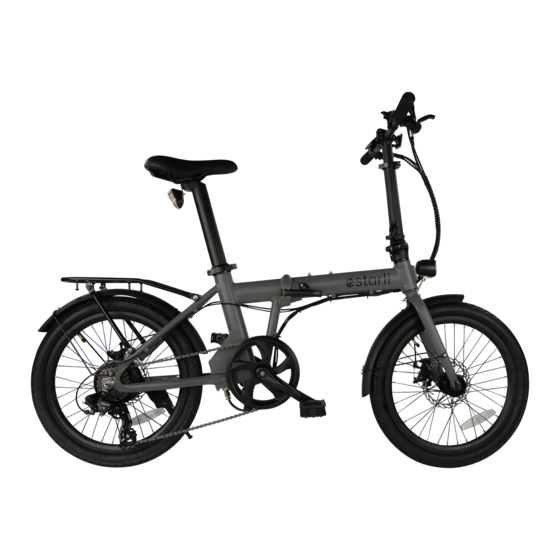

estarli e20
17.5kg
115 kg
150x110cm
aluminum 6061
aluminum 6061
20 inch
160mm
Shimano Tourney
36V 250W BRUSHLESS
5
Samsung Cells Lithium
36V 7.2Ah
1.5kg
3-4 hours
50km
Advertisement
Related Manuals for Estarli e20
Summary of Contents for Estarli e20
- Page 1 Estarli e20 Operating & Maintenance Instructions estarli e20 Operating & Maintenance Instructions T echnical: Net bike weight: 17.5kg Maximum load: 115 kg Dimensions: 150x110cm Folded dimensions:85x70cm Frame: aluminum 6061 Fork: aluminum 6061 Wheels: 20 inch Discs: 160mm Derailleur & shifters:...
- Page 2 Estarli e20 Operating & Maintenance Instructions Congratulations on the purchase of your estarli e20. Your bicycle is equipped with an electric pedaling assistance which will help assist your cycling. The aim of electric assistance is to reduce the input needed from the rider when cycling. The bike is fitted with intelligent sensors that monitor your pedal input and match it with motor assistance.
- Page 3 Estarli e20 Operating & Maintenance Instructions C ontents: 1. General information 2. Operating Instructions 3. Maintenance 4. Warranty...
- Page 4 Failure to follow these warnings could result in an accident, injury or damage to your eBike. Estarli Ev Limited does not take responsibility for any faults or damage occurred from improper maintenance or bike safety checks.
- Page 5 Cracks, scratches and discoloration in areas subject to high stresses indicate that the component has exceeded its service life and should be replaced. If in doubt please seek professional advice or get in touch with one of the estarli technical experts. 1.2Adjustments...
- Page 6 1.2.4. Brakes Your estarli is equipped with 160mm diameter disc brakes. The right handle activates your front brake, while the left handle activates the rear brake. It is recommended to distribute your braking force on average 60/40 between the front and the rear.
- Page 7 Estarli e20 Operating & Maintenance Instructions 1.2.6. Wheel and motor After the first month of use, it is advisable to tighten your spokes. When the motor engages there might be a slight noise. This is perfectly normal. This noise may increase as the motor works harder.
- Page 8 Estarli e20 Operating & Maintenance Instructions ● Do not use the battery if it emits an unusual smell, becomes unusually hot or if something seems abnormal. ● Keep the battery out of the reach of children. ● Recharge your battery before prolonged storage and perform the same operation after...
- Page 9 Estarli e20 Operating & Maintenance Instructions Battery life: Batteries suffer from aging performance after a lot of use. It will depend on the usage patterns of the VAE. In general, the energy capacity may reduce by 20 to 30% (charge and discharge) for lithium batteries.
- Page 10 Estarli e20 Operating & Maintenance Instructions ● Do not touch the charger for too long during charging (risk of superficial burns). ● Do not position the charger in an unstable manner. ● Do not cover the charger to avoid overheating during charging.
- Page 11 Estarli e20 Operating & Maintenance Instructions 2. Getting started and use 2.1Starting and using the on-board computer Battery level Travel time Level of electric assistance Speed Total distance traveled 2.1.1 Press “power” a few seconds to switch on and switch off the screen 2.1.2 Press “▲...
- Page 12 Estarli e20 Operating & Maintenance Instructions 2.2Folding your estarli 1. Loosen the seat clamp. 2. Slowly slide the seat post to the floor. 3. Tighten the saddle clamp. 1. Loosen handlebars using lever center of the handlebars. 2. Swivel handlebars down until the brake levers are vertical.
- Page 13 Estarli e20 Operating & Maintenance Instructions 1. Rotate the frame folding lever safety upward. 2. Pull the folding lever of the frame and fold the bike on itself.
- Page 14 Estarli e20 Operating & Maintenance Instructions 2.3 Recharging The charging port is located under the saddle, covered by a dust and moisture cover. Remove the cover and plug in the charger, replace the cover when charging is complete. If you want to charge the battery separately,...
-
Page 15: Maintenance
Estarli e20 Operating & Maintenance Instructions 3. MAINTENANCE 3.1. Revisions Note: To ensure safety and keep the components in good working condition, you must have your eBike checked periodically by a qualified person: First checkup: 1 month or 150 km Ensure the following are correctly tightened: crank, wheel, stem, pedals, hanger, seat clamp. - Page 16 It is advisable to use specific oil for the chain and the derailleur. You must use grease for the other components 4 Warranty Your new delicious estarli eBike comes with a 2 year warranty. The warranty ...
- Page 17 ● Spokes ● Should a warranty claim become necessary, estarli shall not be liable for the cost of transportation of the e-bike to or from a repair site selected to fulfil ...
