Summary of Contents for Galaxy Audio JACKS in the BOX JIB/BT5R
- Page 1 JIB/BT5R USER’S MANUAL PORTABLE WIRELESS www.galaxyaudio.com/products/jib-bt5r...
- Page 2 Bluetooth Pairing and Unpairing................4 ® Receiver Setup.......................5 Specifications......................6 Introduction Thank you for choosing the Galaxy Audio professional, lightweight, compact, portable XLR Bluetooth 5 ® ® Receiver. The JIB/BT5R interfaces high quality stereo Bluetooth audio wirelessly from a Bluetooth ® ®...
- Page 3 Safety ! IMPORTANT SAFETY INSTRUCTIONS ! READ these instructions. PROTECT the power cord from being walked on or pinched, particularly at plugs, KEEP these instructions. convenience receptacles, and the point where they exit from the apparatus. HEED all warnings. ONLY USE attachments/accessories specified by the manufacturer. FOLLOW all instructions.

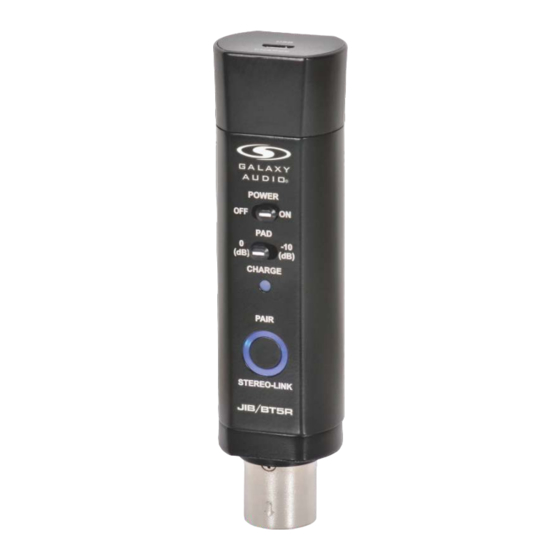

- Page 4 JIB/BT5R Receiver Features and Functions JIB/BT5R Stereo Bluetooth Receiver ® Receiver Features: Front Panel Top Charging Input Bottom XLR Output 1 - Micro USB Charging Input 5 - Bluetooth Pairing & Stereo-Link Button ® 2 - Power Switch 6 - Pairing Status LED Indicator 3 - PAD Switch 7 - XLR Output Connector - Charge Status LED Indicator...
- Page 5 Receiver Bluetooth Pairing and Unpairing ® Wireless Pairing Setup 1. Power On Receiver: Flip the POWER switch to “ON”. The receiver will immediately be in pairing mode. NOTE: The “PAIR” LED will quickly flash blue and red while unpaired. 2. Ready Your Bluetooth Enabled Device: ®...
- Page 6 Receiver Setup Receiver Setup 1. Pair Your Receiver: Before connecting the receiver to equipment, it is easiest to go through the pairing process first. If Stereo-Linking two receivers, link the receivers together first as well. 2. Connecting To Equipment: Plug into any active speaker, amp, or mixer that has XLR Input connections. NOTE: You can connect to most mixers, amplifiers or other devices that accept line-level inputs.
- Page 7 Specifications Specifications Bluetooth Version: V5.0 ® Frequency Range: 2.4GHz - 2.48GHz Input Connector: Micro USB Charging Input Output Connector: XLR/M Controls: PAD Switch, Bluetooth Pair/Stereo-Link Button ® Indicators: Charging LED, Stereo-Link/Pair LED Sensitivity: -80dBm < +/-0.1% BER Signal to Noise: >75dB Total Harmonic Distortion: <0.1% Operating Range: Under Typical Conditions 328' (100 m)
- Page 8 Information can be viewed online at https://www.galaxyaudio.com/support/warranty www.galaxyaudio.com/support/warranty JIB/BT5R USER’S MANUAL Specifications in this manual are subject to change without notice. For the most up to date manual and information visit www.galaxyaudio.com. 1-800-369-7768 www.galaxyaudio.com © Copyright Galaxy Audio 2022 V20221006...
