Summary of Contents for Galaxy Audio JACKS in the BOX JIB/BT8R
- Page 2 Specifications ......................6 Introduction Thank you for choosing the Galaxy Audio® professional, lightweight, compact, portable Stereo Bluetooth® Receiver. The JIB/BT8R interfaces high quality stereo Bluetooth® audio wirelessly from a Bluetooth® enabled smart device to an active speaker or mixing console using balanced Left/Right XLR and 1 /4"...
- Page 3 Safety ! IMPORTANT SAFETY INSTRUCTIONS! 1. READ these instructions. 10. PROTECT the power cord from being walked on or pinched, particularly at plugs, 2. KEEP these instructions. convenience receptacles, and the point where they exit from the apparatus. 3. HEED all warnings. 11.

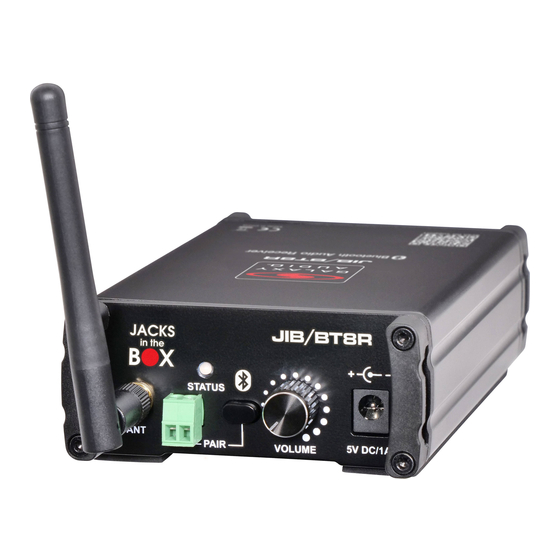

- Page 4 JIB/BTSR Receiver Features and Functions JIB/BTSR Stereo Bluetooth Receiver Receiver Features: Front Panel ® ® Back Panel ® ® - G) - 2.4 GHz Antenna Connector Volume Control ® - Euro-block Connector SV DC/1A Power Input (j) - Status LED UR XLR Balance Output Bluetooth®...
- Page 5 Receiver Setup System Setup Connecting Cables From JIB/BTSR Receiver Outputs 1. Connecting XLR Cables: Plug XLR cables to the XLR balanced UR outputs on the JIB/BT8R. Connect the other ends of the XLR cables to the XLR R/L inputs of a mixer, active speaker, or amp. 2.
- Page 6 Receiver Bluetooth® Pairing and Unpairing Wireless Pairing Setup 1. Make Sure The Receiver Is Powered On: If the receiver is not yet powered on, connect the included power adapter to connect JIB/BT8R 5V DC/1A input. Connect the other end to your power source. NOTE: The "STATUS"...
- Page 7 Specifications Specifications Bluetooth® Version: V4.0 Frequency Range: 2.4GHz - 2.48GHz Output Connector: Left/Right Balanced XLR/M, Left/Right Balanced 1/4" Line Controls: Volume, Wireless Bluetooth® Pair, Remote Pairing Euro-block Connector Indicators: Status LED Sensitivity: -80dBm < +/-0.1 % BER Signal to Noise: > 75dB Total Harmonic Distortion: <0.1 % Operating Range: Under Typical Conditions 32.8' (10 m)
- Page 8 Information can be viewed online at https://www.galaxyaudio.com/support/warranty www.galaxyaudio.com/supporVwarranty JIB/BTBR USER'S MANUAL Specifications in this manual are subject to change without notice. For the most up to date manual and information visit www.galaxyaudio.com. 1-800-369-7768 www.galaxyaudio.com © Copyright Galaxy Audio 2019 V20190409...
