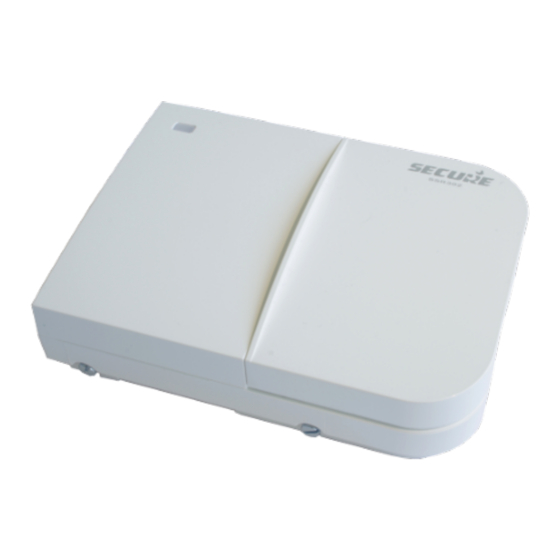

SEC_SSR302
Z-Wave controlled
Boiler Actuator - two
channels
Firmware Version : 1.3
Quick Start
A
This is a wireless Actor. For Inclusion and Exclusion press and hold both white buttons on the device
until the LED starts flashing. (green ->Inclusion, red -> Exclusion)
Please refer to the chapters below for detailed information about all aspects of the products usage.
What is Z-Wave?
This device is equipped with wireless communication complying to the Z-Wave standard. Z-Wave is the
international standard for wireless communication in smart homes and buildings. It is using the
frequency of 868.42 MHz to realize a very stable and secure communication. Each message is reconfirmed
(two-way communication) and every mains powered node can act as a repeater for other nodes (meshed
network) in case the receiver is not in direct wireless range of the transmitter.

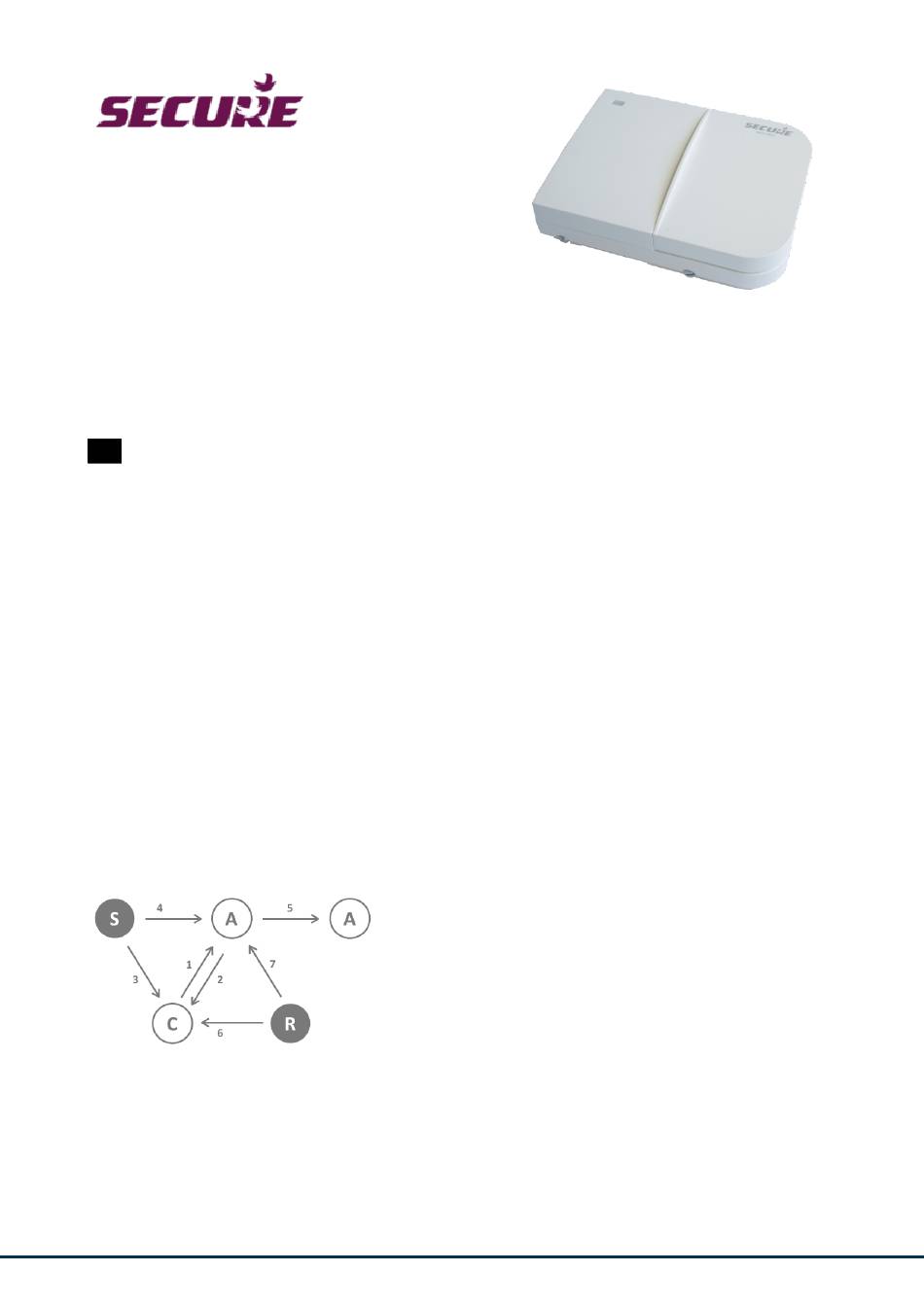

Z-Wave differentiates between Controllers and Slaves. Slaves are either sensors (S) transmitting metered or
measured data or actuators (A) capable to execute an action. Controllers are either static mains powered
controllers (C) also referred to as gateways or mobile battery operated remote controls (R). This results in a
number of possible communication patterns within a Z-Wave network that are partly or completely supported
by a specific device.
1. Controllers control actuators
2. Actuators report change of status back to controller
3. Sensors report change of status of measured values to controller
(c) 2012 Z-Wave Europe GmbH, Goldbachstr. 13, 09337 Hohenstein-Ernstthal, Germany, All rights reserved, www.zwaveeurope.com - pp 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Secure SSR302
Summary of Contents for Secure SSR302
- Page 1 It is using the frequency of 868.42 MHz to realize a very stable and secure communication. Each message is reconfirmed (two-way communication) and every mains powered node can act as a repeater for other nodes (meshed network) in case the receiver is not in direct wireless range of the transmitter.
- Page 2 Product description The SSR302 is a wirelessly controlled double Relay switch to operate loads up to 3A / 230 V. It is used to control warm water boilers or magnet valves. The device can be operated locally using two buttons. A LED indicated the current switching status.
- Page 3 Ensure that no conductors are left protruding outside the central space enclosed by the backplate. Internal Wiring Diagram The SSR302 has an integral connection which makes it suitable for mains voltage applications only. No additional linking is required between terminals. Fitting the Receiver If surface wiring has been used, remove the knockout/insert from the bottom thermostat to accommodate it.
- Page 4 the network. Leaving the network - i.e. being excluded - sets the device back to factory default. If the device already belongs to a network, follow the exclusion process before including it in your network. Otherwise inclusion of this device will fail. If the controller being included was a primary controller, it has to be reset first.
- Page 5 Set and unset associations to actuators Associations can be assigned and remove either via Z-Wave commands or using the device itself. For association press and hold one of the two white buttons on the device for 1 second. Command Classes Supported Command Classes Basic (version 1) Battery (version 1)
- Page 6 Controller — is a Z-Wave device with capabilities to manage the network. Controllers are typically Gateways, Remote Controls or battery operated wall controllers. Slave — is a Z-Wave device without capabilities to manage the network. Slaves can be sensors, actuators and even remote controls.
