WARNINGS:

This fire bowl is intended for outdoor use only. Do not use on wooden decks. DO NOT use in the vicinity of
flammable objects.
This fire bowl is intended to burn wood logs only. Do not burn leaves, or other combustible materials in the
fire bowl.
Not for use by children. Keep children and pets away from the fire bowl.
The fire bowl is hot. Use with caution. Do not touch the hot fire bowl with bare hands.
Never leave the burning fire bowl unattended, and always extinguish the fire completely before leaving the fire
bowl.
Do not use near flammable or combustible objects or materials.
DO NOT use this Fire Pit as a cooking appliance. This Fire Pit is not designed to be used for grilling food.
When the fire bowl is in use, the handle on the mesh screen can reach extreme temperatures that can cause
serious injury to an unprotected hand. Use a poker or an appropriate heat resistant glove or pad when handling.
Check local fire regulations and municipal by-laws for safe use.
Important: For technical assistance on assembly, please call Sunjoy Industries at 1(866) 578-6569 anytime 24 hours; 7
days a week, or email to customer.care@sunjoygroup.com, or visit www.sunjoyonline.com .
Production Number: XXXXXXXX

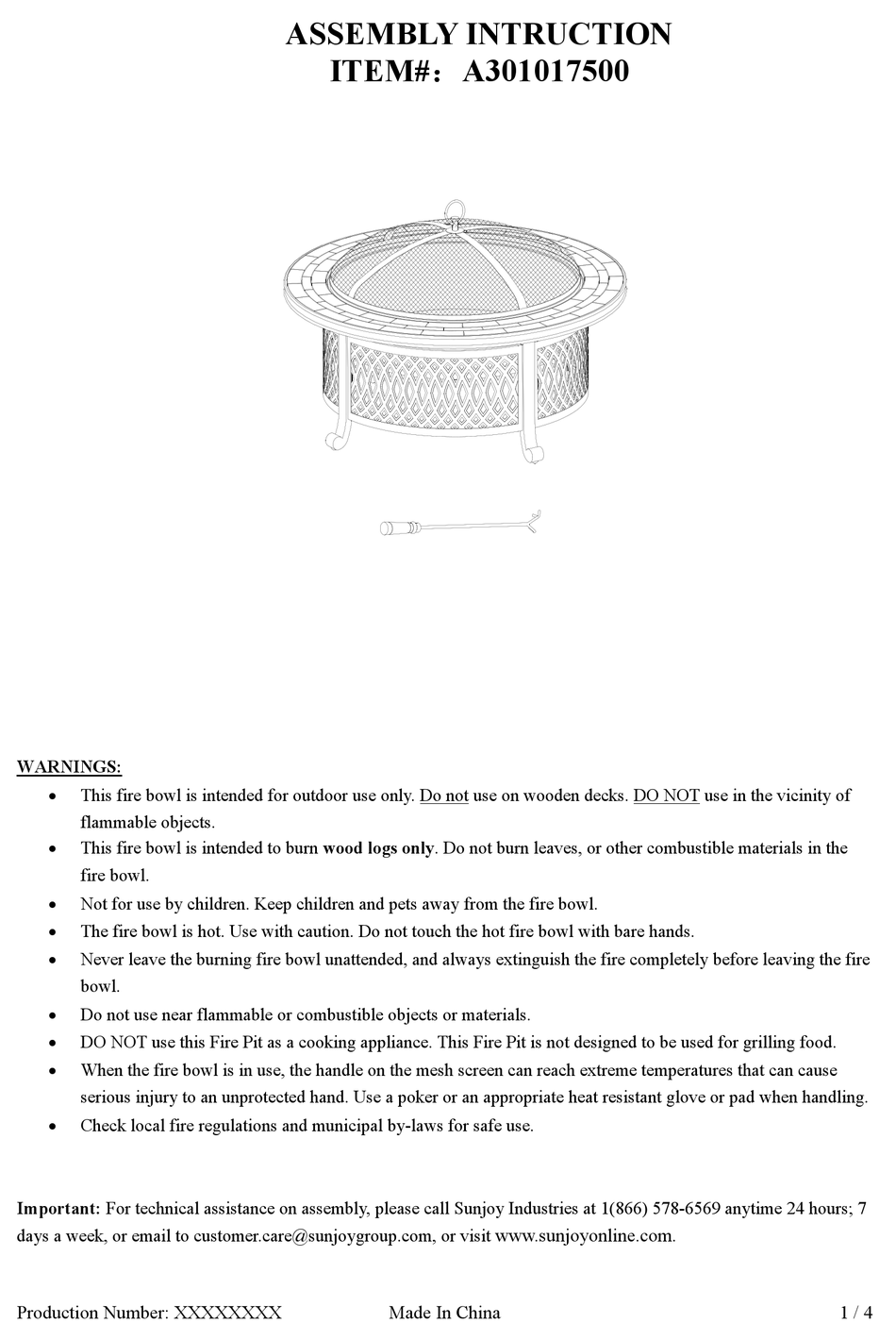

ASSEMBLY INTRUCTION
ITEM#：A301017500
Made In China
1 / 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Costa A301017500 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunjoy Costa A301017500

Summary of Contents for Sunjoy Costa A301017500

  • Page 1  Check local fire regulations and municipal by-laws for safe use. Important: For technical assistance on assembly, please call Sunjoy Industries at 1(866) 578-6569 anytime 24 hours; 7 days a week, or email to customer.care@sunjoygroup.com, or visit www.sunjoyonline.com . Production Number: XXXXXXXX...
  • Page 2 PARTS LIST PART# DESCRIPTION Handle Fire screen Grate Fire bowl Tile top Cast base frame Socle Footpad（pre-attached） Poker HARDWARE PACK PART# DESCRIPTION M6*15 Bolt M6*15 Bolt M6 Washer M6 Wrench ASSEMBLY STEPS Attach handle (A) to fire screen (B). Tighten Attach the Cast base frame (F) with socle (G) Step 1: Step 2:...
  • Page 3 Attach the socle (G) with tile top (E) using Put the grate (C) and fire bowl (D) in place as Step 3: Step 4: bolt (BB) and washer (CC). Tighten the bolts with below, tighten with bolt (BB) and washer (CC). wrench.
  • Page 4 Care & Cleaning Before using, clean the fire pit completely with a soft dry towel. When not in use, store in a cool, dry area. Limited Warranty: The item is warranted to be free from defects in material or workmanship for a period of six Months.
