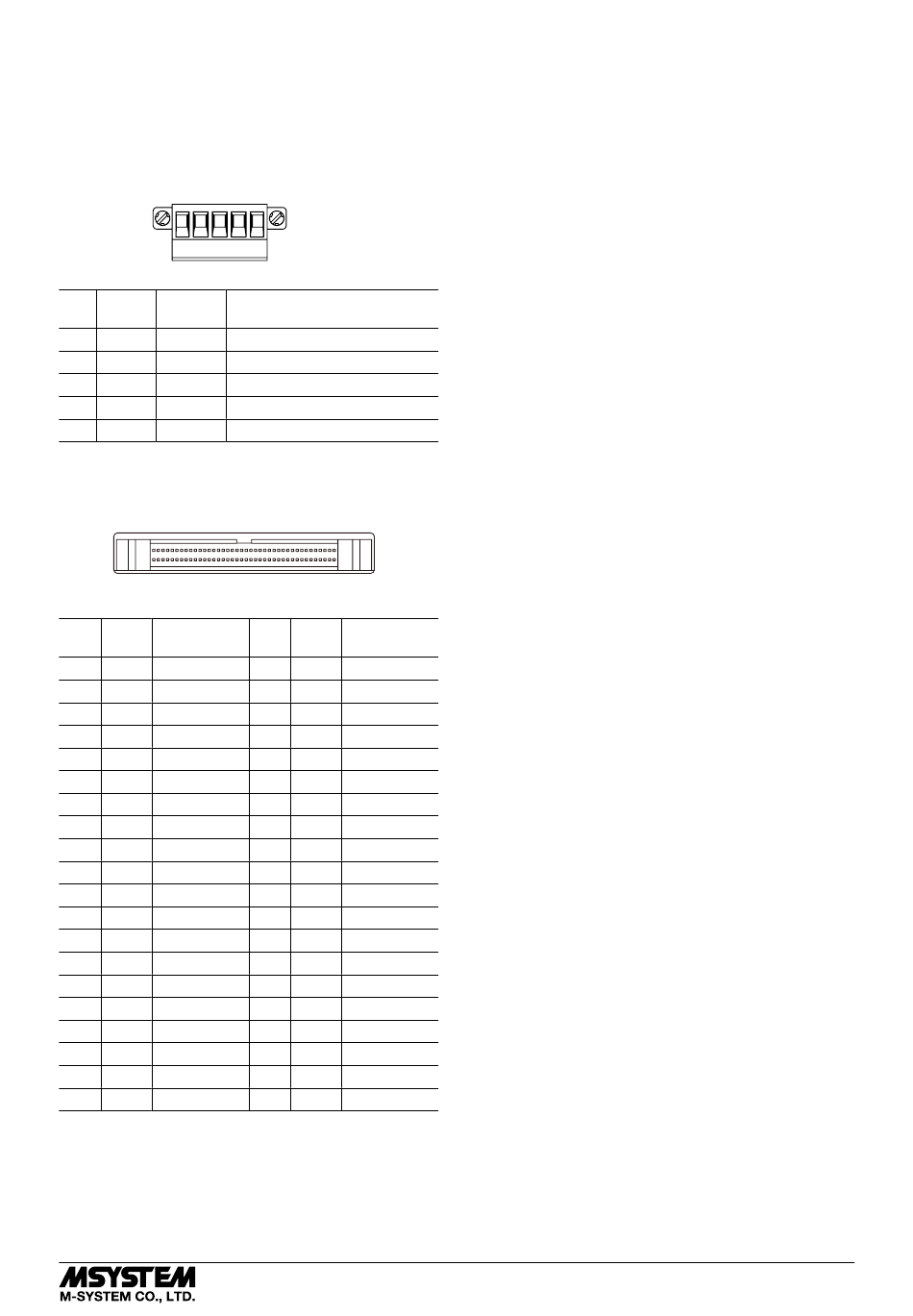

■ TERMINAL ASSIGNMENT

• Communication/power Terminal Assignment
Unit side connector: MSTB2,5/5-GF-5,08AU (Phoenix Contact)
Cable side connector: MSTB2,5/5-STF-5,08AU (Phoenix Contact)
Applicable wire size: 0.2 - 2.5mm
Stripped length: 7mm
1 2 3
PIN
COLOR ID
NO.
1 Red V+
2 White CAN_H
3 – Drain
4 Blue CAN_L
5 Black V-
• Input Terminal Assignment
Applicable connector: XG4M-4030 (Omron)
39
40
PIN
ID FUNCTION
No.
1 VS+ Exc. supply+
3 VS- Exc. supply-
5 X31 Input 31
7 X30 Input 30
9 X29 Input 29
11 X28 Input 28
13 X27 Input 27
15 X26 Input 26
17 X25 Input 25
19 X24 Input 24
21 VS+ Exc. supply+
23 VS- Exc. supply-
25 X15 Input 15
27 X14 Input 14
29 X13 Input 13
31 X12 Input 12
33 X11 Input 11
35 X10 Input 10
37 X9 Input 9
39 X8 Input 8
2
4 5
FUNCTION
Communication/power supply (+)
Network data High
Shield
Network data Low
Communication/power supply (-)
1
2
PIN
ID FUNCTION
No.
2 VS+ Exc. supply+
4 VS- Exc. supply-
6 X23 Input 23
8 X22 Input 22
10 X21 Input 21
12 X20 Input 20
14 X19 Input 19
16 X18 Input 18
18 X17 Input 17
20 X16 Input 16
22 VS+ Exc. supply+
24 VS- Exc. supply-
26 X7 Input 7
28 X6 Input 6
30 X5 Input 5
32 X4 Input 4
34 X3 Input 3
36 X2 Input 2
38 X1 Input 1
40 X0 Input 0
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
R7F4HD-DA32B
EM-8006-B P. 3 / 9
