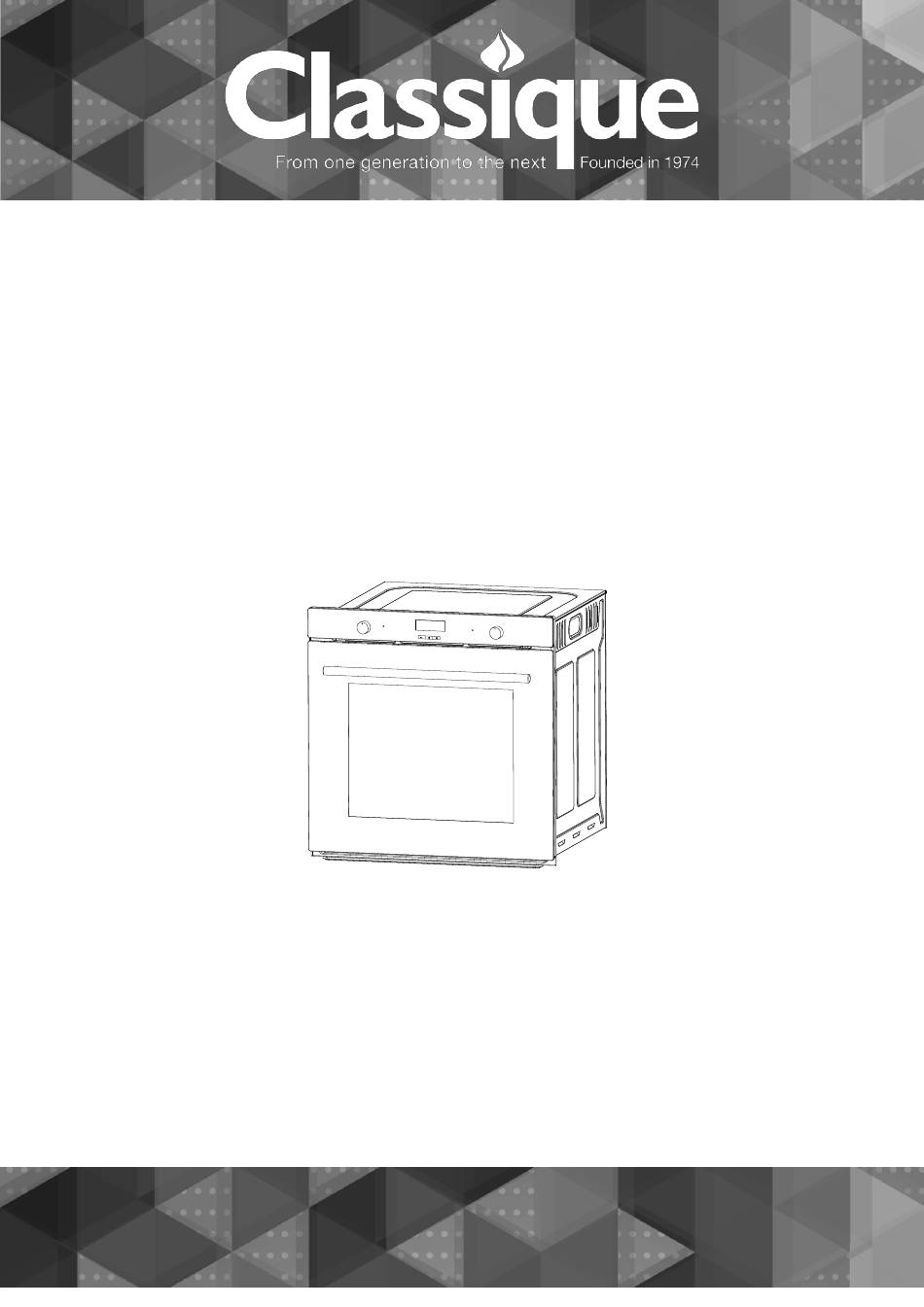

User manual for your Classique
600mm Built-in Oven
CLO69XLS
NOTE: This user manual contains important information including safety & installation
points which will enable you to get the most out of your Classique appliance. Please
keep it in a safe place so that it is readily available for future reference.
Advertisement
Table of Contents
Related Manuals for Classique CLO69XLS
Summary of Contents for Classique CLO69XLS
- Page 1 NOTE: This user manual contains important information including safety & installation points which will enable you to get the most out of your Classique appliance. Please keep it in a safe place so that it is readily available for future reference.
-
Page 2: Table Of Contents
Contents Important safety information Environmental note Installation Using the appliance Description of the appliance Before first use Setting the clock Selecting an oven function and temperature Using the timer Cleaning and maintenance Troubleshooting Cooking guidelines Technical information... -
Page 3: Important Safety Information
Child Safety Classique strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. If it is necessary for younger family members to be in the kitchen, please ensure that... - Page 4 General Safety Do not place heavy objects on the oven door or lean on the oven door when it is open, as this can cause damage to the oven door hinges. Do not leave heated oil or fat unattended, as this is a fire risk. ...
-
Page 5: Environmental Note
Environmental note Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. This appliance is marked according to the European directive 2002/96/EC on Waste electrical and Electronic Equipment (WEEE). -
Page 6: Installation
Installation Electrical connection WARNING: THIS APPLIANCE MUST BE EARTHED. This appliance should be wired into a 16 A double pole switched fused spur outlet, having 3 mm contact separation and placed in an easily accessible position adjacent to the appliance. - Page 7 Installing the oven into the kitchen cabinet The kitchen area should be dry and aired and equipped with efficient ventilation. When installing the oven, easy access to all control elements should be ensured. Positioning the appliance Ensure that the aperture that you will be fitting the oven into is of the size given in the above diagram.
- Page 8 Ventilation requirements (Figure shows the ventilation and cut-out requirements for the installation of the appliance into a standard kitchen unit). (Figure shows the ventilation and cut-out requirements for the installation of the appliance into a tall housing unit). Ensure that the oven has been securely fixed into the housing unit.
-
Page 9: Description Of The Appliance
Description of the appliance Control panel Side rack lamp Wire rack Oven door Door handle Description Illustration Qty. Oven unit Side rack 1 pair Roasting dish Oven rack Wire insert for roasting dish Pizza stone Telescopic runner 1 pair Screw and nut... - Page 10 Control panel Oven function selector knob Power indicator light (The light will be on, when a function is selected.) Oven programmer/timer Oven heating indicator light (The light will be on, when the oven is heating.) Thermostat control knob LED display Oven programmer/timer display “AUTO”: Automatic function symbol : oven heating symbol...
-
Page 11: Before First Use
Before first use To remove any residue from the oven that may have been left from the manufacturing process, you should select the fan oven function and set the thermostat to its maximum temperature setting. It is perfectly normal for a smell to be produced during this process. You should make sure that any windows in the room are left open during this process. -
Page 12: Setting The Clock
Setting the clock After the oven is power connected, the numbers on the timer display will flash. Press Manual button “M” (symbol 12) for 3 seconds; the oven enters into standby ﹒ mode, and Time adjustment symbol (symbol 9) is flashing. Use Plus button “... -
Page 13: Selecting An Oven Function And Temperature
Selecting an oven function and temperature After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash. Before you can select a cooking function or set a temperature, you must set the appliance into “manual operation” mode. To select manual operation mode, press the manual button (12) on the control panel for 3 seconds The oven function selector knob should be used to select the... - Page 14 FAN GRILL: The grill element at the top of the oven cavity produces a browning effect, while the fan helps to distribute the hot air. FAN & LOWER ELEMENT: Heat comes from the concealed lower element. The fan helps to distribute the air evenly around the oven cavity. FAN BAKE: Heat comes from elements in the top and bottom of the oven cavity while the fan helps to distribute air evenly.
- Page 15 Warnings o Keep the oven door closed when using any of the grill functions. o Do not use aluminum foil to cover the grill pan or heat items wrapped in aluminum foil under the grill. The high reflectivity of the foil could potentially damage the grill element.
-
Page 16: Using The Timer
Using the timer After you select the function and temperature, the oven will be working. You can use the timer to control the working period of the oven. 1) Minute minder The minute minder function is a countdown time that can be set on the oven programmer/timer. - Page 17 This function will allow you to set a countdown time similar to the minute minder function, however the oven will switch off at the end of the cooking time. Press Manual button “M” (symbol 12) two times. The Automatic function symbol “AUTO”...
- Page 18 3) Cooking end time This function is similar to the semi-automatic function, however instead of setting a countdown time, you select the time at which you want the oven to be turned off. Press Manual button “M” (symbol 12) three times. The Automatic function symbol “AUTO”...
- Page 19 the moment. The display will show “00:03” (it is equal to 1 minute plus clock time plus the period you set.). Use Plus button “ (symbol 11) and Minus button +” (symbol 11) to set a time (Assume you set “00:13”). After choosing the correct “...
- Page 20 Press the plus (11) button and you will hear an audible signal. This is the audible signal which is currently set. IMPORTANT: The oven timer must not be in any form of countdown mode and the oven in use symbol (8) must be lit.
-
Page 21: Cleaning And Maintenance
Cleaning and maintenance The oven should be cleaned after every use. When cleaning the oven the lighting should be switched on to enable you to see the surfaces better. The oven chamber should only be washed with warm water and a small amount of washing-up liquid. - Page 22 Replacement of the oven light bulb In order to avoid the possibility of an electric shock ensure that the appliance is switched off before replacing the bulb. Remove all oven shelves, the drip tray and the side rack that is on the same side as the oven light.
- Page 23 Removal of the internal glass panel Press the bracket latch on two sides that is in the corner at the top of the door. Take out the glass from the second blocking mechanism and remove. After cleaning, insert and block the glass panel, and push the blocking mechanism. Regular inspections Besides keeping the cooker clean, you should: Carry out periodic inspections of the control elements and cooking units of the cooker.
-
Page 24: Troubleshooting
Troubleshooting The oven isn’t coming on. Check that the oven is in manual operation mode. Check that you have selected a cooking function and a cooking temperature. There appears to be no power to the oven and grill. ... - Page 25 The oven light is not working Refer to page 24 and follow the “ Replacing the oven bulb ” section. I am getting condensation in my oven. Steam and condensation is a natural by product of cooking any food with high water content, such as frozen food, chicken etc.
-
Page 26: Cooking Guidelines
Cooking guidelines Please refer to the information given on food packaging for guidance on cooking temperatures and times. Once familiar with the performance of your appliance, temperatures and times can be varied to suit personal preference. If you are using the fan oven function, then you should follow the information given on the food packaging for this particular mode of cooking. - Page 27 Fan forced Food Weight Preheat Tray Position Temperature Finished Time Beef 10 mins 2nd floor 200℃ 40-50mins Pork 1 kg 10 mins 2nd floor 200℃ 70-80mins Chicken 1.2 kg 10 mins 2nd floor 200℃ 50-60mins Duck 1.5 kg 10 mins 2nd floor 200℃...
- Page 28 Grill Food Weight Preheat Tray Position Temperature Finished Time Beef 0.8kg 10 mins floor 250℃ 20-25 mins Pork 0.8 kg 10 mins floor 250℃ 25-30 mins Chicken 1.2 kg 10 mins floor 250℃ 40-45 mins Banger 0.6 kg 10 mins 4th floor 250℃...
-
Page 29: Technical Information
Technical information Specifications Power rating 3.5kW Voltage rating 220-240V~ 50Hz/60Hz Oven dimensions H595 x W595 x D575 mm Usable capacity of the oven 70 litres Energy rating Where to find your model number and serial number Your appliance has a data plate that provides identifying information that is important to know when registering your purchase online and for service. - Page 31 Imported by Applico Ltd. Private Bag 92900 Onehunga, Auckland 1061, New Zealand Website www.classique.co.nz...
