ADTEK UC1 Manual

Universal converter
Hide thumbs Also See for UC1:

Advertisement

Quick Links

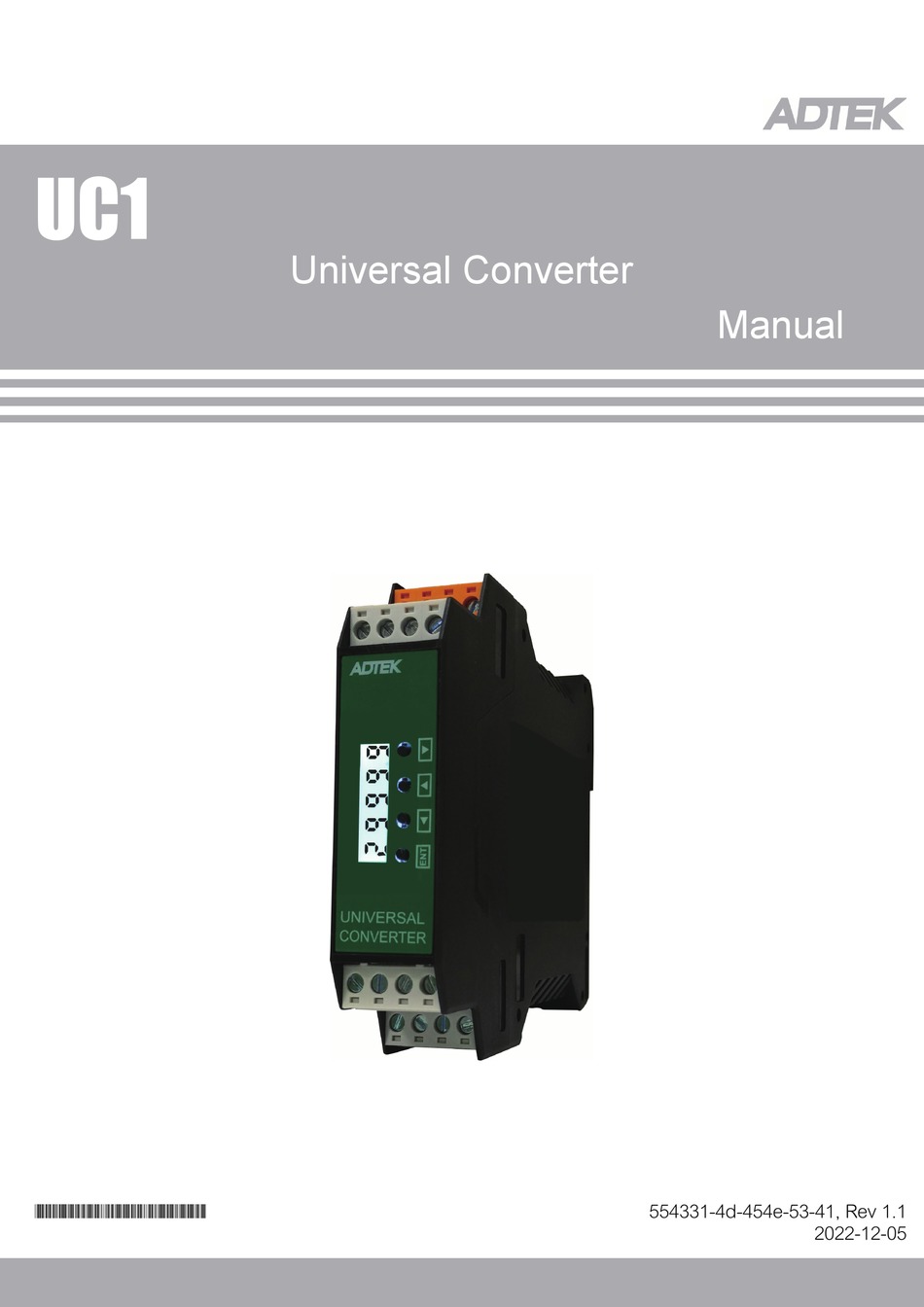

UC1
Universal Converter
Manual
554331-4d-454e-53-41, Rev 1.1
*554331-4d-454e-53-41*
2022-12-05

Advertisement

loading
Need help?

Need help?

Do you have a question about the UC1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADTEK UC1

  • Page 1 Universal Converter Manual 554331-4d-454e-53-41, Rev 1.1 *554331-4d-454e-53-41* 2022-12-05...
  • Page 2: Top Panel

    Programmable unit without need of hardware modifi cation or jumper wire/ Dip-Switch. UC1 off er 3 kind of output option, analogue output or Relay *2 or RS485(Modbus RTU). With universal input range and diff erent output function, it help reduce product inventory. Parameters can be easily set via button on site or by software provided through communication port.
  • Page 3: Connection Diagram

    █ Connection Diagram █ Operation Key ◄ ▲ ▼ Operating Key : Shift / Up key / Down key / Enter In Programming Level, the screen will return to Measuring Page after 2 minutes idle, or press for 1 ◄ second.
  • Page 4 █ Manual For Setting Startup screen description and entry parameter setting description a0-20 Power ver1.0 → → → 8.8.8.8.8 → → Display value Input Model Version Self check ↓ ▼ ← ← ← fold input pcode Correct → ▲ B-[Compensation] A-[Input] Default:1000 Password...
  • Page 5 A-[Input]Parameters ▼ ▼ ▼ A-01 A-02 A-03 A-04 → → → hi.sc input ai.typ pv.dp lo.sc → ← ← ← Type Decimal Low scale High scale ▲ ▲ ▲ A-[Input group] V0-10/V0-5/V1-5/ 0/0.0/0.00/ -19999~30000 -19999~30000 A0-10/A0-20/A4-20/ 0.000/0.0000 PT100/TC-K/TC-J/ TC-E/TC-T/TC-N/ ↑ ↓...
  • Page 6 C-[Analogue output] basic ↑ ▼ ▼ ▼ C-01 C-02 C-03 C-04 → → → → ao.typ ao.ls ao.hs prog ← ← ← C-[Analogue output] Analogue Output low Output high ▲ ▲ ▲ output range scale scale advnc V0-10/V0-5/ -19999~30000 -19999~30000 V1-5/A0-10/ A0-20/A4-20 ↑...
  • Page 7 E-[Optional Relay function] ↑ ▼ ▼ ▼ E-01 E-02 E-03 E-04 → → → relay → ry.sb ry.sd ry1.md ry2.md ← ← ← E-[Relay] Start band Delay time R1 mode R2 mode ▲ ▲ ▲ 0~9999 0~9:59.9 OFF/LO/HI/ OFF/LO/HI/ LO.HLD/ LO.HLD/ HI.HLD HI.HLD...
  • Page 8 █ Address Table(Address in Hexadecimal) Input Group Read/ Name Address Range Explain Initial Note Write 0x0000 Present value Type 0: 0-10V 1: 0-5V 2: 1-5V 3: 0-10mA 4: 0-20mA 5: 4-20mA AI.TYP 0x0001 0~15 6: PT100 7: TC-K 8: TC-J 9: TC-E 10: TC-T 11: TC-N 12: TC-R 13: TC-S 14: TC-B 15: 100mV...
  • Page 9 Relay Group Read/ Name Address Range Explain Initial Note Write ST_BAND 0x0014 0~9999 Start band ST_DELAY 0x0015 0~5999 Delay on (x0.1s) RELAY1_SP 0x0016 -19999~30000 First relay action function 10000 First relay action mode RELAY1_MODE 0x0017 0: OFF 1: LO 2: HI 3: LO.HOLD 4: HI.HOLD RELAY1_HY 0x0018...
  • Page 10 RS-485 Group Read/ Name Address Range Explain Initial Note Write ADRES 0x0032 1~247 Address Baud rate BAUD 0x0033 0: 1200 1: 2400 2: 4800 3: 9600 4: 19200 5: 38400 Pararity PRITY 0x0034 0: N,8,1 1: N,8,2 2: O,8,1 3: E,8,1...
  • Page 11 Compensation Group Read/ Name Address Range Explain Initial Note Write Compensation setting ON/OFF FOLD.EN 0x0041 0: OFF 1: ON Reset all compensation value to 0 FOLD.RST 0x0043 0: NO 1: YES FOLD.IN1 0x0044 0~30000 1st input value FOLD.IN2 0x0045 0~30000 2nd input value FOLD.IN3 0x0046...
