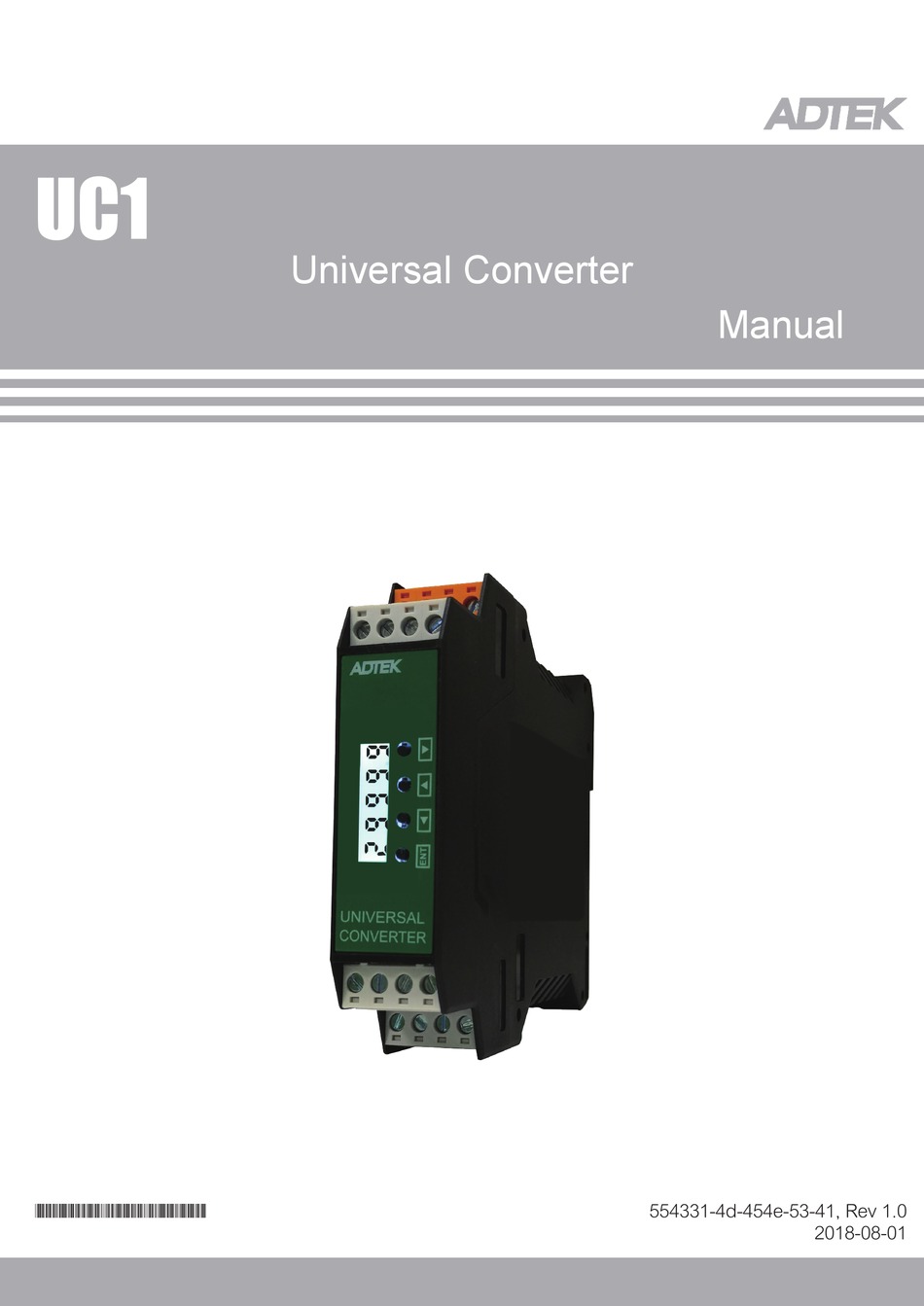

- Page 1 Universal Converter Manual 554331-4d-454e-53-41, Rev 1.0 *554331-4d-454e-53-41* 2018-08-01...
- Page 2 UC1 Manual UC1 is a universal input converter or isolator which include input signal 0(4)~20mA, 0~10V, Thermocouple, RTD, etc. Base on measuring signal needed, parameters can be set via panel button with LCD display. Programmable unit without need of hardware modification or jumper wire/ Dip-Switch.
- Page 3 █ Connection Diagram █ Operation Key ◄ ▲ ▼ Operating Key ： Shift / Up key / Down key / Enter In Programming Level, the screen will return to Measuring Page after 2 minutes idle, or press for 1 ◄ second.
- Page 4 █ Manual For Setting Startup screen description and entry parameter setting description Power → → a0-20 → → → ver1.0 8.8.8.8.8 Display value Input Model Version Self check ↓ ▼ ← ← Correct ← pcode input → ▲ B-[Analogue output] A-[Input] Default:1000 Password...
- Page 5 A-[Input]Parameters ▼ ▼ ▼ A-01 A-02 A-03 A-04 → → → hi.sc input → ai.typ pv.dp lo.sc ← ← ← Type Decimal Low scale High scale ▲ ▲ ▲ A-[Input group] V0-10/V0-5/V1-5/ 0/0.0/0.00/ -19999~30000 -19999~30000 A0-10/A0-20/A4-20/ 0.000/0.0000 PT100/TC-K/TC-J/ TC-E/TC-T/TC-N/ ↑ ↓...
- Page 6 C-[Optional 2nd Analogue output] basic ↑ ▼ ▼ ▼ ▼ C-01 C-02 C-03 C-04 → → → → a2.typ a2.ls a2.hs prog ← ← ← C-[2nd Analogue Type Output low Output high ▲ ▲ ▲ Range scale scale output] advnc V0-10/V0-5/ -19999~30000 -19999~30000...
- Page 7 E-[Optional RS485 function] ▼ ▼ E-01 E-02 E-03 → → → rs485 adres baud prity ← ← E-[RS485] Address Baud rate Pararity ▲ ▲ 1~247 1200/2400/4800/ N.STB.1/ 9600/19200/38400 N.STB.2/ ↑ ODD/EVEN █ Address Table(Address in Hexadecimal) Input Group Read/ Name Address Range Explain...
- Page 8 Annex 1 LO_SC HI_SC PT100 -200 -200 1350 -200 1200 -200 1000 -200 -200 1300 1700 1750 1800 Analogue output Read/ Name Address Range Explain Initial Note Write Analogue output range AO.TYP 0024 0: 0-10V 1: 0-5V 2: 1-5V 3: 0-10mA 4: 0-20mA 5: 4-20mA AO.LS 0025 -19999~30000 Output low scale...
