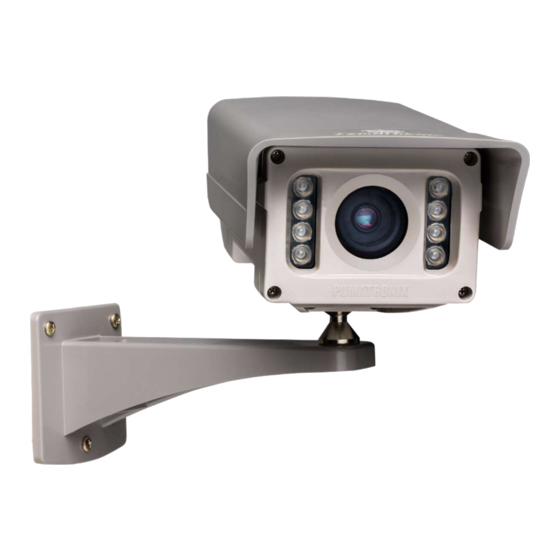

Summary of Contents for PUMATRONIX ITSCAM VIGIA+
- Page 2 Information contained in this document is subject to change without notice. Pumatronix reserves the right to modify or improve this material without obligation to notify changes or improvements. Pumatronix grants permission to download and print this document, provided that the electronic or physical copy of this document contains the entire text.
- Page 3 Examples of these technologies are the Intelligent Transport Systems (ITS), in which Pumatronix products are used, such as the ITSCAM VIGIA+ line. The devices of this line capture images of vehicles for traffic...
- Page 4 LEDs. It is also not recommended to use any optical instrument to look directly at the LEDs. If malfunctions occur, send the product to Pumatronix Technical Assistance. www.pumatronix.com...
- Page 5 *L1 lens (3.3-10mm) is only valid for S01, S04 and S07. L6 lens is only applicable to the model with the S08 sensor. **ITSCAM VIGIA+ devices with S01 and S04 sensors allow 24Vdc or PoE power. Devices with S07 and S08 sensors accept 12Vdc, 24Vdc, or PoE power. www.pumatronix.com...
-
Page 6: Table Of Contents
Image Capture Architecture ............................. 22 Virtual Trigger..................................23 Motion Detector ....................................23 Multiple Exposures ................................24 Majority Vote ..................................25 Day or Night Operation Mode ............................25 Licensing ............................ 26 Initial Setting ..........................26 Installation Prerequisites..............................26 Positioning of ITSCAM VIGIA+ ................................. 26 www.pumatronix.com... - Page 7 Care and Maintenance ......................29 Firmware Update ................................29 Update of ITSCAM VIGIA+ through Web Interface ........................30 Update of ITSCAM VIGIA+ with Pumatronix Software (ITSUPDATE) ..................30 Preventive Maintenance ..............................31 General Conditions of the Warranty ..................31 Situations in which the Product Loses the Warranty ....................31 Privacy Policy ..................................
-
Page 8: Knowing The Product
The focal length varies according to the lens used and refers to the distance between the optical center of a lens and the plane of focus, measured in mm (millimeters), with the angle of view being more “open” for smaller values. www.pumatronix.com... -
Page 9: Inputs And Outputs
The internal rate of images capture of ITSCAM VIGIA+ is constant, with the value corresponding to the resolution of the sensor, which has the following speeds ordered by rate: Table 2 – ITSCAM VIGIA+ acquisition rates Resolution Internal acquisition rate 752x480 px 60fps 640x480 px 54fps 1280x960 px 24fps 1280x800 px 20fps www.pumatronix.com... -
Page 10: Transmitted Image Format
ITSCAMPRO concentrates the images and plates sent by ITSCAM VIGIA+, allowing visualization and generation of different types of reports (please consult Pumatronix for more information about the application) The Real Time Streaming server can receive the images captured by ITSCAM VIGIA+ through the... -
Page 11: Generated Information
Generally, the real resolution of analog images is 640x240 pixels, while ITSCAM VIGIA+ provides all resolutions shown in the chart. This difference in the number of pixels is sensitive not only to the human eye but also to automatic license plate reading (LPR) algorithms, as illustrated: www.pumatronix.com... -
Page 12: Jpeg Comments
0xFF 0xFE: Comments in text format The file is always formatted such that, for example, 0xFFDA only appears once in the file (to indicate the beginning of the image compressed data). Therefore, Pumatronix uses the image comments tag to store Comments Image Comments generated metadata of each capture. -
Page 13: Automatic Recognition Of Plates
Brazilian and Mercosur license plates from images using a software library. For OCR processing of vehicle license plates from countries other than Brazil, contact Pumatronix Technical Support. For a better recognition index, it is recommended to adjust the equipment to capture the license plate of the vehicles in the images center and with the height of the letters and numbers of 20 pixels when the resolution is up to 752x480 px and 25 pixels for higher resolutions, of 1280x800 px to 1280x960px. -
Page 14: Send Via Rs-232 Compatible With Wiegand 26
, the file must have only 2 columns, and all values must contain only alphanumeric characters (between 'A' to 'Z' and '0' to '9', except the first line), without spaces and be separated by commas. The rows must be in ascending order, using the plate as a www.pumatronix.com... -
Page 15: Vehicle Counter Function
In this illustration, ITSCAM VIGIA+ is installed under a footbridge that crosses the highway. Figure 4 - Installation of ITSCAM VIGIA+ to maximize the results of using the Vehicle Counter function Vehicle Counter function has its interface (Figure 5), available at www.pumatronix.com, in the Customer’s Area Technical Support >... -
Page 16: Mechanical Specifications
Figure 6 - Fixing the VIGIA+ Bracket: 1) VIGIA+ device tilt adjustment; 2) VIGIA+ Bracket; 3) Fixing points, using 3/16" screws; 4) Sliding Flap, adjusted in the framing Fastener Support o VIGIA+ together with the and 2 M4 Allen 3mm screws allow the equipment VIGIA+ Bracket to be fixed on the www.pumatronix.com... - Page 17 Figure 7 - VIGIA+ Fastener Assembly: 1) M4 Allen 3mm screws (2 units); 2) Support; 3) VIGIA+ cavity; 4) Fastener Interfaces: Figure 8 - Connections available on the device: 1) 12-way sleeve; 2) Ethernet Temperature: -10 a +60˚C; www.pumatronix.com...
-
Page 18: Sensitivity Of Sensors To Light
ITSCAM VIGIA+ has a high sensitivity to infrared light. Below are the Sensitivity X Wavelength graphs for the image sensors of the Monochrome and Day/Night versions, representing approximate values for all current sensor models. Reminding that in the color sensor, 50% of the pixels are green, 25% are red and www.pumatronix.com... -
Page 19: Electrical Specifications
The equipment has two cables in its structure, used for the connections: a 1.50m long, 12-way, 6.3mm gauge multi-way cable, which allows connecting the external power supply and accessing the I/O, and the Ethernet cable for external use with an RJ-45 connector, ultraviolet protection, according to the EIA/TIA- 568A standard. www.pumatronix.com... - Page 20 10 Black Input 2 - (IN 2-) 11 Orange Output 1+ (OUT 1+) 12 Yellow Output 1 - (OUT 1-) Unused wires must be left floating. The use of a terminal box to protect electrical and data connections is mandatory. www.pumatronix.com...
-
Page 21: Selection Of Output Signal State
As a result, the image is generated with the greatest amount of light provided by the illuminator, as illustrated by the graph of the intensity of the flash over time, after its activation, and the Delay in the exposure of the image sensor: www.pumatronix.com... -
Page 22: Ethernet Connection
Ethernet Connection ITSCAM VIGIA+ allows communication with other devices using the TCP/IP protocol over the Ethernet cable. For such connection, the equipment provides a Fast Ethernet port with an RJ45 connector, which follows the ANSI/TIA-568A standard in the connections: www.pumatronix.com... -
Page 23: Software Specifications
Embedded OCR disabled or not available: sends images continuously 8: Continuous OCR enabled: capture images continuously, but send only those with recognized plate www.pumatronix.com... -
Page 24: Virtual Trigger
It is recommended to use a region of interest to remove sidewalks and regions that are not part of the track. This region corresponds to a polygon with four vertices, which is drawn over the preview image generated by the device. www.pumatronix.com... -
Page 25: Multiple Exposures
Flash intensity always corresponding to a percentage of the initial shot. This option is available for Multiple the ITSLUX line of illuminators by Pumatronix, designed to deliver the best results with Exposures The exposure time of the image sensor (Shutter), generating images with variation in the amount of light captured;... -
Page 26: Majority Vote
Iris Shutter Gain ITSCAM VIGIA+, which still controls , and , but uses two different percentage criteria to switch between modes. After this change, we have two new variables (CGI commands – Common Gateway www.pumatronix.com... -
Page 27: Licensing
The ITSCAM VIGIA+ license includes the hardware of the image capture and processing device, in addition to the features presented in this manual. New features and bug fixes are made available in new firmware versions by Technical Support via the Pumatronix website. 8. Initial Setting... - Page 28 Figure 18 - Side View of the Installation The captured plate must present a maximum horizontal angle of 30° in relation to the side of the road: www.pumatronix.com...
-
Page 29: Settings For Ocr Plate Reading
Installation Site: In cases where it is not possible to meet installation specifications, it is recommended to consult Pumatronix’s Technical Support. Network Interface Parameterization If the application that uses ITSCAM VIGIA+ presents a network setting different from the equipment's factory default, it is recommended to change the network setting before installing it on the local network. -
Page 30: First Access
Technical Support on the Pumatronix website. The equipment update process requires an auxiliary device to connect to the equipment and can be done by specific update software available from Pumatronix, or directly through its web interface using one of the installed web browsers: ... -
Page 31: Update Of Itscam Vigia+ Through Web Interface
3) Request the firmware file by filling out the form available in the Technical Support menu at Pumatronix website: If you have any questions, please contact Technical Support via email at suporte@pumatronix.com. Update of ITSCAM VIGIA+ through Web Interface 4) Finalize o procedimento de atualização verificando a versão do firmware indicada na barra superior da página. -
Page 32: Preventive Maintenance
The replacement of defective parts and the performance of services resulting from this Warranty will only be carried out at the Authorized Technical Assistance of Pumatronix or a third party expressly indicated by it, where the product must be delivered for repair. -
Page 33: Privacy Policy
LGPD when used to capture personal data together with other equipment. Pumatronix is not responsible for the purposes, use, and treatment of the captured images, and the control of information and ways of operating the product is the exclusive decision of the user or purchaser of the product.
