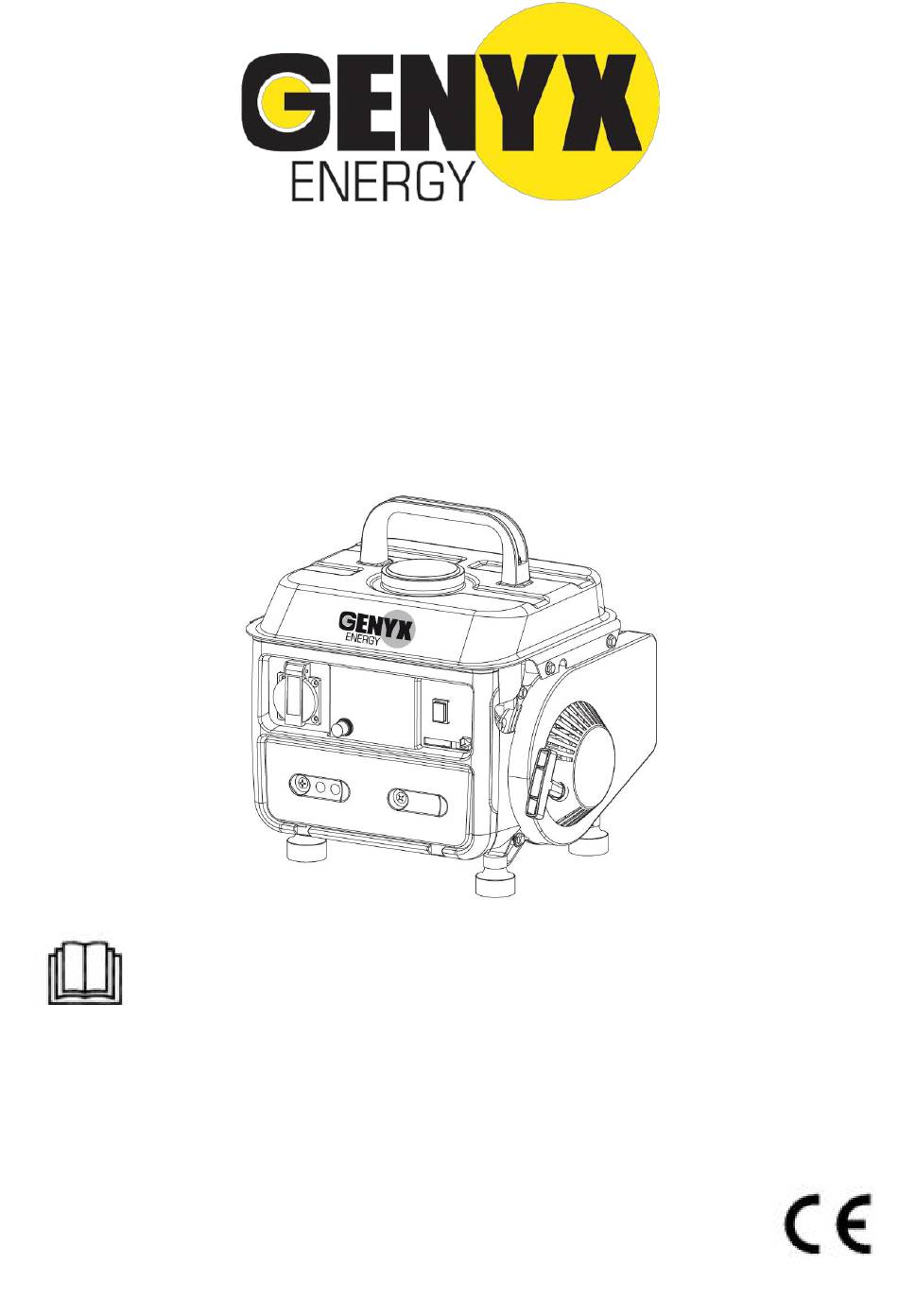

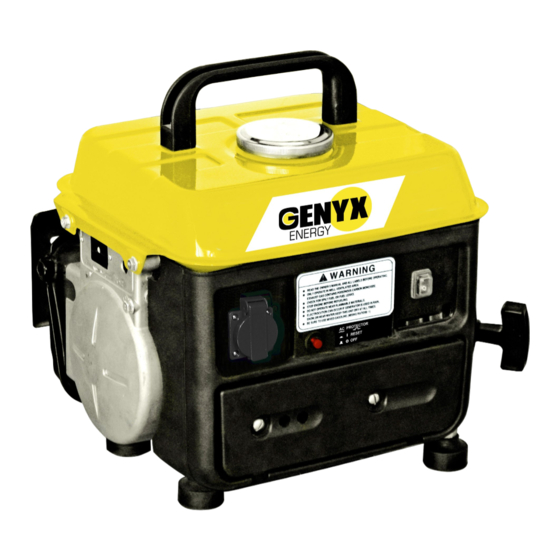

- Page 1 GASOLINE GENERATOR ORIGINAL INSTRUCTION MANUAL MODEL: G800-B1 WARNING! Please read all safety instructions and advises to lower the risk of injuries. BUILDER SAS ZI – 32, rue Aristide Bergès, 31270 Cugnaux, France...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION………………………………………..….3 1. SAFETY INSTRUCTION…………………………………..4 2. SYMBOL EXPLANATION…………………………………..12 3. COMPONENT IDENTIFICATION.........14 4. PRE-OPERATION CHECK...........15 5. STARTING THE ENGINE.............16 6. STOPPING THE ENGINE.............16 7. CONNECTION..............17 8. SAFETY DEVICES..............17 9. PERIODIC MAINTENANCE..........18 10. APPLICATLON RANGE............21 11. TROUBLE SHOOTLNG............21 12. SPECLCATLONS..............22 13. DECLARATION OF CONFORMITY........23 14. -
Page 3: Introduction
INTRODUCTION These are 2-stoke, single cylinder, air-cooled gasoline generator. It is a compact and portable power for recreation, emergency and home use, like light power, camping & travel power. This operation manual tells you how to operate and service your new gasoline generator. -
Page 4: Safety Instruction
1. SAFETY INSTRUCTION Warning: 1. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! 2. Children should be protected by keeping them at a safe distance from the generator set! 3. Refilling of the generating sets are not allowed during the operation! 4. - Page 5 The operator or the user are responsible for possible accidents or damage to other persons or to their property. Do not wear loose clothing or jewellery as this can get caught in the machinery as it runs. Use safety equipment. Wear protective gear such as an ...
- Page 6 Perform periodic maintenance and resolve problems that appear immediately. Do not run the generator before correcting any fault detected. The generator uses a system of air-cooling, and it is necessary to clean its components regularly, including the grilles, the cover of the fan and the fan itself so as to ensure cooling.
- Page 7 strong rubber protective layer (conforming to IEC 245-4) or a similar cable. If using an electrical extension cable, the total length of the extension must not exceed 60m when the section of the wire is 1.5mm and must not exceed 100m when the section of the wire is 2.5mm Additional requirements for low-power generating sets for use by laymen Protect children by keeping them at a safe distance from the...
- Page 8 require replacement, they should be replaced with a circuit breaker having identical ratings performances characteristics. Due to high mechanical stresses, only tough rubber-sheathed flexible cable (in accordance with IEC 60245-4) or the equivalent should be used. The user shall conform to regulations of electrical safety ...
- Page 9 If you swallow fuel by mistake, if you inhale fuel vapours or if you get drops of fuel in your eyes, see a doctor immediately. If a certain quantity of fuel is spilt on your skin or clothing, wash or change your clothes.
- Page 10 To avoid electric shock, you must follow the following instructions: Do not touch the generator with wet hands. Do not run the generator under rain or snow. Do not run the generator near water. Connect the generator to earth. Use a sufficiently thick ...
- Page 11 Before connecting electrical devices to the generator, make sure that their voltage specifications and frequency functioning correspond technical characteristics of the generator. There may be damage if the device connected is not designed to function with a voltage tolerance of +/- 10% or a frequency tolerance of +/- 3 % compared with those of the generator.
-
Page 12: Symbol Explanation
2. Symbol explanation Attention! Please read the manual carefully before using the unit! Conforms to relevant safety standards Do not dispose of old appliances with domestic rubbish . Guaranteed sound power level No naked flames Ground connection It is forbidden to run the generator in an enclosed room because exhaust emissions can lead humans or animals to coma to death. - Page 13 Keep away from the machine Exhaust emissions are harmful to health of body No naked fire near the machine! Do not connect with the electricity system. Danger ! Electrical shock ! No smoking when refueling...
-
Page 14: Component Identification
3. COMPONENT IDENTIFICATION Diagram for the position of the generator's centre of gravity, the position indicated by the arrow is adjusted to the lifting position. Handle AC /DC protector Engine On/off switch Fuel tank Recoil start Fuel tank cap Feet Nameplate AC Socket... -
Page 15: Pre-Operation Check
4. PRE-OPERATION CHECK Fuel tank capacity : 3.5L Use oil-mixed petrol Do not make fuel reach the top of fuel filter. How to make mixed petrol : Petrol and oil mixing Ratio: 50:1 Use fuel tank cap to measure as : 1.(L):0.02L 2.(L):0.04L 3.(L):0.06L... -
Page 16: Starting The Engine
5. STARTING THE ENGINE Before starting , DO NOT connect with any electric apparatus . 1.Turn fuel cock to “ON”position. 2.Turn choke lever to “CLOSE”. 3.Turn engine switch to “ON”. 4.Pull slowly on recoil starter until engaged,then pull it briskly. 5.Turn choke lever to “OPEN”. -
Page 17: Connection
1.Turn engine switch to “STOP”. 2.Turn fuel cock to “OFF”position. 7. CONNECTION 1) Wind lead 2 or 3 turns around the handle . 2) Start engine. 3) Plug into AC socket. 8. SAFETY DEVICES Press to reset AC or DC protector. Reduce load under... -
Page 18: Periodic Maintenance
9. PERIODIC MAINTENANCE Every Every 150hrs 50hrs Or ITEM REMARKS Every Every 3 months month Remove carbon, Spark Adjust gap. ● plug Replace if necessary. CLEAN. Air filter ● Replace if necessary CLEAN. Fuel filter ● Replace if necessary CLEAN. Carbon Replace related... - Page 19 ● AIR FILTER 1) Air filter 2) Wash in solvent 3) Engine oil (SEA#20) 4) Squeeze out Never run engine without the filter element.
- Page 20 ● FUEL FILTER 1) .Stop engine. 2) Turn fuel lever to “OFF”. 3) .Clean with solvent. 4).Clean in solvent. 5).Wipe off. 6).Insert.
-
Page 21: Applicatlon Range
10. APPLICATLON RANGE Appliance Power factor 50Hz ~650W 50Hz ~480W 0.7~0.8 50Hz ~570W 0.7~0.95 11. TROUBLE SHOOTLNG ENGINE WON’T START 1.Check fuel (Fuel switch to”ON”) 2.Engine witch to”ON” 3.Check spark plug If engine still won’t start,check the following: 1.Fuel cock clogging 2.Air filter clogging Or consult with your dealer... -
Page 22: Speclcatlons
12. SPECLCATLONS Model G800-B1 Dimension 372x320x364 (L×W×H)(mm) Degree of protection IP23M Generator Net weight 15kg Sound power level =86.78dB(A), K=3dB(A) sound pressure level =66.78dB(A) Guaranteed sound 92dB(A) power level Model CS0.65 / AS0.65-1 Type Brushless AC Output (COP) 0.65kW, 0.70kW max... -
Page 23: Declaration Of Conformity
BUILDER SAS ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declare that this machine: Low power generating set Model: G800-B1 Serial number: 20210765154-20210765887 Is in conformity with the directive « machine » 2006/42/CE and to regulations transposing it... -
Page 24: Warranty
14. WA R R A N T Y WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 25: Product Failure
15. P R O D U C T FA I L U R E WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 26: Warranty Exclusions
16. WA R R A N T Y E X C L U S I O N S THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. •...
