LEGRAND 067292 Installation

Touch Screen
Description
Touch Screen is a device that enables controlling the MY HOME and Lighting
Management functions, by means of simple and intuitive icons displayed on a 3.5"
touch screen LCD display.
The device can be used to manage the automation, lights, temperature control, sound
system, burglar-alarm, energy management, and scenario functions.
For each application, it is possible to manage up to 20 actuations (for example 20
actuators, 20 amplifiers, etc.).
Technical data
Power supply from SCS BUS:
Operating power supply with SCS BUS: 18 – 27 Vdc 18 – 27 Vdc
Absorption:
Operating temperature:
Dimensional data
Size: 3+3 flush mounted module
Installation
Touch Screen can be installed very easily on the wall using a box and integrates
perfectly with any domestic room thanks to its compatibility with all cover plates of the
Axolute, Living and Màtix civil series.
27 Vdc
80 mA
0 – 40 °C
Touch screen
MQ00699-b-EN
067292 H4890
078479 573958
1

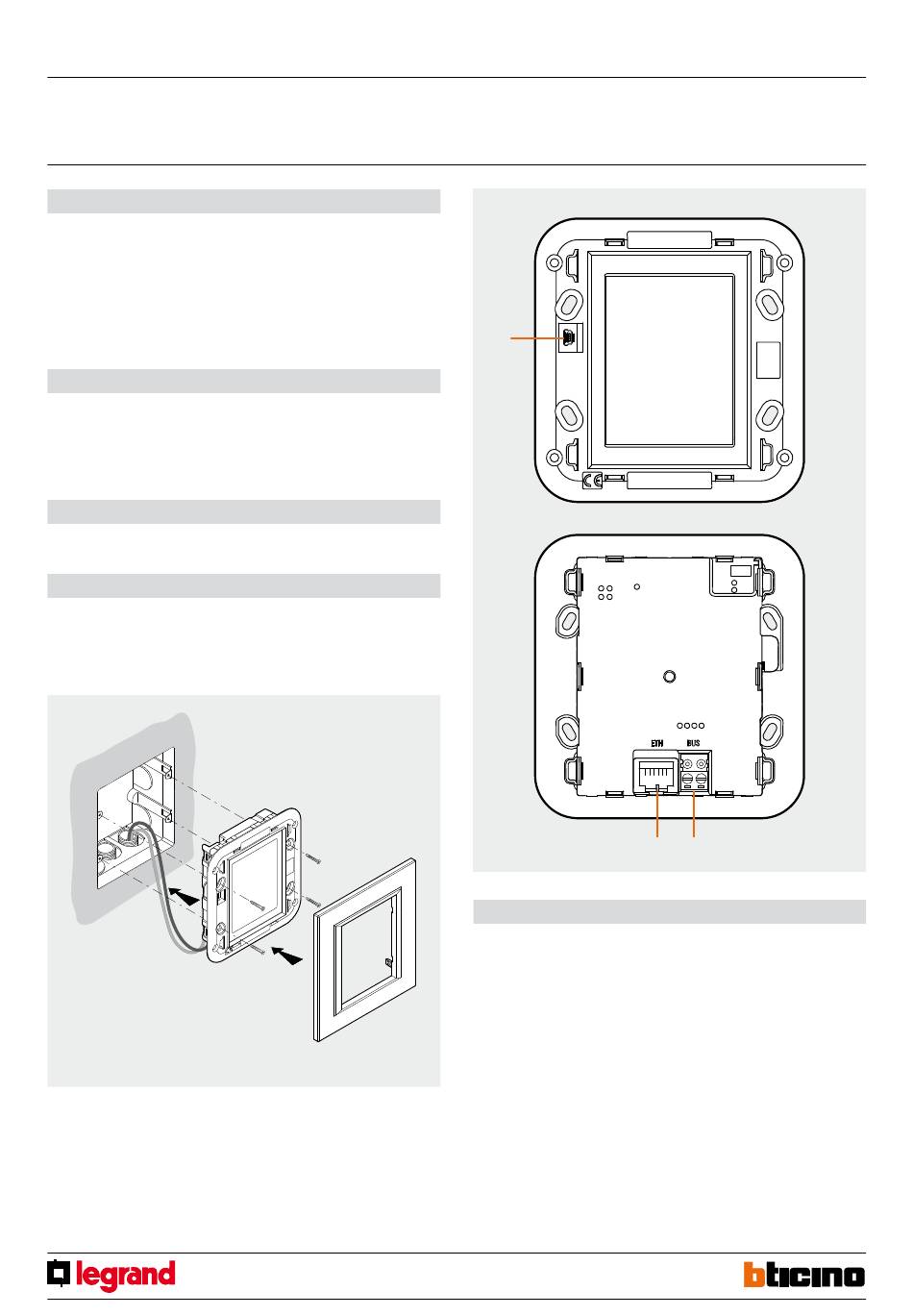

Legend
USB connector for programming and firmware update
1.
RJ45 Ethernet connector
2.
Clamp for SCS BUS connection
3.
17/04/2014
LN4890 LN4890A
HW4890 AM5890
2 3
1
