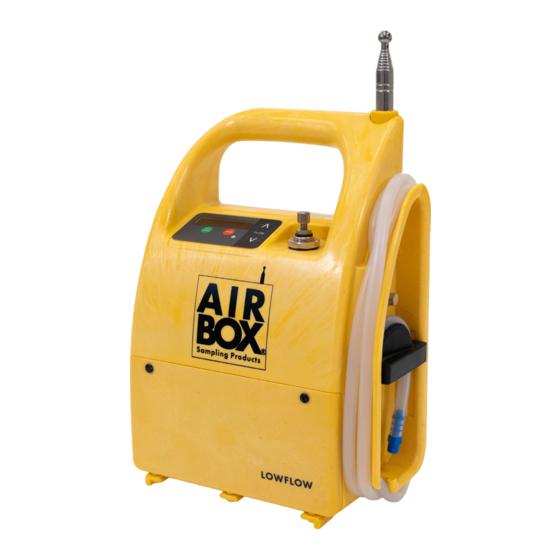

LOWFLOW
User Manual
Specifications:- (tested with 8.0µm MCE filter)
Flow Range: Adjustable 2 -10 l/min
Battery Pack: Battery for Variflow/V8/Lowflow - Lead acid 12V
9Ah Recharge
Charge Time: 6-8 hours Max
Continuous duration: 8+ Hours @ 8 l/min
Display: LED, elapsed run time and battery indicator
Material: HF ABS
Waterproof: IP65
Dimensions: H38cm x W24cm x D12cm
Mast extends: (Up to 2 meters)
Weight: 4.6kg
Issue 1
220222
Advertisement
Table of Contents
Related Manuals for Airbox Sampling Products LOWFLOW
Summary of Contents for Airbox Sampling Products LOWFLOW

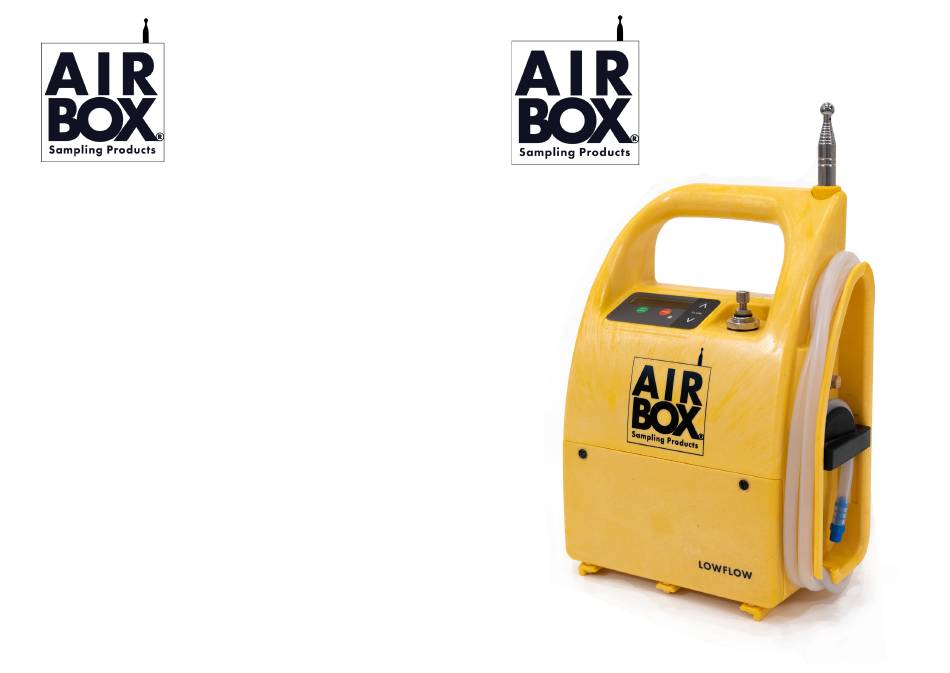

- Page 1 LOWFLOW User Manual Specifications:- (tested with 8.0µm MCE filter) Flow Range: Adjustable 2 -10 l/min Battery Pack: Battery for Variflow/V8/Lowflow - Lead acid 12V 9Ah Recharge Charge Time: 6-8 hours Max Continuous duration: 8+ Hours @ 8 l/min Display: LED, elapsed run time and battery indicator...
- Page 2 Airbox Sampling Products , Technology Centre, Easting Close, Worthing, West Sussex BN14 8HQ Thank you for choosing this Airbox product. To ensure that you get the best possible use from it, please read this manual carefully. Airbox Sampling Products is part of the FermionX Group...
- Page 3 2. Setting the flowrate 1. Setting up and using the LOWFLOW pump Before you use the LOWFLOW pump make sure it is fully charged. A battery level indicator shows the available power when the unit is first switched on. 2.1 - Setting the flowrate between 5-8L/min CAUTION: REDUCE FLOW RATE BY DIGITAL DISPLAY TO 5L/MIN BEFORE USING THE 1.1 Charging the battery...
- Page 4 2. Setting the flowrate 2.3 Setting test mode (cont) start/pause Press the display will show ‘Set test mode’. 2.1.5 Press up/down arrows to adjust flow rate. (Fig.6) Press arrows to select ‘Free Running’ or ‘Timed test’. (A single press advances the display by one increment, holding while pressing advances the display by 10 increments).
- Page 5 The LOWFLOW pump has been specifically designed to make replacing the battery a quick The casing of the LOWFLOW pump is made from a hard wearing ABS structural foam, and easy task. Simply undo the two screws on the front of the battery housing, pull off the making it incredibly rugged and also very easy to clean.
- Page 6 3.4 Servicing & Warranty 5. Parts The LOWFLOW pump is covered by our exclusive warranty and in the event that the unit fails we will undertake the repair free of charge for up to 2 years from the date of purchase. The...
