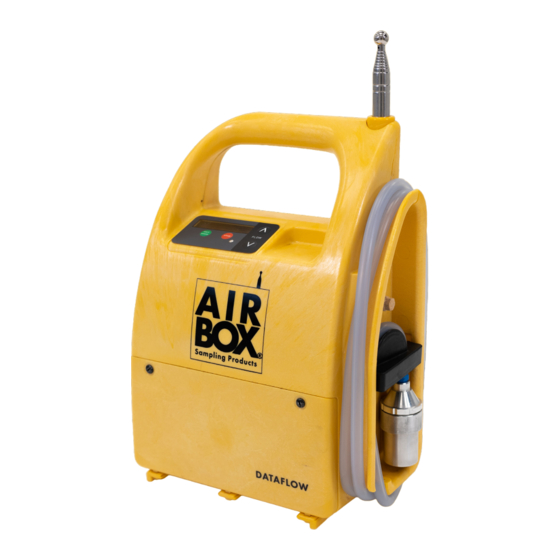

DATAFLOW
User Manual
Specifications:- (tested with 0.8µm MCE filter)
Flow Range: Adjustable 5-10 l/min
Flow Stability: < 3% +/-
Battery Pack: 12.8V Lifepo4 12Ah Lithium
Charge Time: 6 hours
Duration: 12+ Hours @ 8l/min
Material: HF ABS
Waterproof: IP65
Dimensions: H38cm x W24cm x D12cm
Mast extends to: Up to 2.0 meters
Weight: 3kg
Issue 1
220628

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DATAFLOW and is the answer not in the manual?

Questions and answers

Related Manuals for Airbox Sampling Products DATAFLOW

Summary of Contents for Airbox Sampling Products DATAFLOW

  • Page 1 DATAFLOW User Manual Specifications:- (tested with 0.8µm MCE filter) Flow Range: Adjustable 5-10 l/min Flow Stability: < 3% +/- Battery Pack: 12.8V Lifepo4 12Ah Lithium Charge Time: 6 hours Duration: 12+ Hours @ 8l/min Material: HF ABS Waterproof: IP65 Dimensions: H38cm x W24cm x D12cm Mast extends to: Up to 2.0 meters...

  • Page 2: Table Of Contents

    2.2 Dataflow setup ..........................5 3. Presetting jobs on the Dataflow ...............6 3.1 Connecting the unit to the computer..............6 3.2 Set up test data on Airbox Dataflow Application..........6 4. Selecting and entering jobs on the Dataflow...........7 4.1 Selecting a previously saved job....................8 Warranty Registration 4.2 Manually entering a job........................

  • Page 3: Installing The Airbox Dataflow Software

    Exit Firstly download both files (setup.exe & Dataflow Installer.msi) 1.4 Airbox Dataflow Application when connected to the pump Once downloaded, run the setup.exe file. You will be taken to the Welcome to the Dataflow Setup Wizard window. Click Next. Setup...

  • Page 4: Preparing The Dataflow Pump For Use

    2. PREPARING THE DATAFLOW PUMP FOR USE 3. PRESETTING JOBS ON THE DATAFLOW The best way to use the DATAFLOW is to preset the jobs onto the pump before it is taken Before you use the DATAFLOW pump make sure it is fully charged.

  • Page 5: Selecting And Entering Jobs On The Dataflow

    Once all required fields are completed click on the Tick 4.2 Manually entering a job The window will close and the job will now be stored on the Dataflow pump. NOTE: You can set up multiple jobs. To manually enter a new job, with Enter showing on the display, press start/pause.

  • Page 6: Timed Test

    4.5 Running Test (cont) 4.2.2 Timed Test start/pause Use the arrows to choose YES/NO/DELAY. Press to choose option. With Select Test Mode Timed Test showing in the display, press start/pause. The display will now show the default flow rate of 08.0 litres/min. start/pause If DELAY is chosen, use the arrow keys to change the values and the scroll across the numbers.

  • Page 7: Downloading Data From The Dataflow

    7. CONFIGURE UNIT STORAGE 8.3 Cleaning the unit The DATAFLOW can store a large number of jobs in it’s memory. The application interface will show how much memory has been used and is left. The casing of the DATAFLOW pump is made from a hard wearing ABS structural foam, making it incredibly rugged and also very easy to clean.

  • Page 8: Service And Warranty

    9. SERVICE AND WARRANTY 11. PARTS The DATAFLOW pump is covered by our exclusive warranty and in the event that the unit fails we will undertake the repair free of charge for up to 2 years from the date of...
