User Instructions
Switch tip alignment
1. Place Lase-Align onto rail head aligning the relevant datum line (90mm or 255mm) with bearer one (toe) stock rail bolt. The
integral magnets will hold the Lase-Align in place against the field stock rail face.
2. Switch on the laser.
3. Place Small Target 039/127031 on opposing rail with the relevant datum line with bearer one (toe) stock rail bolt.
4. Adjust Lase-Align on rail head until red laser dot shows on the opposing Small Target
indicating the point exactly opposite.
Correct positioning of Drill holes
Fix Lase Align Unit over first hole centre line. Turn on laser and the red dot will indicate exactly where on the opposite rail
hole should be drilled. Mark rail accordingly.
+44 (0) 141 552 5591
enquiries@maximpower.co.uk
40 Couper St, Glasgow, G4 0DL

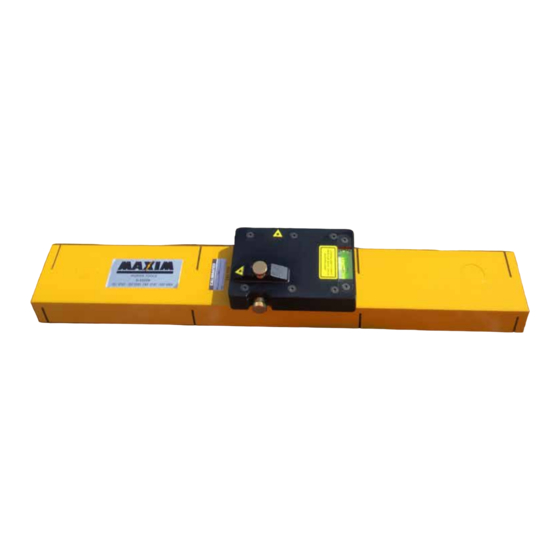

Lase-Align Kit
Rail Alignment Gauge
www.maximpower.co.uk
Applications
Applications
Advertisement
Table of Contents
Related Manuals for Maxim Lase-Align Kit
Summary of Contents for Maxim Lase-Align Kit

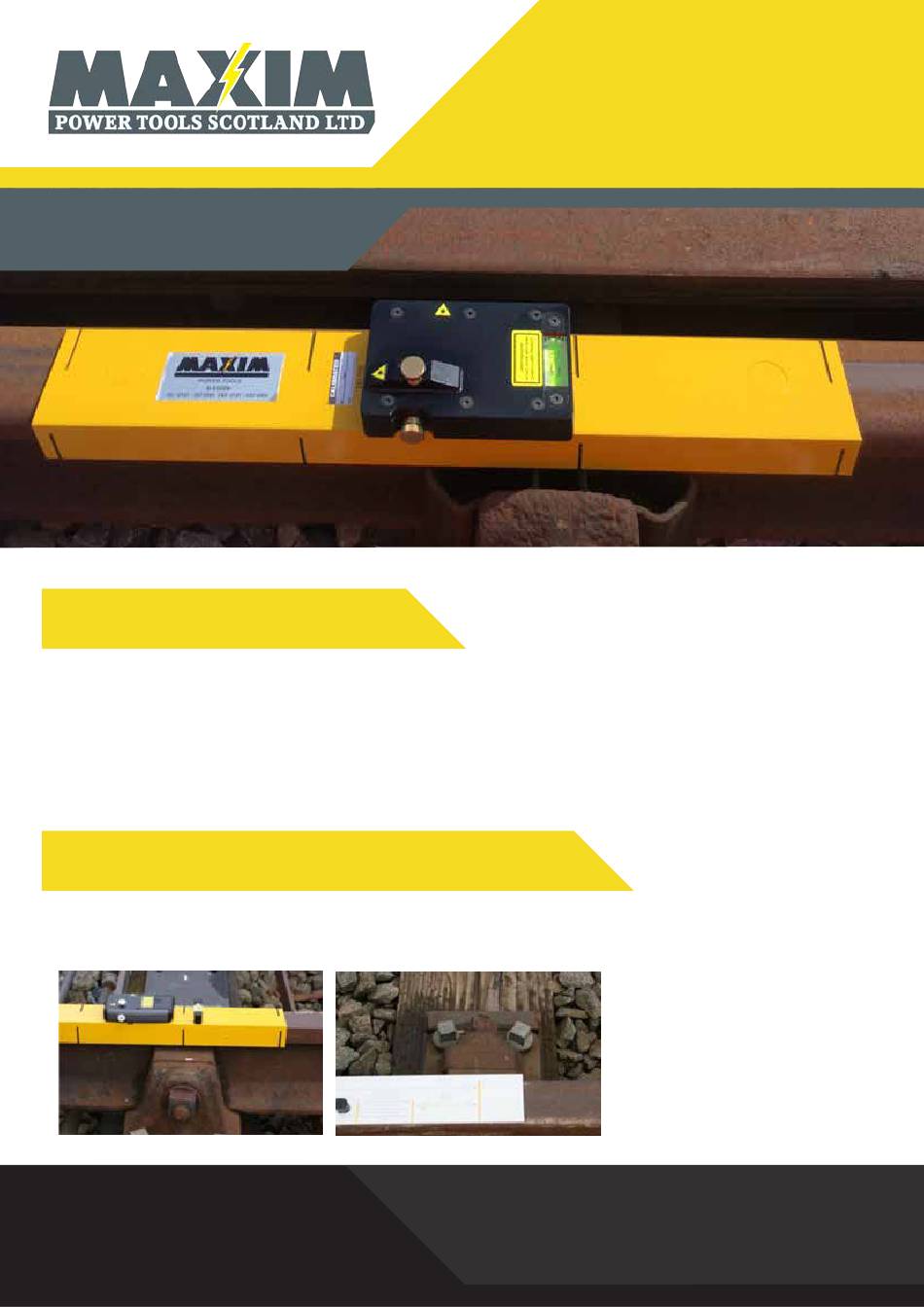

- Page 1 Lase-Align Kit Rail Alignment Gauge User Instructions Switch tip alignment Applications 1. Place Lase-Align onto rail head aligning the relevant datum line (90mm or 255mm) with bearer one (toe) stock rail bolt. The integral magnets will hold the Lase-Align in place against the field stock rail face.
- Page 2 Adjustment of Switches Applications Place Lase-Align on track with the datum in line with adjustment switch tip. Place Small Target over opposite switch tip Applications Crossing Nose Alignment Measure nose to nose measurement from the switching in accordance with NR/L2/TRK/2049 and mark the rail head using Small Target 039/127031.
- Page 3 ALWAYS switch off the lasers when not in use ALWAYS return the gauge to its protective case when not in use Part Numbers Lase-Align Kit 039 / 127033 Lase-Align 039 / 127030 Small Target 039 / 127031...
