STEP 5
Quick
Assembly
Tip
LOCK
13
1
×12
×6
Proper orientation of CAM LOCK

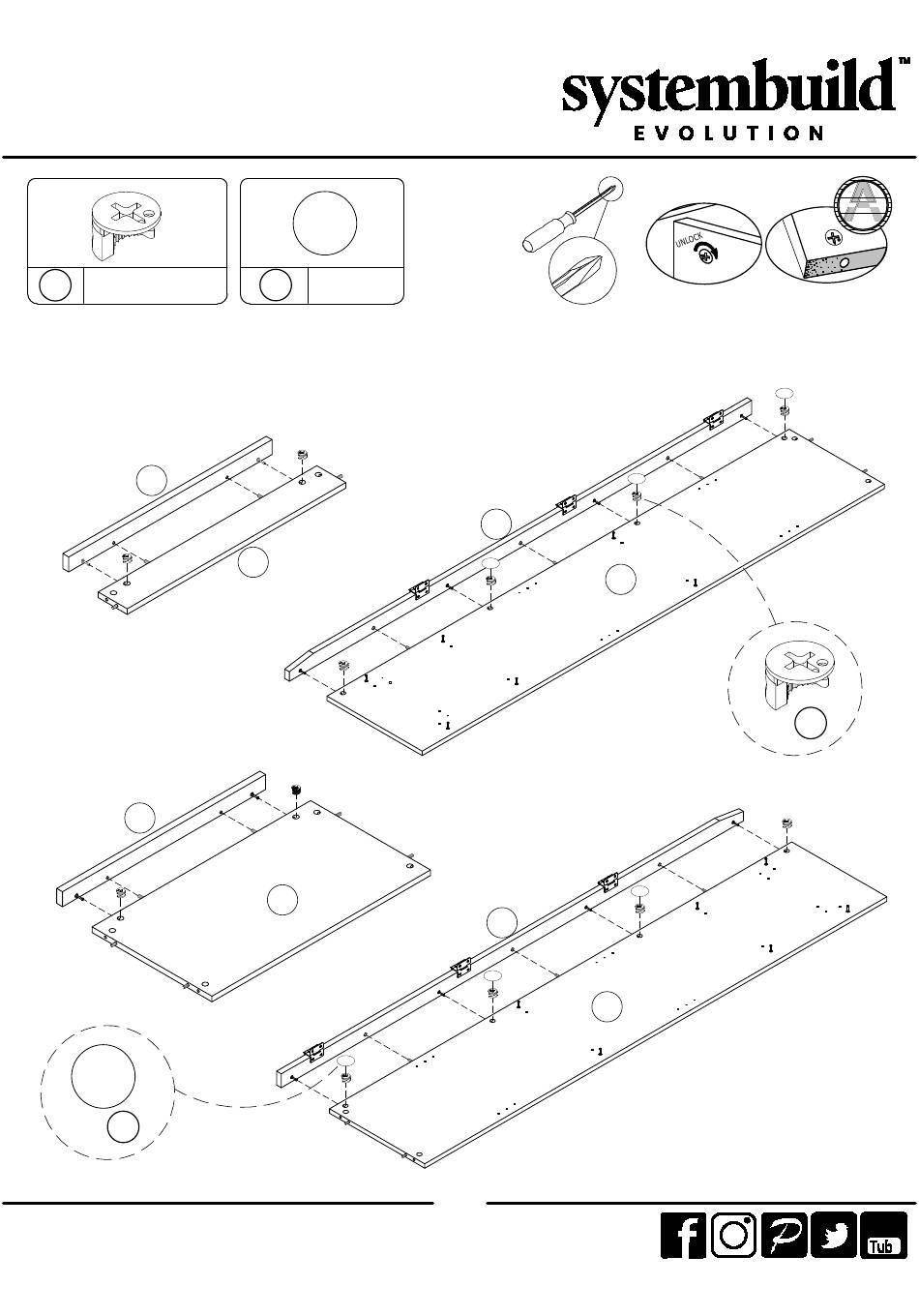

5.1 Attach (O) to (B) with (1) as illustrated.
5.2 Attach (P) to (C) with (1) as illustrated.
5.3 Attach (G) to (F) & (R) with (1) as illustrated.
G
O
R
B
1
G
F
P
C
13
11
