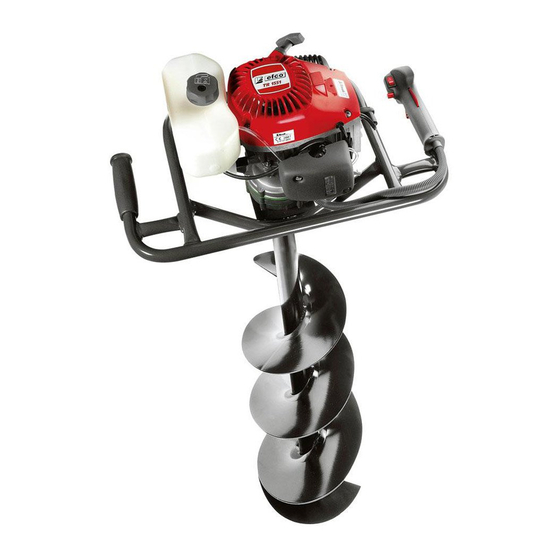

Summary of Contents for Efco TR 1551

  • Page 1 TR 1551 ( 3.06 cu.in ) OPERATOR’S INSTRUCTION MANUAL MANUEL D’UTILISATION ET D’ENTRETIEN MANUAL DE INSTRUCCIONES...
  • Page 2 INTRODUCTION To correctly use the earth auger and prevent accidents, do not start work without having first carefully read this manual. You will find explanations concerning the operation of the various parts plus instructions for necessary checks and relative maintenance. Note: Illustrations and specifications in this manual may vary according to Country requirements and are subject to change without notice by the manufacturer.
  • Page 3: Table Of Contents

    TR 1551 ........
  • Page 4: Product Identification

    PRODUCT IDENTIFICATION Earth Auger Components 11 - Idle Speed Screw 1 - Starter Handle 12 - Air Filter Cover 2 - On/Off Switch 13 - Half Throttle Lock 3 - Throttle Trigger 14 - Throttle Trigger Lockout 4 - Grease Cap 15 - Spark Plug 5 - Bit Stop Pin 16 - Choke Lever...
  • Page 5: Safety

    SAFETY Understanding Safety Labels - This symbol indicates Warning, and Caution. - Your manual contains special messages to bring attention to potential safety concerns, machine damage as well as helpful operating and servicing information. PLEASE READ ALL THE INFORMATION CAREFULLY TO AVOID INJURY AND MACHINE DAMAGE.
  • Page 6 SAFETY WARNING: Exposure to vibrations through prolonged use of gasoline powered hand tools could cause blood vessel or nerve damage in the fingers, hands, and wrists of people prone to circulation disorders or abnormal swellings. Prolonged use in cold weather has been linked to blood vessel damage in otherwise healthy people.
  • Page 7: Safety Rules

    SAFETY RULES Basic Safety Precautions • Read this manual carefully until you completely understand and can follow all safety rules, precautions, and operating instructions before attempting to use the unit. • Restrict the use of your earth auger to adult users who understand and can follow safety rules, precautions, and operating instructions found in this manual.
  • Page 8: Fuel Handling

    SAFETY RULES Fuel Handling WARNING: Gasoline is an extremely flammable fuel. Use extreme caution when handling gasoline or fuel mix. Do not smoke or bring any fire or flame near the fuel or the earth auger (Fig.7). • To reduce the risk of fire and burn injury, handle fuel with care.
  • Page 9 SAFETY RULES • Do not operate earth auger from a ladder. Always cut from a firm-footed and safe position. • Do not work near electric cables. WARNING – Contact with electrical cables or wires can cause serious injury or death as a result of electrical shock (Fig.12).
  • Page 10: Precautions To Reduce Vibration Risk

    SAFETY RULES Precautions to Reduce Vibration Risk • Wear gloves and keep your hands warm. • Keep the bit sharp and the earth auger, well maintained. A dull bit will increase cutting time, will increase the vibrations transmitted to your hands. •...
  • Page 11: Assembly

    ASSEMBLY Lubricant for reduction gearbox (Fig.13) WARNING! - The earth auger is supplied with TAMOIL TAMLITH GREASE 2 (150 g) grease in the reduction gearbox. Remove the screw (A) under the reduction gearbox and check for the presence of grease. Fitting bits (Fig.14-15) Fit the reduction shaft (B) into the seat on the bit (D) and secure it using the appropriate gudgeon pin (C).
  • Page 12: Operation

    Engine Oil, which is specifically formulated for all Efco air-cooled two-stroke engines. The correct oil / fuel proportions shown in the table below are suitable when using the Efco Two Cycle Engine Oil or an equivalent high-quality engine oil (JASO specification FD or ISO specification L-EGD).
  • Page 13: Preparation For Working

    OPERATION Filling the Tank (Fig.22) WARNING: Follow safety instruction for fuel handling. Always shut off engine before fueling. Never add fuel to a machine with a running or hot engine. Move at least 10 feet (3m) from refueling site before starting engine (Fig.21).
  • Page 14: Starting The Engine

    OPERATION WARNING – You should hold your earth auger firmly to control sudden jolts and reactive forces. Be prepared to release the throttle completely if the forces become too great. If reactive forces are not controlled, rotation of the handles may result in severe jerking and loss of control and may cause the handle frame to strike you or throw you to the ground.
  • Page 15: Breaking-In The Engine

    OPERATION • Open the fuel tap (A, Fig.27). • Fill the carburetor by pushing primer bulb a couple of times (C, Fig.27). • Put the ON/OFF switch (B, Fig.28) in the "I" position. • Put the choke lever (F, Fig.29) in the CLOSE position. •...
  • Page 16: Stopping The Engine

    OPERATION Difficult Starting (or starting a flooded engine) The engine may be flooded with too much fuel if it has not started after 10 pulls. Flooded engines can be cleared of excess fuel by following the warm engine starting procedure listed below. Ensure the ON/STOP switch is in the ON position.
  • Page 17: Working Techniques

    OPERATION Working Techniques General Working Instructions WARNING: Do not work during periods of high wind or heavy precipitation. WARNING: Never work, when visibility is poor or in very high temperatures. WARNING: Long-term exposure to noise can result in permanent hearing impairment. So always use approved hearing protection.
  • Page 18 OPERATION • If any foreign object is hit or if high vibrations occur stop the machine immediately. Disconnect the HT lead from the spark plug. Check that the machine is not damaged. Repair any damage. • If anything jams in the bits while you are working, switch off the engine and wait until it has stopped completely before cleaning the bits.
  • Page 19: Maintenance

    MAINTENANCE Maintenance Chart Please note that the following maintenance intervals apply for normal operating conditions only. If your daily work requires longer than normal or harsh cutting conditions are present the suggested intervals should be shortened accordingly. Complete Machine Inspect (Leaks, Cracks, and Wear) Clean Controls (Ignition Switch, Choke Lever, Throttle Check Operation...
  • Page 20: Carburetor Adjustment

    MAINTENANCE Carburetor Adjustment Before adjusting the carburetor, clean the starter cover vents as shown in Illustration Fig.37, and air filter as shown in Illustration Fig.38, refer to Operation-Starting Unit and Maintenance-Air Filter Sections for details. Allow the engine to warm up prior to carburetor adjustment.
  • Page 21: Air Filter

    MAINTENANCE Air Filter WARNING: Do not clean filter in gasoline or other flammable solvent to avoid creating a fire hazard or producing harmful evaporative emissions. Open air filter cover (A, Fig.38) and check the air filter (G) each day; shake the filter. Reinstall the air filter. Close the air filter cover.
  • Page 22: Muffler

    MAINTENANCE Use only resistor type spark plugs of the approved range. Factors such as: - too much oil in fuel mix; - dirty air filter; - unfavourable running conditions, e.g. operating at part load; may result in rapid deterioration of the spark plug. Muffler Free the engine and silencer of twigs, leaves and excess lubricant to prevent the risk of fire.
  • Page 23: Troubleshooting

    TROUBLESHOOTING Using Troubleshooting Chart WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. When you have checked all the possible causes listed and you are still experiencing the problem, see your Servicing Dealer.
  • Page 24: Storage

    (called gasohol or E10 or using ethanol, methanol) can attract moisture which leads to fuel mixture separation and formation of acids during storage. Acidic gas can damage the engine. TECHNICAL DATA TR 1551 ENGINE: Displacement: 3.06 cu. in (50.2 cc)
