- Page 1 ASTRA MACHINERY PLANT AB • ANNO 1929 HEATING BOILERS Astra G-100E INSTALLATION AND OPERATION MANUAL CONTACT INFORMATION OF THE FACTORY: MACHINERY PLANT “ASTRA” AB ULONŲ G. 33, LT-62161 ALYTUS, LITHUANIA TEL.: +370 315 75449 FAX: +370 315 52265 E-MAIL: INFO@ASTRA.LT...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY REQUIREMENTS .................. 3 2. TECHNICAL DESCRIPTION ................4 • General View of the Boiler ........................4 • Technical Data of the Boiler ......................... 5 • Ceramic Elements of the Boiler ......................6 • Turbulence Plates ..........................6 3. -
Page 3: Safety Requirements
INSTALLATION AND OPERATION MANUAL 1. SAFETY REQUIREMENTS 1.1. The room where the boiler is to be installed should be ventilated. 1.2. Free inflow of air into the room should be ensured. 1.3. The boiler flue connection with the chimney should be tight. Do not heat up the boiler with leaking flue connections! 1.4. -
Page 4: Technical Description

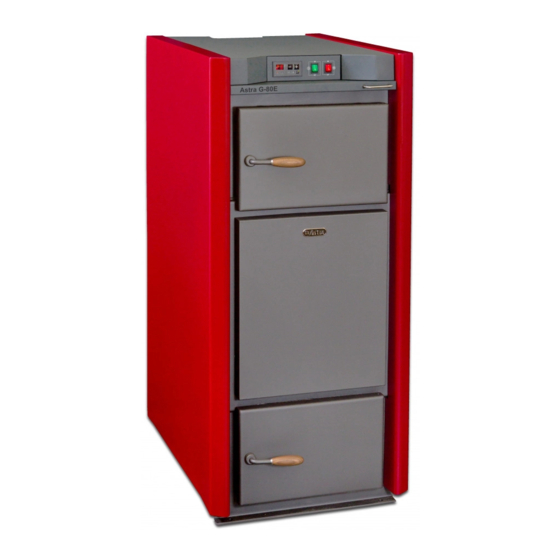

HEATING BOILERS: Astra G-100E 2. TECHNICAL DESCRIPTION • GENERAL VIEW OF THE BOILER G1 1/2" G3/4" G1 1/2" G1/2" Fig. 1 General view of the boiler A – front view; B – rear view; C – top view; D - section. -
Page 5: Technical Data Of The Boiler
INSTALLATION AND OPERATION MANUAL • TECHNICAL DATA OF THE BOILER Indicator value Name of indicator Astra G-100E Nominal heat output, kW Class of boiler according to EN 303-5 Class of protection against electric impact Efficiency rate,% 81-89 Power of emergency cooling system, kW Water volume in the boiler, l Setting range of the temperature regulator, °C... -
Page 6: Ceramic Elements Of The Boiler
• TURBULENCE PLATES 1, 2. Ceramic burner; 3. Ceramic chopper. Turbulence plates – a technology invented and patented by “Astra” engineers, used for capturing more heat from the hot exhaust smoke. It forces the exhaust smoke to hold, become turbulent and thus transfer more heat to the adjacent heat exchanger. -
Page 7: Intended Use
INSTALLATION AND OPERATION MANUAL 3. INTENDED USE The heating boiler is designed for the heating of residential and public buildings, manufacturing shops and other buildings where a closed heating system has been installed. Control and regulation devices are installed in the boiler, which automatically maintain the set water temperature, ensure economically efficient usage of the boiler and safe operation. -
Page 8: Description Of The Emergency Cooling System Diagram
HEATING BOILERS: Astra G-100E accumulate the excessive heat. If the boiler is operated without the accumulation tank, its lifetime can be shortened because, in such a case, a relatively low temperature of the outflowing water is maintained in the boiler (65-70°C). Therefore, the temperature of the water returning to the boiler from the heating system is as low as 55-60°C. - Page 9 INSTALLATION AND OPERATION MANUAL Fig. 5 Principle scheme of the house heating system including heat accumulation...
-
Page 10: Requirements For Connection Of The Boiler To The Heating System
Technical characteristics Type of boiler Pressure relief valve Connection diam. does not exceed ¾”, set opening pressure 3 bar Astra G-100E Thermometer-manometer Range of temperature 0-120°C, pressure 0 – 4.0 bar All boilers There must be no ball valves installed between the boiler and the pressure relief valve. -
Page 11: Connection Of The Circulation Pump
INSTALLATION AND OPERATION MANUAL Protect the isolation of the mains cable against damage. • CONNECTION OF THE CIRCULATION PUMP 220 V KR-5 Fig. 6 Circuit diagram of the boiler S1 - power supply switch; S2 – ventilator switch; SK – emergency ventilator shutdown 95°C thermostat; F - fuse; M - ventilator; J - socket of a circulation pump of the heating system;... -
Page 12: Controlling The Temperature Of Water Returning To The Boiler
HEATING BOILERS: Astra G-100E Unpack the ventilator, screw its case on at the ventilator installation bed 10 (Fig. 1) using the existing bolts and check the stiffness of the connection. The ventilator cable has already been connected during fabrication. • CONTROLLING THE... -
Page 13: Installation Of The Boiler Room
INSTALLATION AND OPERATION MANUAL • INSTALLATION OF THE BOILER ROOM Heating output, kW Difference of water temperatures The boiler room should be ventilated. The required air Δt, °C Water flow, l/min inflow necessary for combustion should be also ensured. For this purpose, boiler room doors should have ventilation grating or there should be a sufficient gap between the doors and the floor. -
Page 14: Fuel
HEATING BOILERS: Astra G-100E should correspond to the referred value of draught in the table “Technical data”. The liner should be factory made. Minimum permissible height of the chimney should be at least 7 m. The top of the chimney should be above the ridge at least by 0.5m. If the chimney is further from the ridge than 1m, the angle horizon- the ridge- the cap of the chimney should consist 10°... -
Page 15: Operation
INSTALLATION AND OPERATION MANUAL Firing the boiler with coal, rubber or plastics is prohibited. However, loading wood briquettes into the boiler together with their plastic packaging bags is allowed. 7. OPERATION START • FRONT CONTROL PANEL The front control panel has an electronic boiler regulator 1, a green button for switching voltage to the boiler on/off 2 and a red button for switching on the ventilator 3. - Page 16 HEATING BOILERS: Astra G-100E The electric fuse is designated to protect the elements of the electric circuit in case the current in the mains exceeds 2 A. If the fuse is damaged, the boiler will not switch on and its indicator lamps will not light. In this case, remove and replace the fuse.
-
Page 17: Controller Kr-5
INSTALLATION AND OPERATION MANUAL respectively (see “Programming of the controller KR– KR-5 Rear panel of the regulator 5”). Lamp 5 “Pump on” lights up when the controller switches on the central heating (CH) pump. The CH pump can be turned on in two ways: 1) at once, together with the electrical supply of the boiler, 2) when the boiler water exceeds some temperature, for example 60°C. -
Page 18: Indication Of Temperature Of A Dhw Boiler, Smoke Temperature And Rotations Of A Ventilator
HEATING BOILERS: Astra G-100E • INDICATION OF TEMPERATURE OF A DHW BOILER, SMOKE TEMPERATURE AND ROTATIONS OF A VENTILATOR When in a normal operation mode, shortly (up to 3 sec) press the button “P”. The symbol ” will appear on a screen. -
Page 19: Preparation For Firing
INSTALLATION AND OPERATION MANUAL • the measured water temperature in the DHW boiler is lower than turn off temperature (P05); • the water temperature in the boiler must be at least 5 °C degrees higher than in the DHW boiler. If one of the above mentioned prerequisites ceases to exist, the DHW pump is turned off. -
Page 20: Fire Bed And Tips For Effective Boiler Stoking
HEATING BOILERS: Astra G-100E Switch on the voltage, using button 2 on the front control panel. The boiler water temperature indicator will light up on the electronic regulator (Fig. 9). Set the required outflowing boiler water temperature using the temperature setting buttons; we recommend a temperature of at least 75°C or –... -
Page 21: Regulation Of The Boiler Temperature
INSTALLATION AND OPERATION MANUAL shutter 9 (Fig. 1). The supply of air is fully blocked when the shutter are pushed to the end. On the contrary, when the shutters are pulled out, the supply of air is maximal. Shaft of the shutter is secured with fixing bolt. A proportion of the primary air supply is set in a factory and in most cases does not require additional adjusting. -
Page 22: Cleaning The Boiler
• DESCRIPTION OF THE SMOKE TEMPERATURE SENSOR FUNCTION The smoke temperature sensor is mounted in Astra boilers in order to: 1) help the controller achieve the optimal smoke temperature, 2) turn off the ventilator after firing in the boiler is accomplished, 3) turn off the circulation pump after the firing in the boiler is over. -
Page 23: Emergency Shut Down Of The Boiler
INSTALLATION AND OPERATION MANUAL Control water pressure in the heating system at least once every two weeks. If the pressure drops, raise it by filling up the system with more water. If the boiler is not being heated for a longer time, drain the water out of the system when air temperature is below 0°C! •... -
Page 24: Error Indication
HEATING BOILERS: Astra G-100E 3. Ventilator is not Emergency thermostat has tripped, light of the Unsrew the thermostat 1 (Fig. 10) cover and press operating ventilator switch is off the button under it. It is absolutely required to define and remove the causes of tripping of this... -
Page 25: Warranty And Its Validity Terms
10. ACCEPTANCE CERTIFICATE The heating boiler Astra G- ......., serial No........,, conforms to the technical documentation and requirements of standard EN 303-5 and is approved as fit for operation. Manufacturing date 201 .................... -
Page 26: Selling Card
HEATING BOILERS: Astra G-100E SELLING CARD Boiler sold by: Company: ......................................Address: ......................................Telephone:......................................Date of sale: ......................................Signature: ......................................BOILER INSTALLATION PROTOCOL Boiler was installed by: Company (technician): ..................................Address: ......................................Telephone:......................................Installation date: ..................................Installation data: Height of the chimney: .................................. -
Page 27: Warranty And Post-Warranty Repair Card
DECLARATION OF CONFORMITY Manufacturer: Machinery plant “Astra” AB Address: Ulonu g. 33, 62161 Alytus, Lithuania Product designation: heating boilers Astra G-100E We declare that the above-mentioned products conform to the requirements of directives 97/23/EEC Article 2.3 and 2006/95 EEC. The following standards were applied for the above-mentioned products:...
